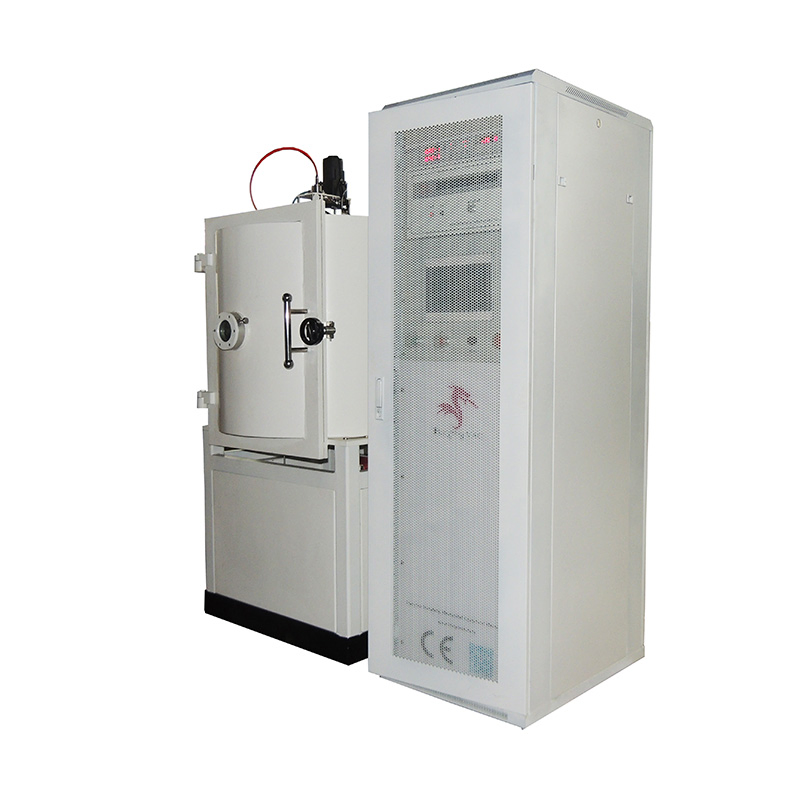

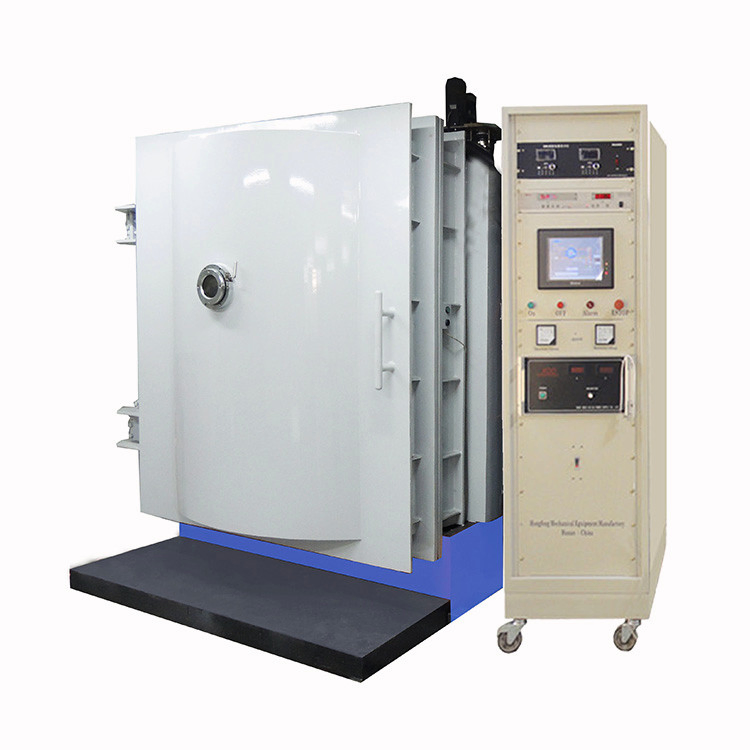

The equipment features a reasonable structure, providing uniform coating with high quality. It boasts rapid pumping speeds, short cycle times, high efficiency, and easy operation. With low energy consumption and stable performance, this system is widely utilized in the automotive, audio, electronic appliances, computer, watch, toy, and mobile phone industries, as well as for reflective cups and cosmetics.

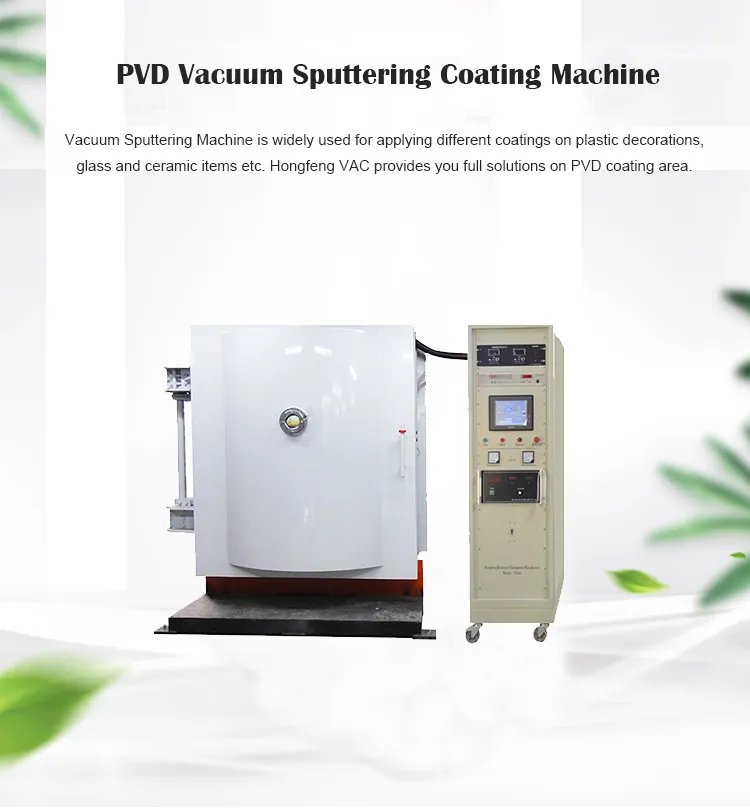

DC magnetron sputtering coating machines are standard for direct sputtering onto various substrates including plastics, glass, metal, and ceramics. Magnetic fields define the behavior and properties of ion-charged particles, and our advanced modeling software enhances productivity and reproducibility.
| Technical Specifications | ||||
|---|---|---|---|---|
| Model Number | SP-1000 | SP-1200 | SP-1400 | SP-1800 |
| Vacuum Chamber Dimension (D*H) | 1000*1100 | 1200*1400 | 1400*1600 | 1800*2000 |
| Chamber Material | Carbon steel, SUS304 or SUS316L | |||

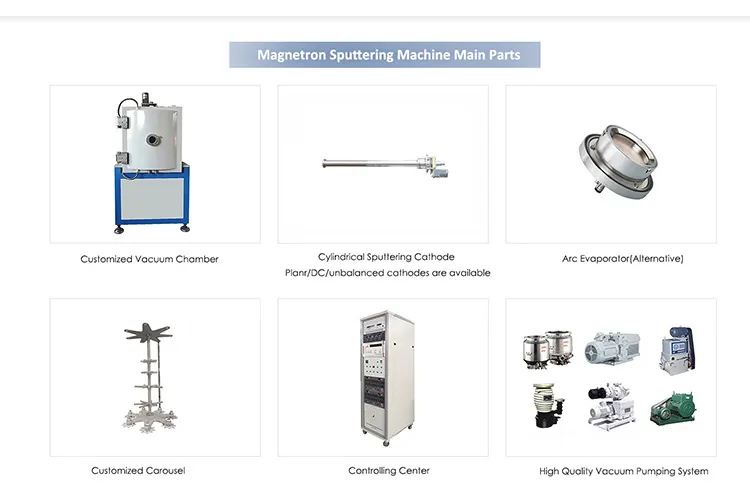

| Sputtering Cathodes | ≥1 sets, DC sputtering system, cylindrical or rectangle | |||

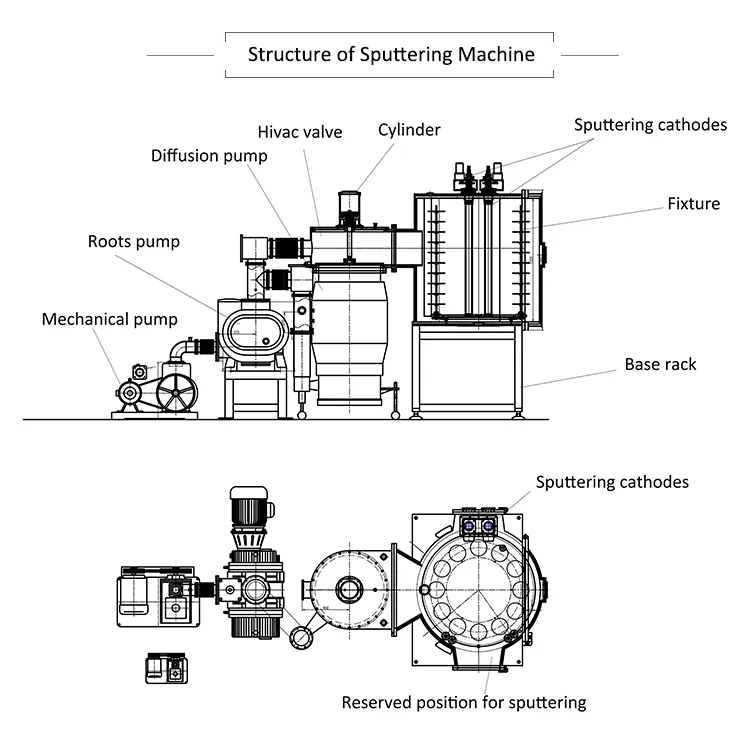

| Pumping System | Turbo molecular pumps or diffusion pump + mechanical pump | |||
| Pumping Time | Atmosphere to 5.0*10-2Pa < 8 minutes | |||
| Ultimate Vacuum | 5.0*10-4 Pa | |||
| Control Mode | Automatic or Manual via PLC touch screen | |||
