Weed Orthopedic Implants
1 / 5
| Product | Diameter × Length | Type | Details |
|---|---|---|---|

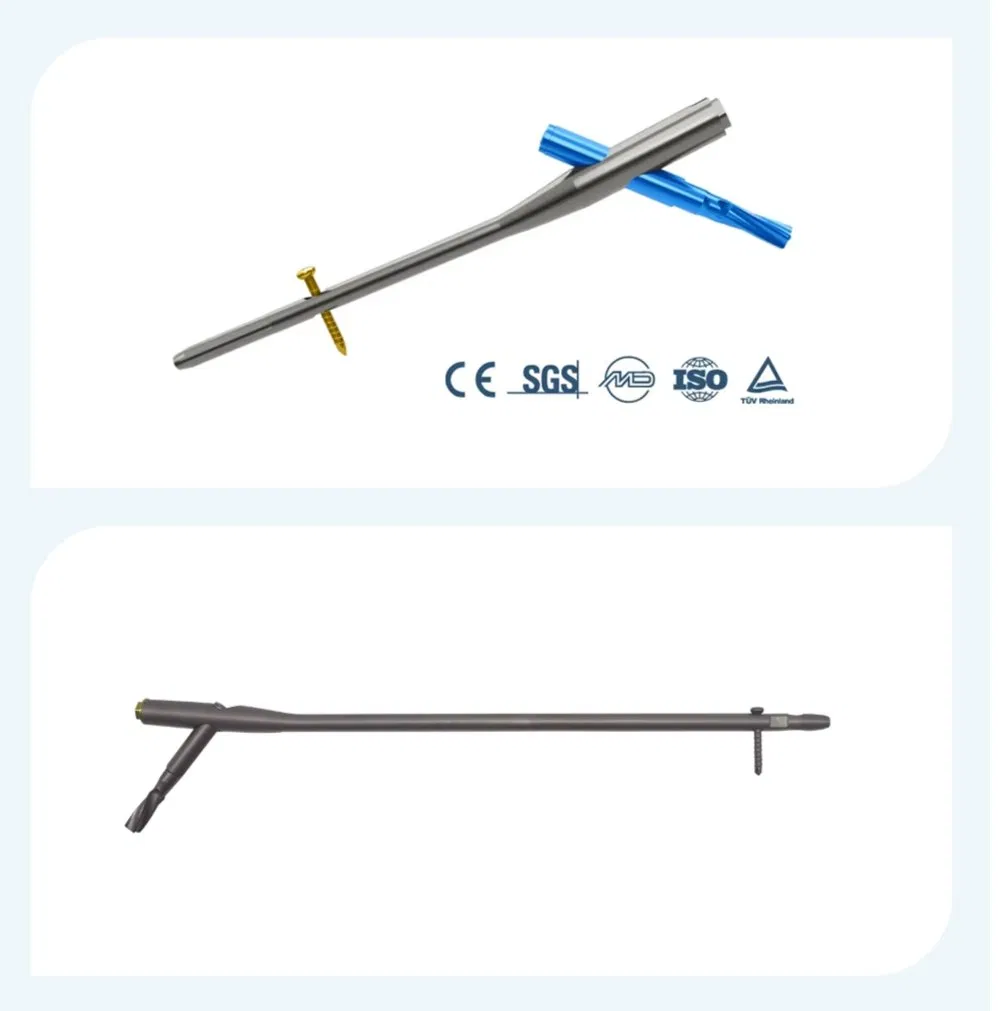

| PFNA Intramedullary Nail | Φ9 × 180 - 240 | Standard / Long | Various sizes available |
| Φ10 × 180 - 440 | Left (L) / Right (R) options | ||
| Φ11 × 180 - 440 | High precision CNC processed | ||
| Φ12 × 180 - 240 | Titanium Alloy | ||
| Blade Screw | Φ10.4 × 70 - 120 | Component | Increments of 5mm |

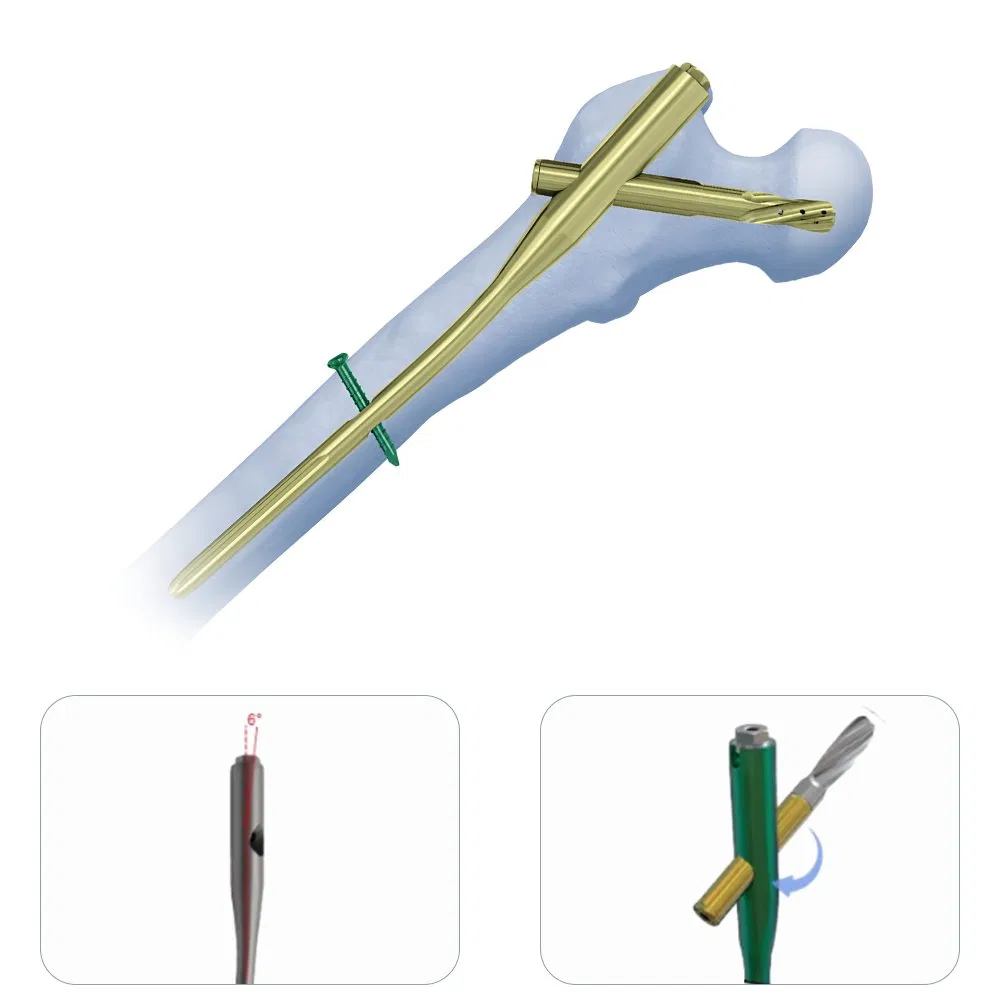

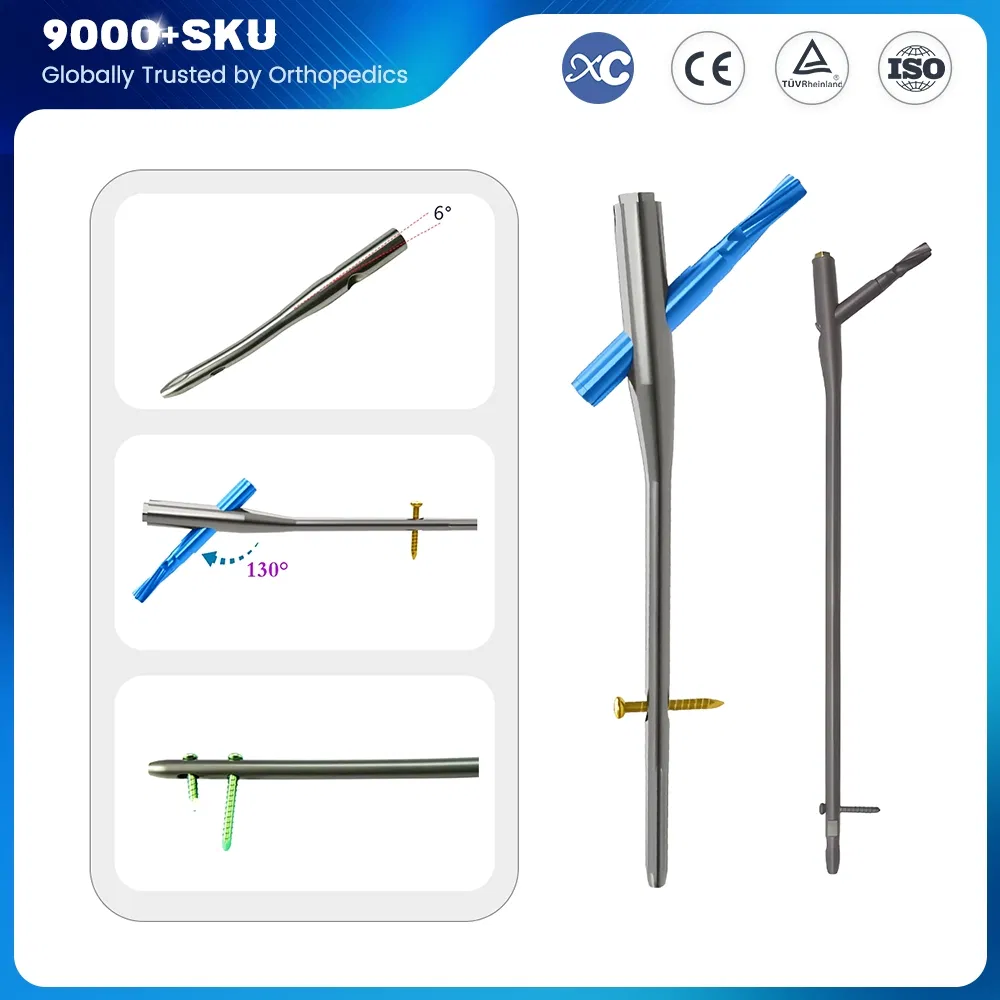

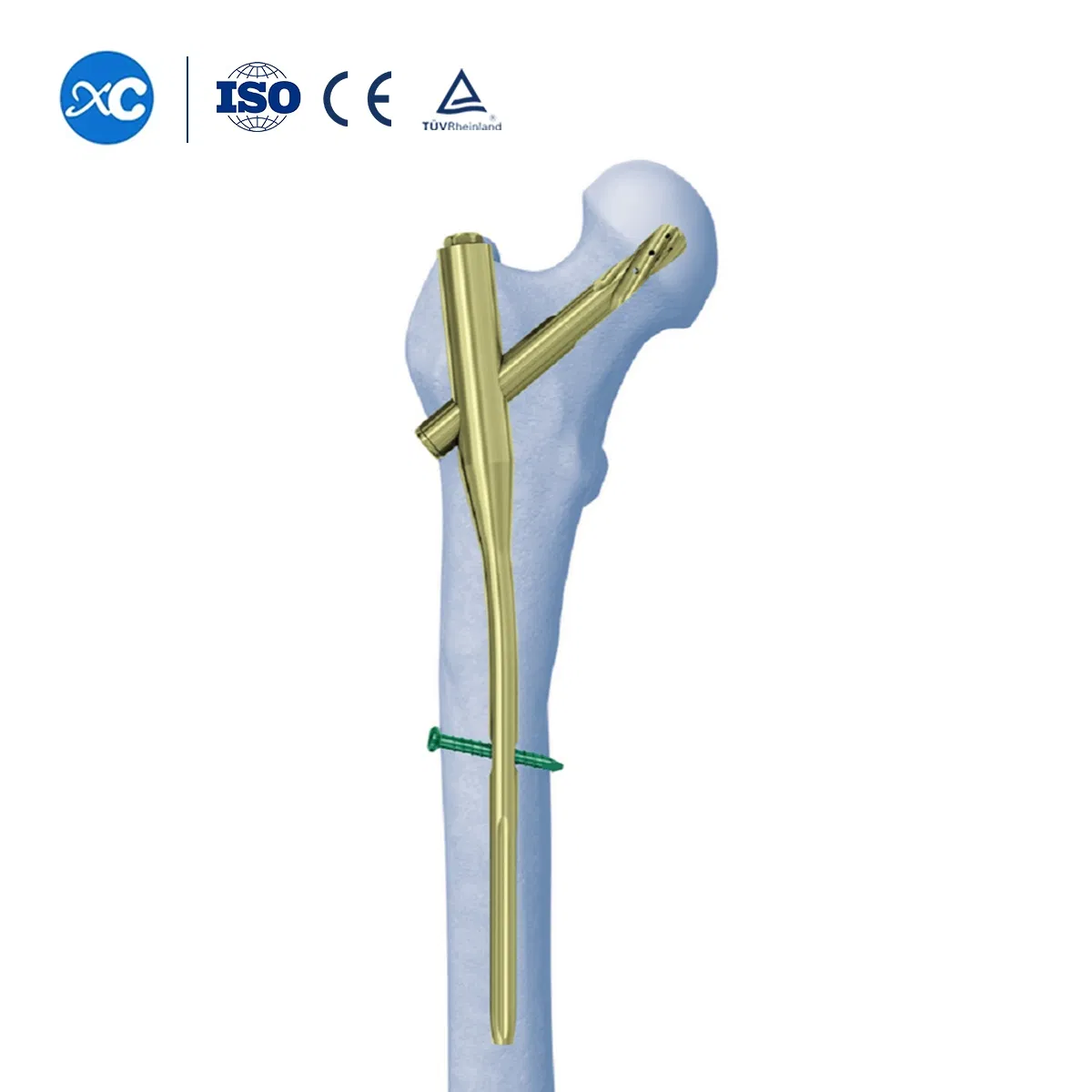

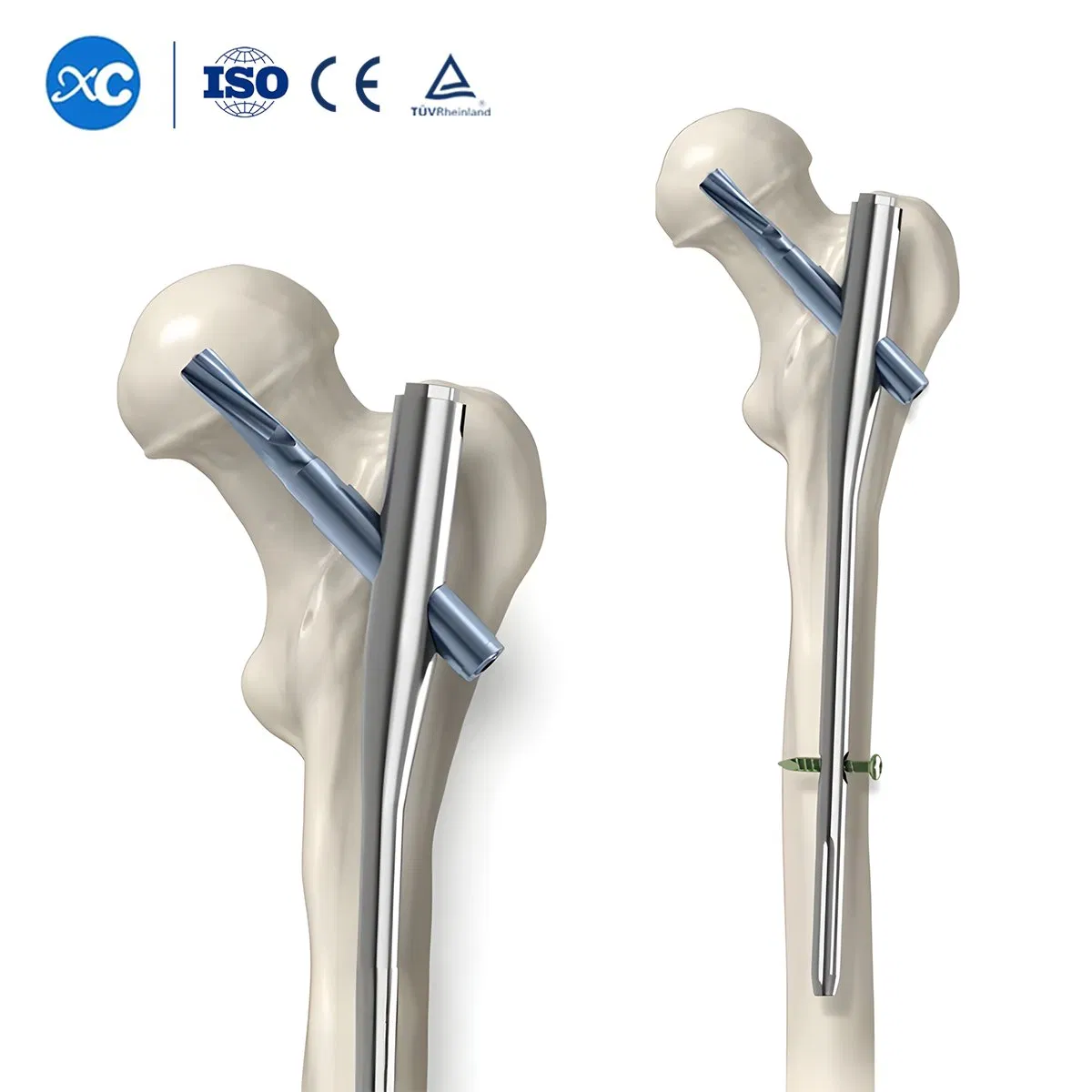

The PFNA nail has a Medial-Lateral Angle of 6°, which allows insertion at the tip of the greater trochanter, ensuring optimal fit and easier surgical procedure.

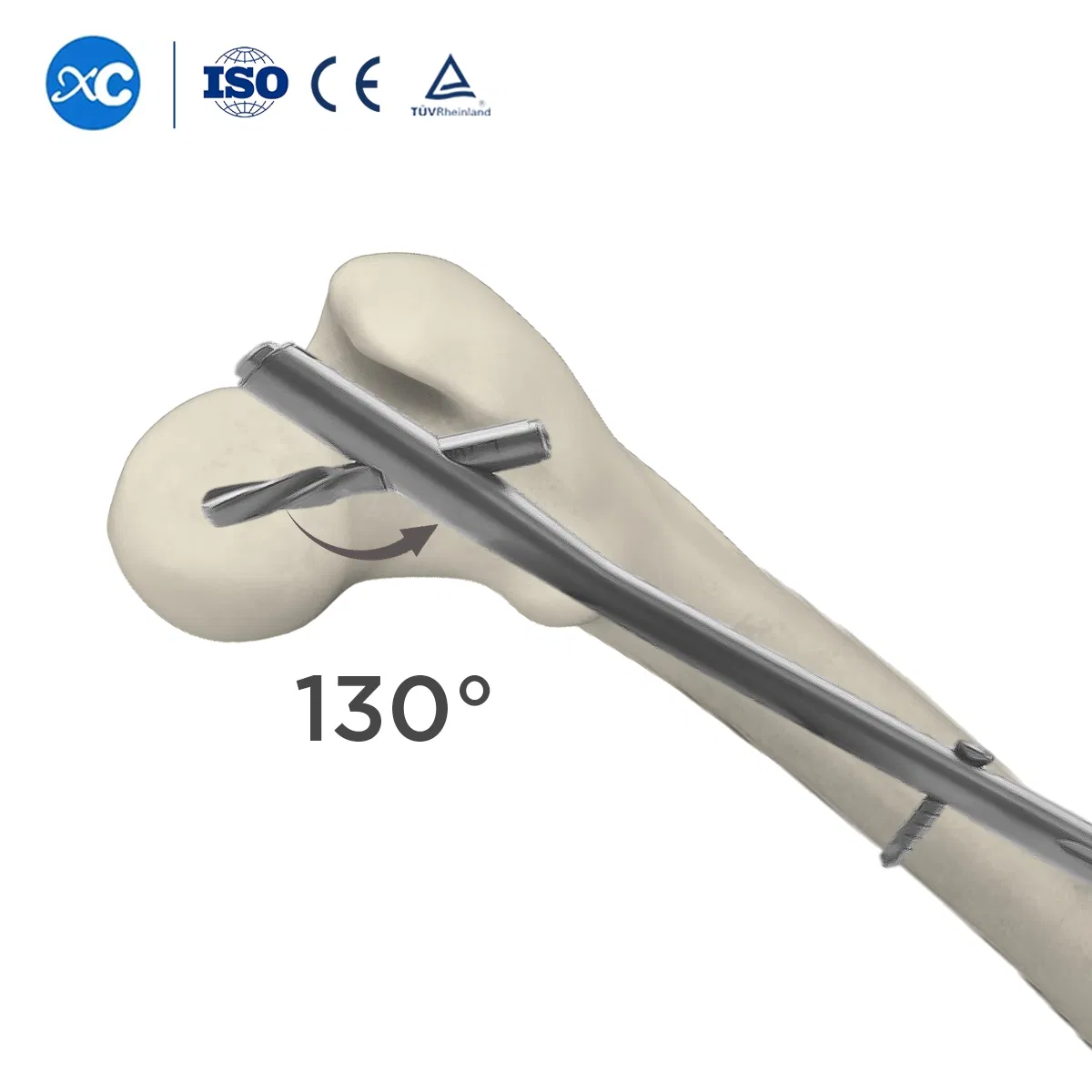

The PFNA blade screw offers higher cut-out resistance than standard screws. Its 130° angle with the nail provides superior ergonomics and anchoring, especially in osteoporotic bone.
Static or dynamic locking is achieved via the aiming arm for all PFNA types. The long nail also supports secondary dynamization for improved healing.
With 15 years of research and development, we offer 6 main series of orthopedic products, including spinal systems, interlocking nail systems, locking plate systems, basic instrument systems, and medical power tool systems. We provide a full range of orthopedic implants and instruments with dedicated production lines and warehouses.
