Product Function

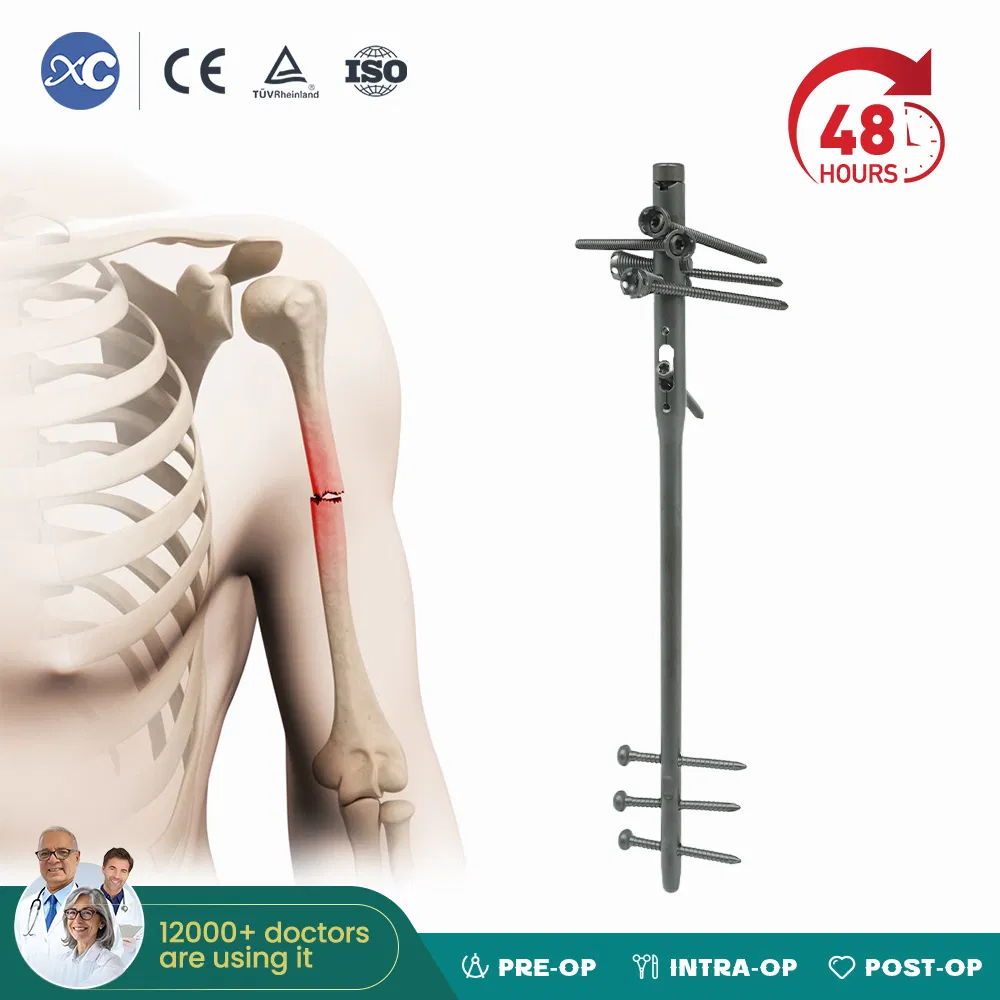

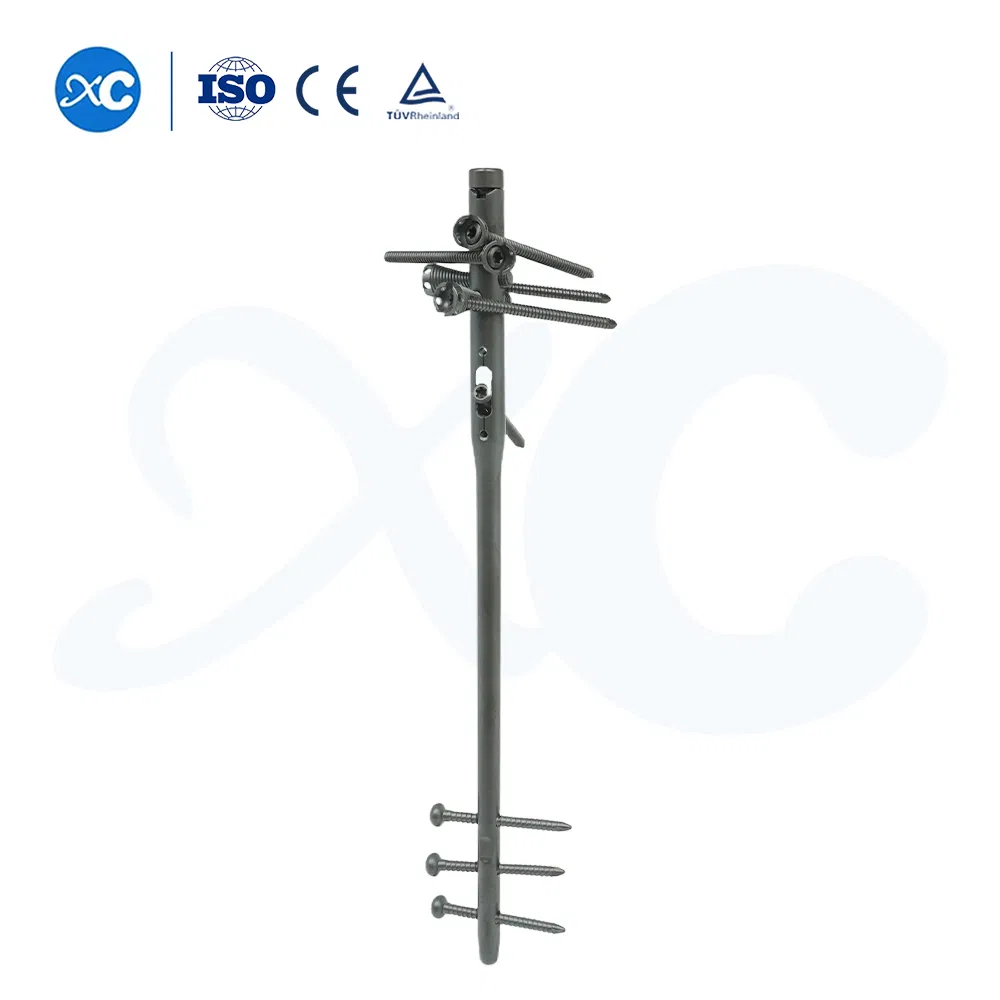

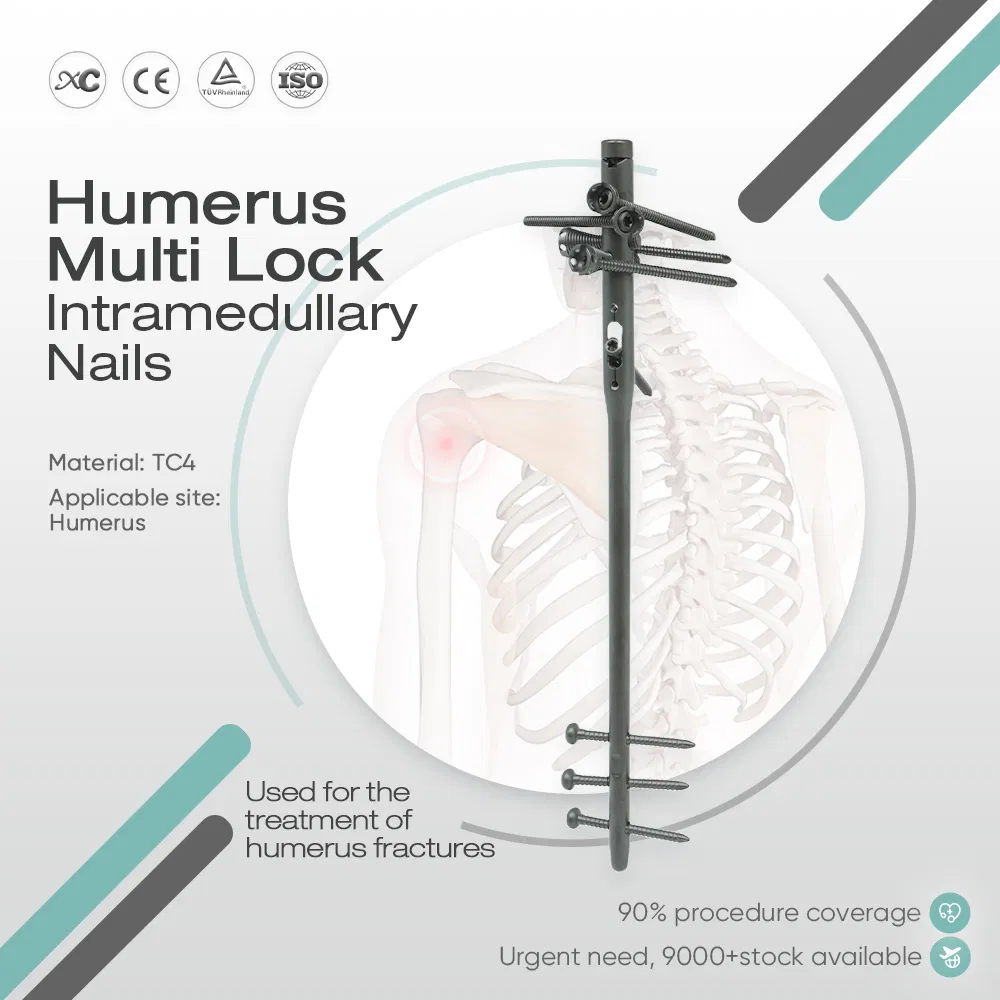

The Humerus Multi-Lock Intramedullary Nails are specifically designed for the surgical treatment of various humerus fractures, providing stable internal fixation.
| Product | REF (Titanium Alloy) | Specification (mm) |
|---|---|---|
| Humerus Multi Lock Nails (Left) | RZDG185160L | 8.5 * 160 L |
| RZDG17200L | 7.0 * 200 L | |
| RZDG17240L | 7.0 * 240 L | |
| RZDG18200L | 8.0 * 200 L | |
| RZDG18240L | 8.0 * 240 L | |
| RZDG18300L | 8.0 * 300 L | |
| Humerus Multi Lock Nails (Right) | RZDG185160R | 8.5 * 160 R |
| RZDG17200R | 7.0 * 200 R | |
| RZDG17240R | 7.0 * 240 R | |
| RZDG18200R | 8.0 * 200 R | |
| RZDG18240R | 8.0 * 240 R | |
| RZDG18300R | 8.0 * 300 R |
| Accessory | REF | Size |
|---|---|---|
| End Cap | RZDG1WM2 / 5 / 10 / 15 | 2 / 5 / 10 / 15 |

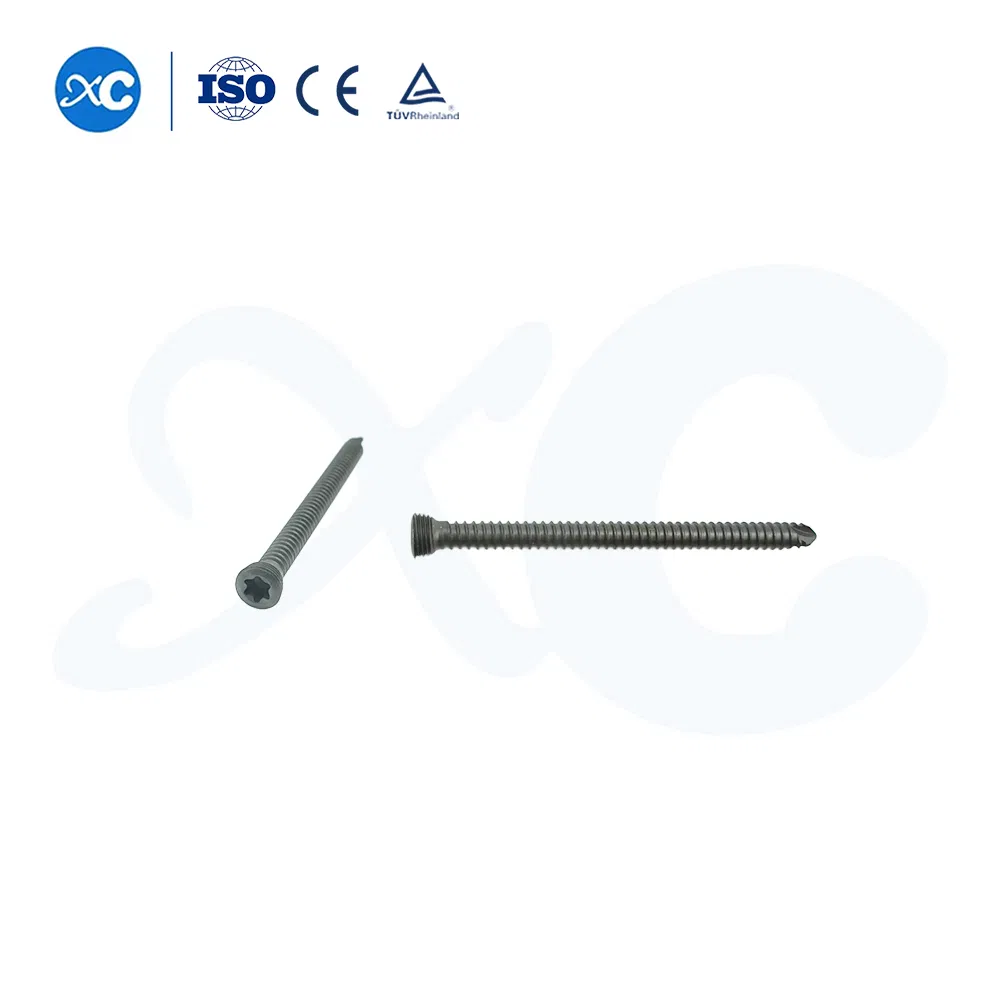

| Locking Screw-I (4.5) | RZDG1LD4520 - 4560 | 4.5 × 20 to 4.5 × 60 |
| Locking Screw-II (3.5) | RSZS3526 - 3552 | 3.5 × 26 to 3.5 × 52 |

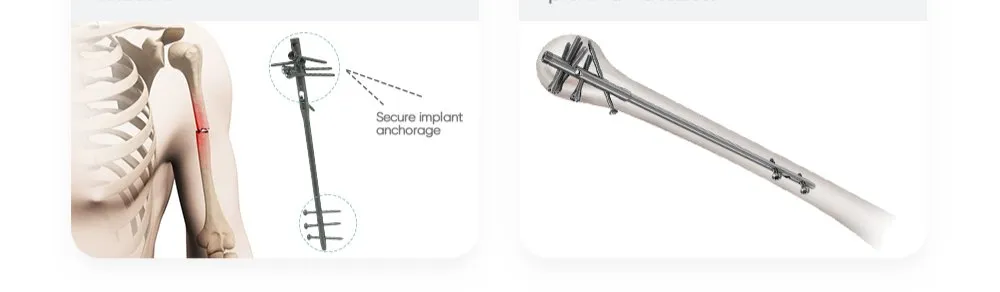

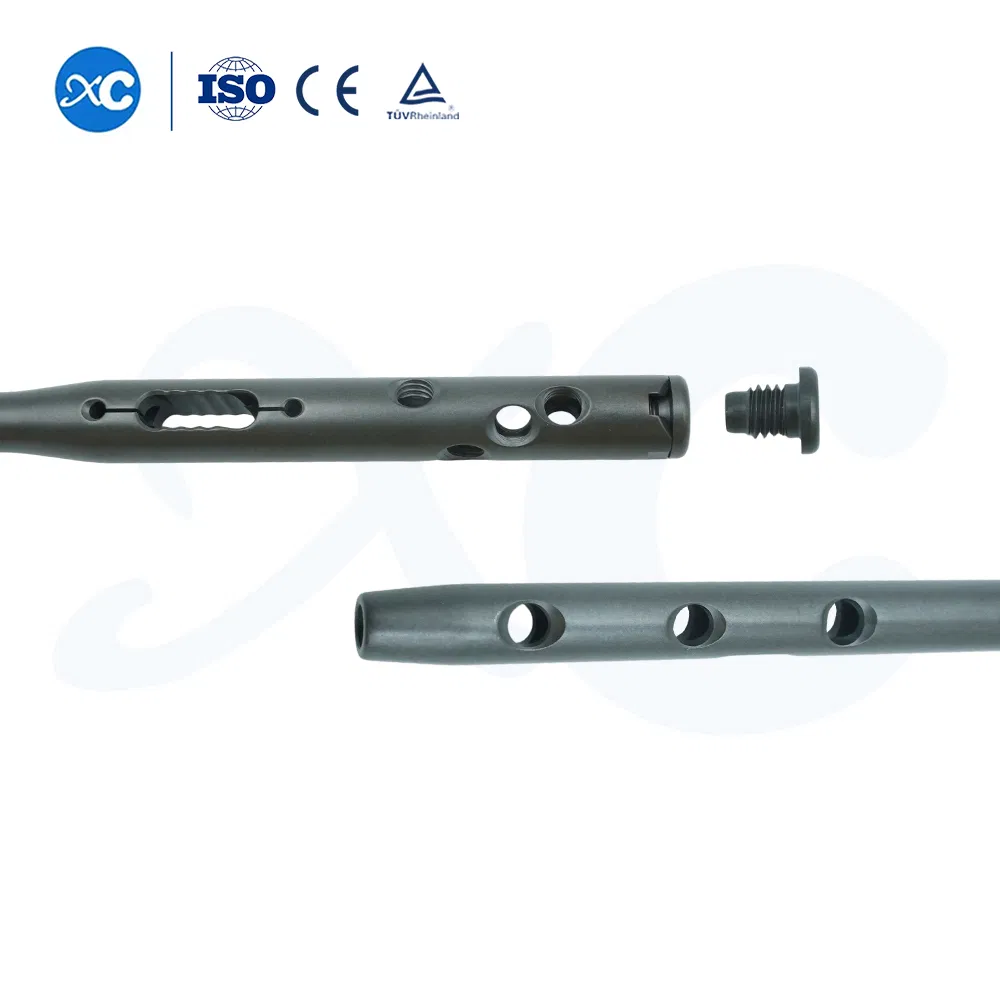

Maintains angular stability and reduces the risk of screw loosening or backing out, ensuring reliable proximal fixation.

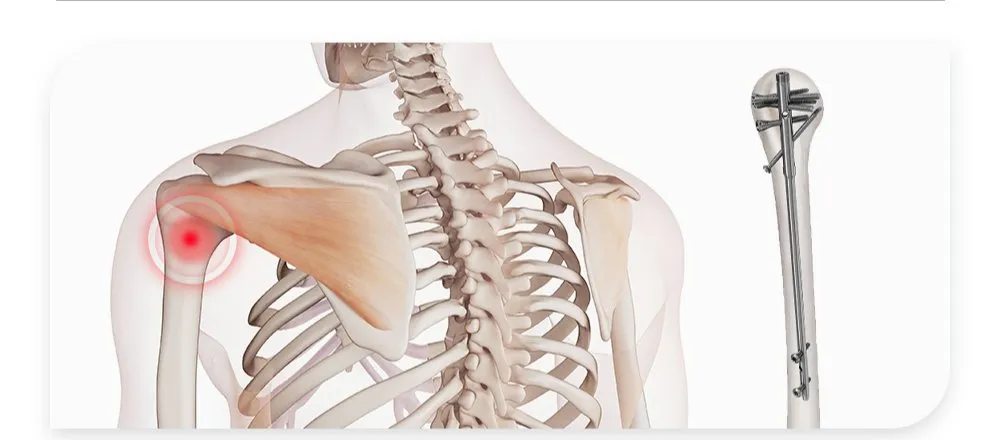

Provides support to the humeral head, reducing the risk of varus angulation and aiding stable alignment of proximal fractures.
Versatile options: 4.5mm screws provide primary stability; 3.5mm screws can add additional support for weak or osteoporotic bone.
Provides more stable distal fixation points, enhancing the overall stability of the intramedullary nail system.
Humerus Multi Lock Nail Instrument Set

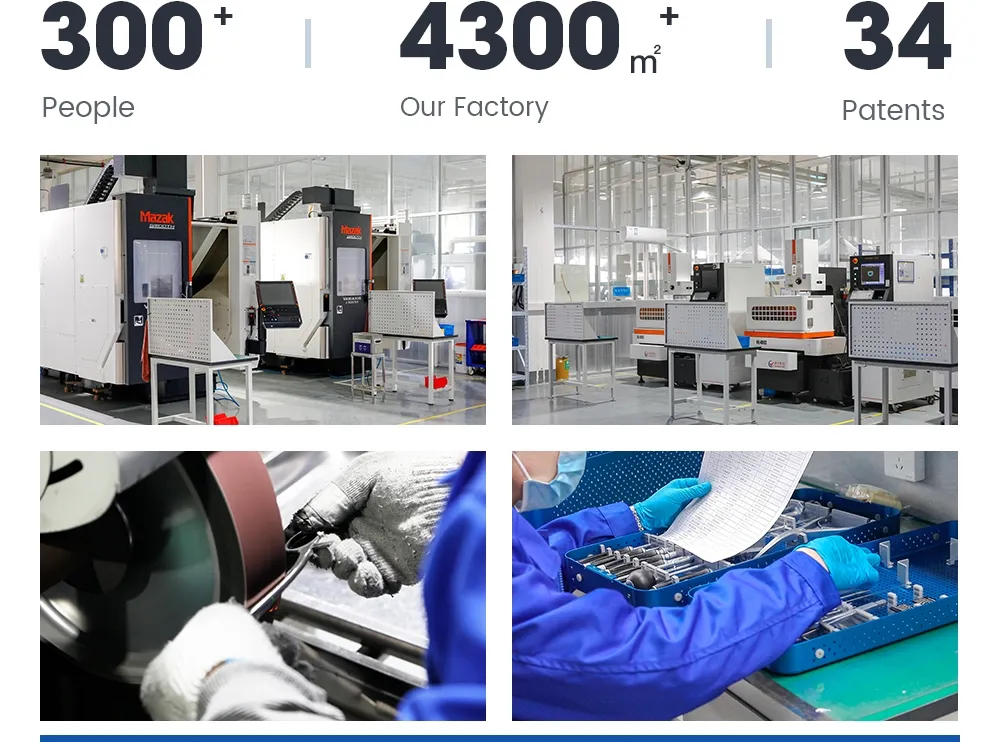

Our team provides a full range of orthopedic implants and instruments. As a professional manufacturer, we maintain dedicated production lines and warehouses to ensure quality and availability.
With over 15 years of research and development, we offer 6 main series of orthopedic products, including spinal systems, interlocking nail systems, locking plate systems, basic instrument systems, and medical power tool systems. We continue to expand into new areas such as veterinary orthopedic solutions.
