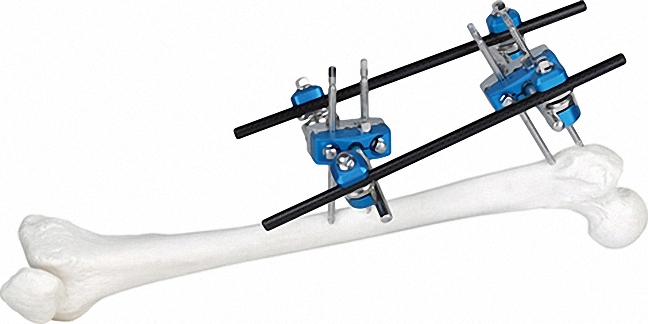

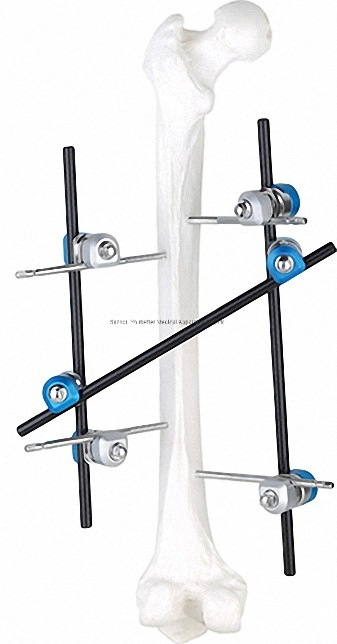

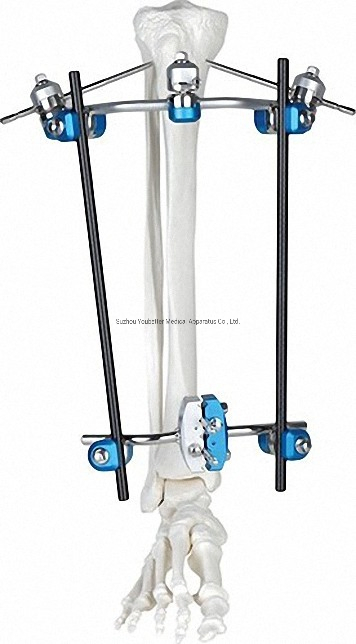

Titanium Bone Fixator Kit in Sleek White and Black
Titanium Bone Fixator Kit in Sleek White and Black
Titanium Bone Fixator Kit in Sleek White and Black
Titanium Bone Fixator Kit in Sleek White and Black
Titanium Bone Fixator Kit in Sleek White and Black
1 / 5
Titanium Bone Fixator Kit in Sleek White and Black
Titanium Bone Fixator Kit in Sleek White and Black
Titanium Bone Fixator Kit in Sleek White and Black
Titanium Bone Fixator Kit in Sleek White and Black
Titanium Bone Fixator Kit in Sleek White and Black

Titanium Bone Fixator Kit in Sleek White and Black

Customization: Available
Application: Orthopedic, Neurosurgery, Microsurgery
Material: Steel
Send Inquiry

Product Description

🔹 Basic Specifications
Model NO.
External Fixation
Feature
Reusable
Certification
CE, ISO13485
Color
White & Black
Usage
Bone Fixation
Material Type
Titanium Alloy & Stainless Steel
Package
Box
Specification
50*50*50CM
Capacity
500,000 Pieces/Year
HS Code
90211000
🔹 Product Overview
External Fixator -- The Pinnacle of Modular Fixation Systems

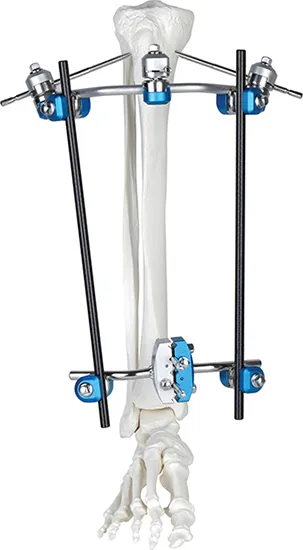

External Fixator Kit
✔ Groundbreaking technology and intuitive, user-friendly operation for orthopedic treatment.
✔ Independent arrangement of bone screws for proximal and distal fractures.
✔ Innovative snap-fit design for streamlined and time-efficient surgical procedures.
✔ Premium medical-grade aluminum and carbon fiber for exceptional clarity and durability.
✔ Unparalleled stability and flexibility catering to diverse medical needs.
✔ Compact, space-saving frame for easy transport and use by medical professionals.

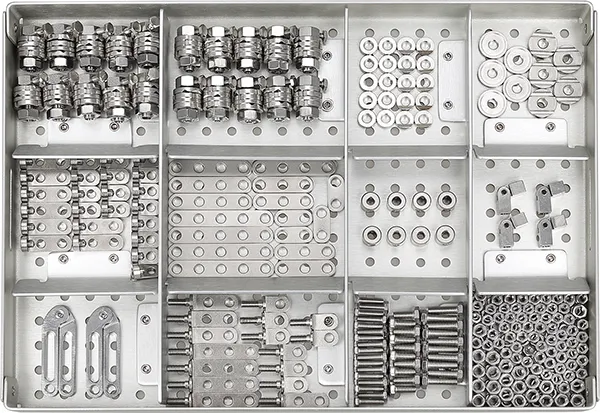

Fixator Component Detail

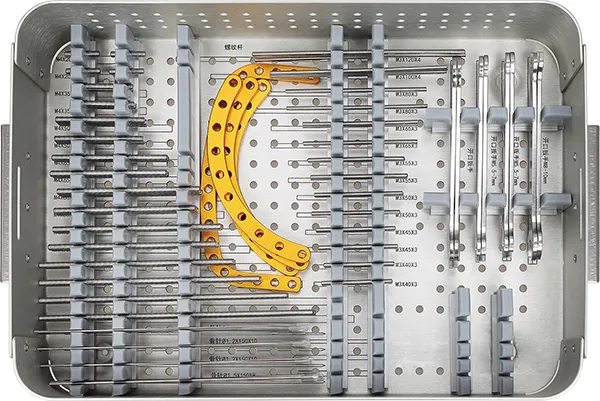

Fixator Assembly
🔹 Components & Technical Specifications
Component Description Specifications Quantity
Independent Couplingφ6*φ14(1.5-2.0) / (1.5)20
Needle Clipφ4*φ9 (φ1.0 / φ1.5)10
Cone Washerφ4*φ9 / φ4*φ1415
Double Groove Needle Clampφ4*φ14(2.0-2.5)5
Post With Threaded PostVarious (M3/M4)24
Connection Plateφ4*20 to φ4*50 (2-5 Holes)16
Straight Connection Plateφ3 / φ48
Fixator (Hinge)M4*20mm4
BoltsM3*12, M4*10, M4*1437
Hex NutM3 / M4180
Straight Threaded RodM3/M4 (Length 20mm-155mm)82
Bone Screws1.0*150, 1.2*150, 1.5*15048
Instrument SetStandard Orthopedic Set1
🔹 Modular Application Variants

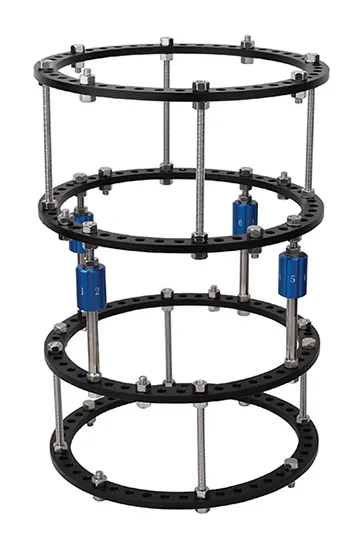

Lower Limbs Lengthening
Lower Limbs Lengthening
Used For Tibia & Femur Applications

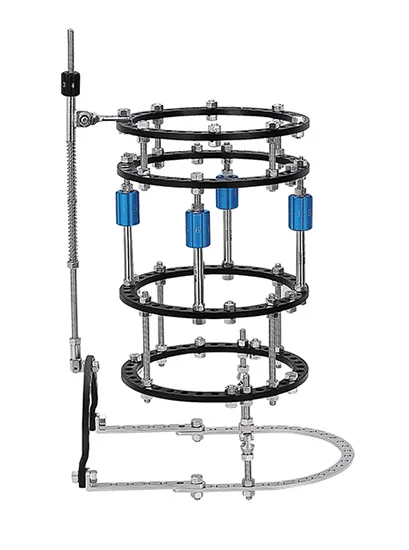

Orthopedic External Fixator
Orthopedic External Fixator
For Humeral & Tibial Lateral Epicondyle

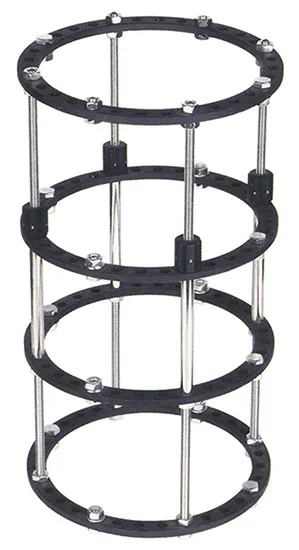

Ring Fixator
Ring Fixator
Used For Tibia & Femur Fixation

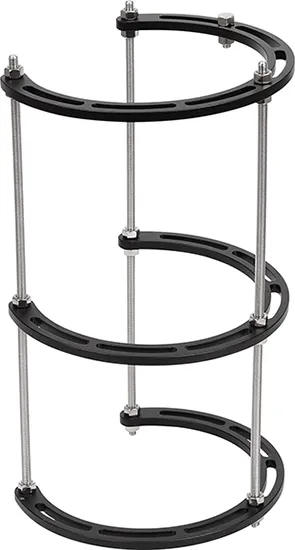

2/3 Ring Fixator
2/3 Ring Fixator
Optimized for Tibia & Femur

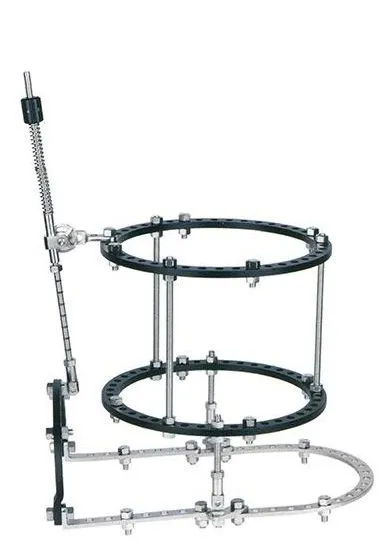

Ankle Joint Fixator
Ankle Joint Fixator
Specifically designed for Equinus treatment

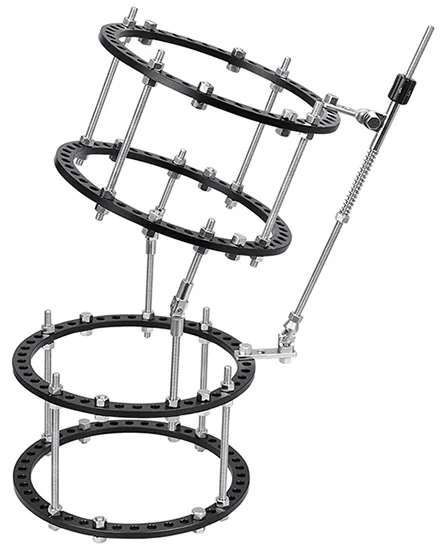

Knee Joint Fixator
Knee Joint Fixator
Professional Knee Joint Stabilization
🔹 Frequently Asked Questions (FAQ)
What materials are used in the construction of this external fixator?
The system is crafted from premium medical-grade Titanium Alloy and Stainless Steel, with specific components utilizing carbon fiber and aluminum for enhanced fracture visualization and durability.
Is this fixation system reusable?
Yes, the device is designed to be reusable, featuring a robust framework that maintains stability and performance through repeated medical use.
What type of fractures can be managed with this device?
It is ideal for managing proximal, distal, and complex fractures, as well as addressing significant soft tissue loss in both upper and lower limbs.
How does the snap-fit design improve surgical outcomes?
The snap-fit design allows for a streamlined, time-efficient assembly in the operating room, reducing overall surgical time and improving workflow for practitioners.
Does the fixator interfere with X-ray or imaging?
By utilizing aluminum and carbon fiber in key areas, the fixator enhances fracture visualization, providing exceptional clarity for medical professionals during post-operative monitoring.
What certifications does the product hold?
The External Fixator system is fully certified with CE and ISO13485 standards, ensuring it meets international quality and safety requirements for medical devices.
