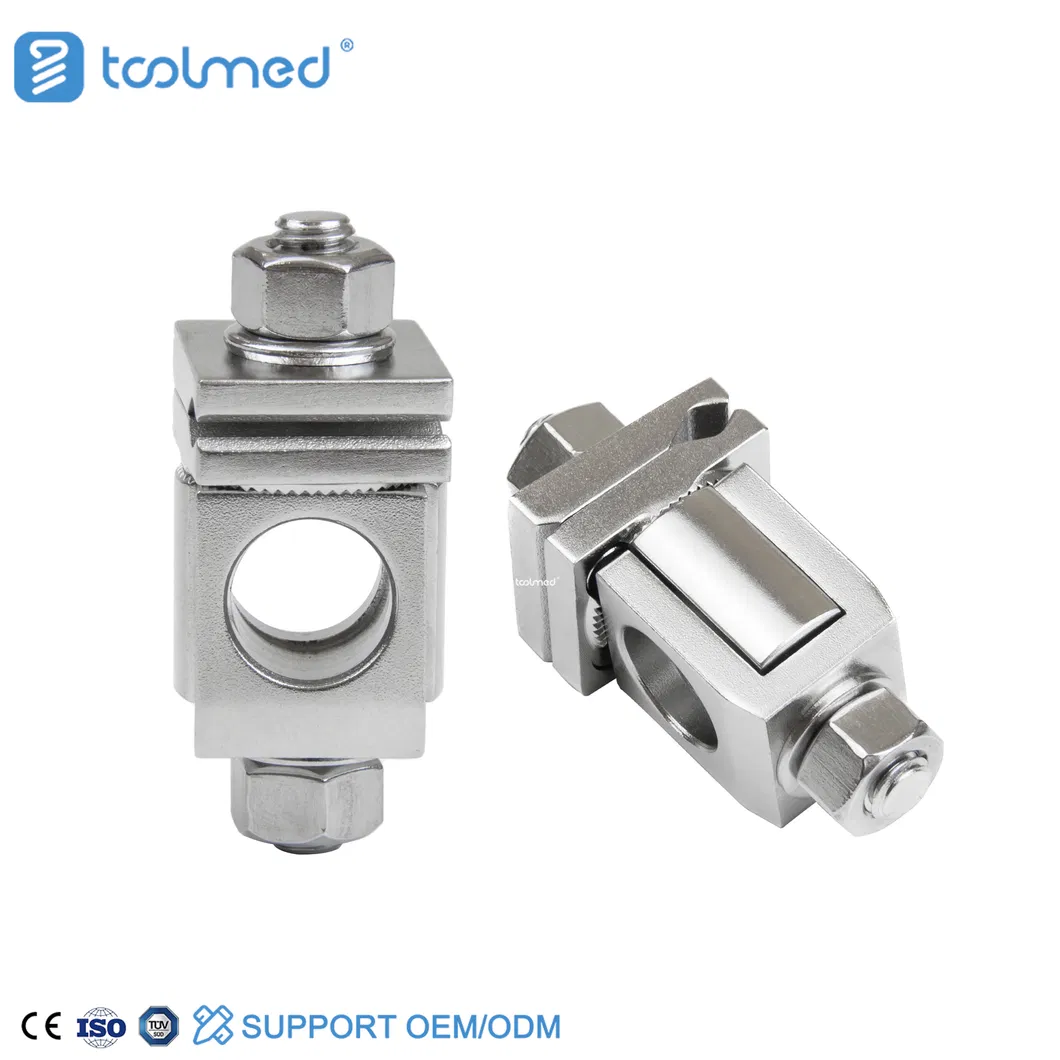

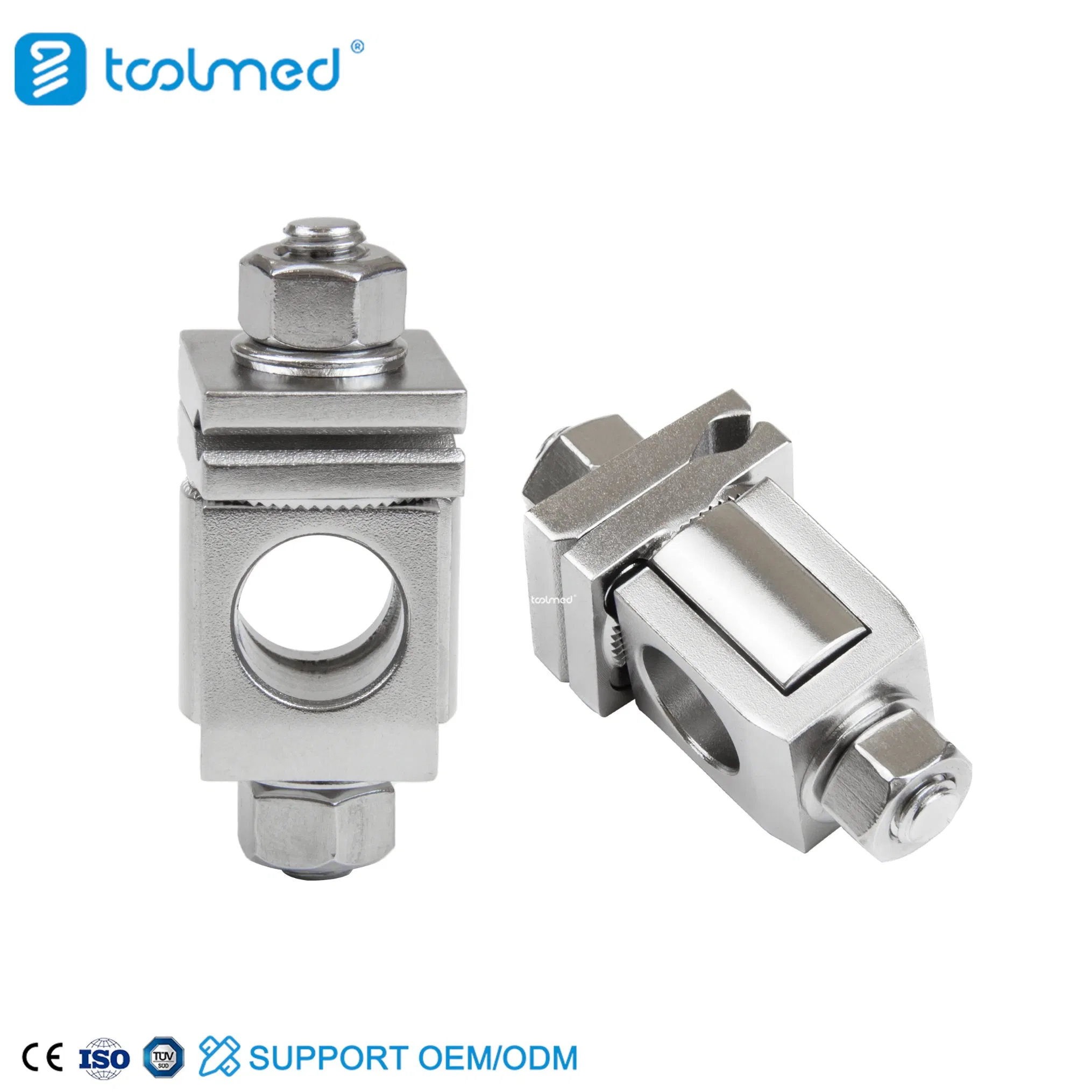

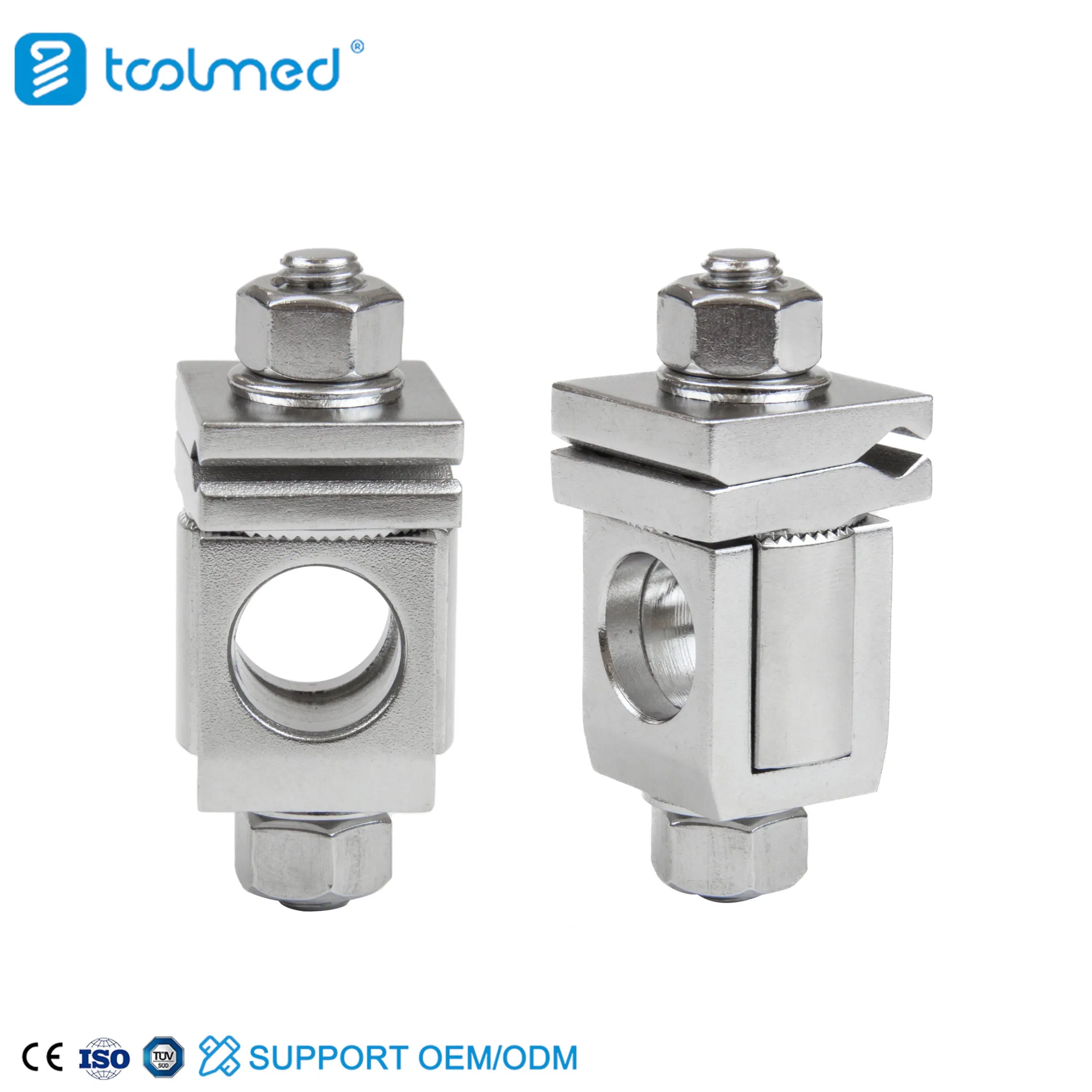

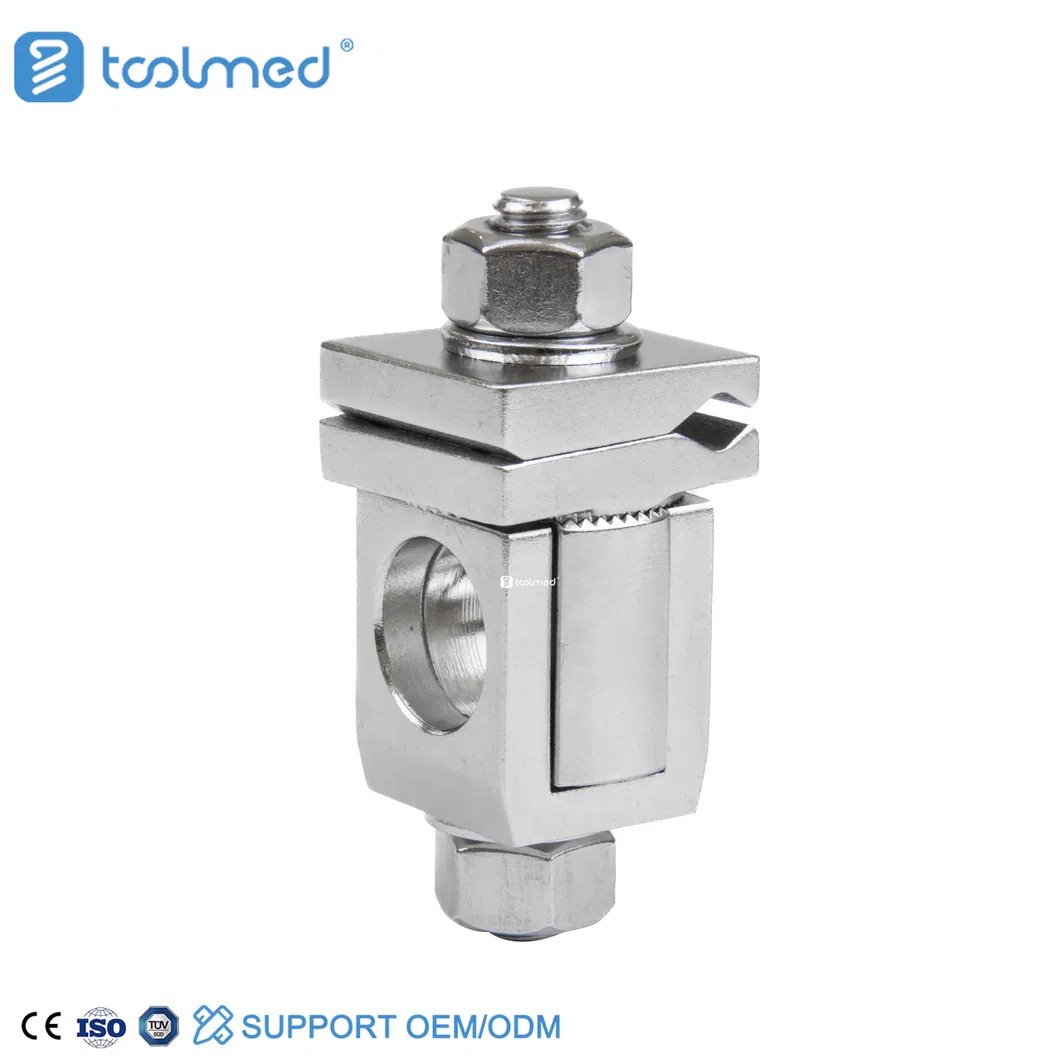

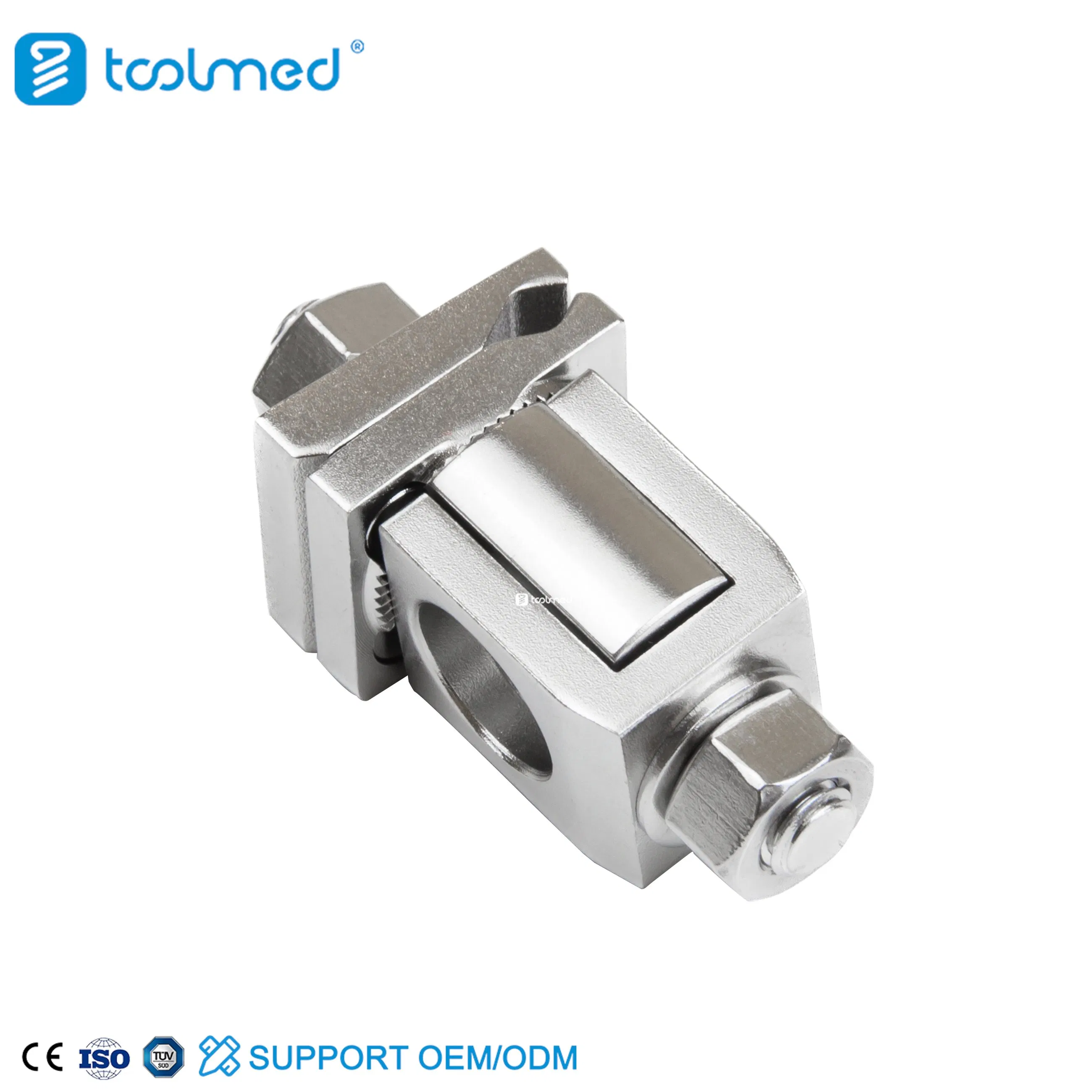

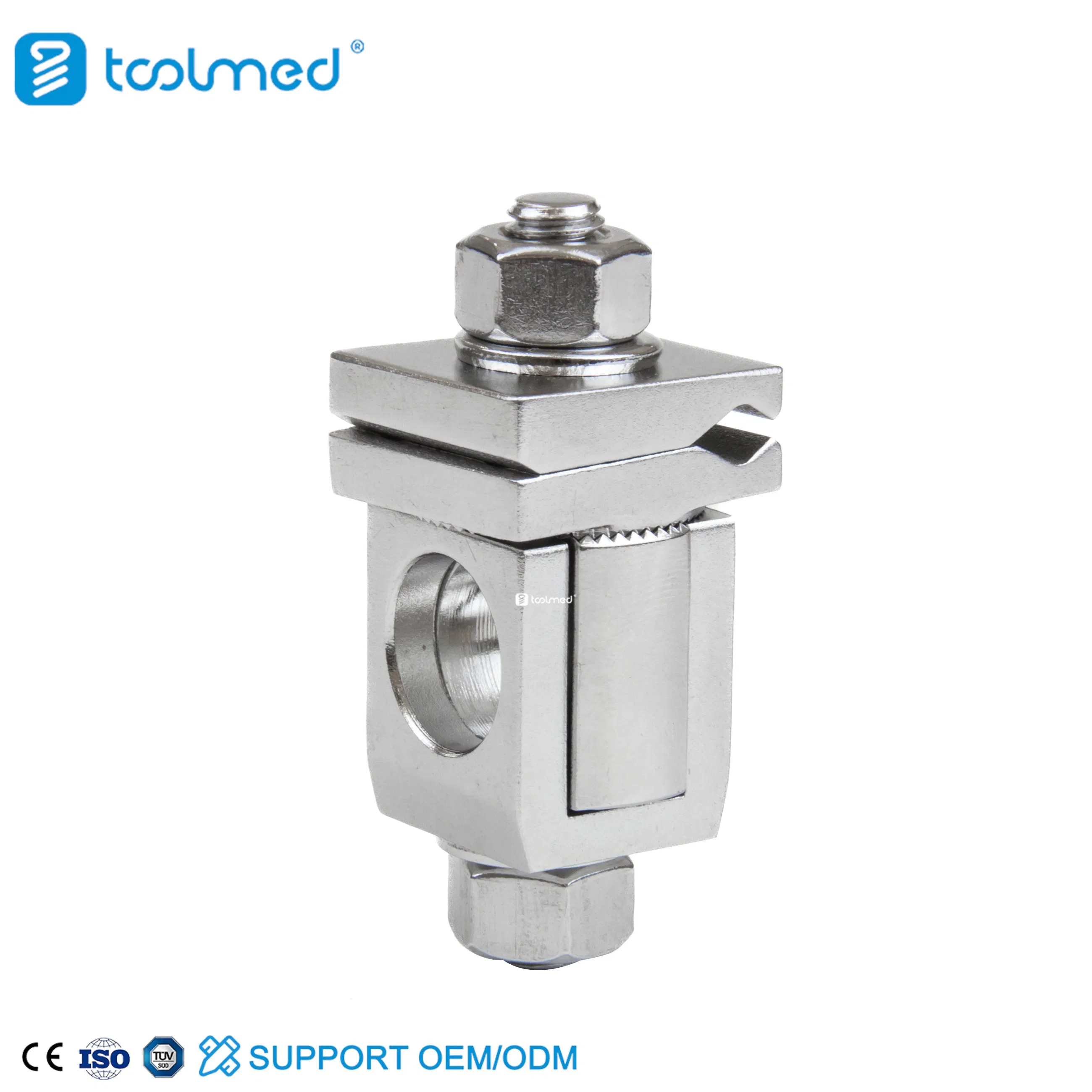

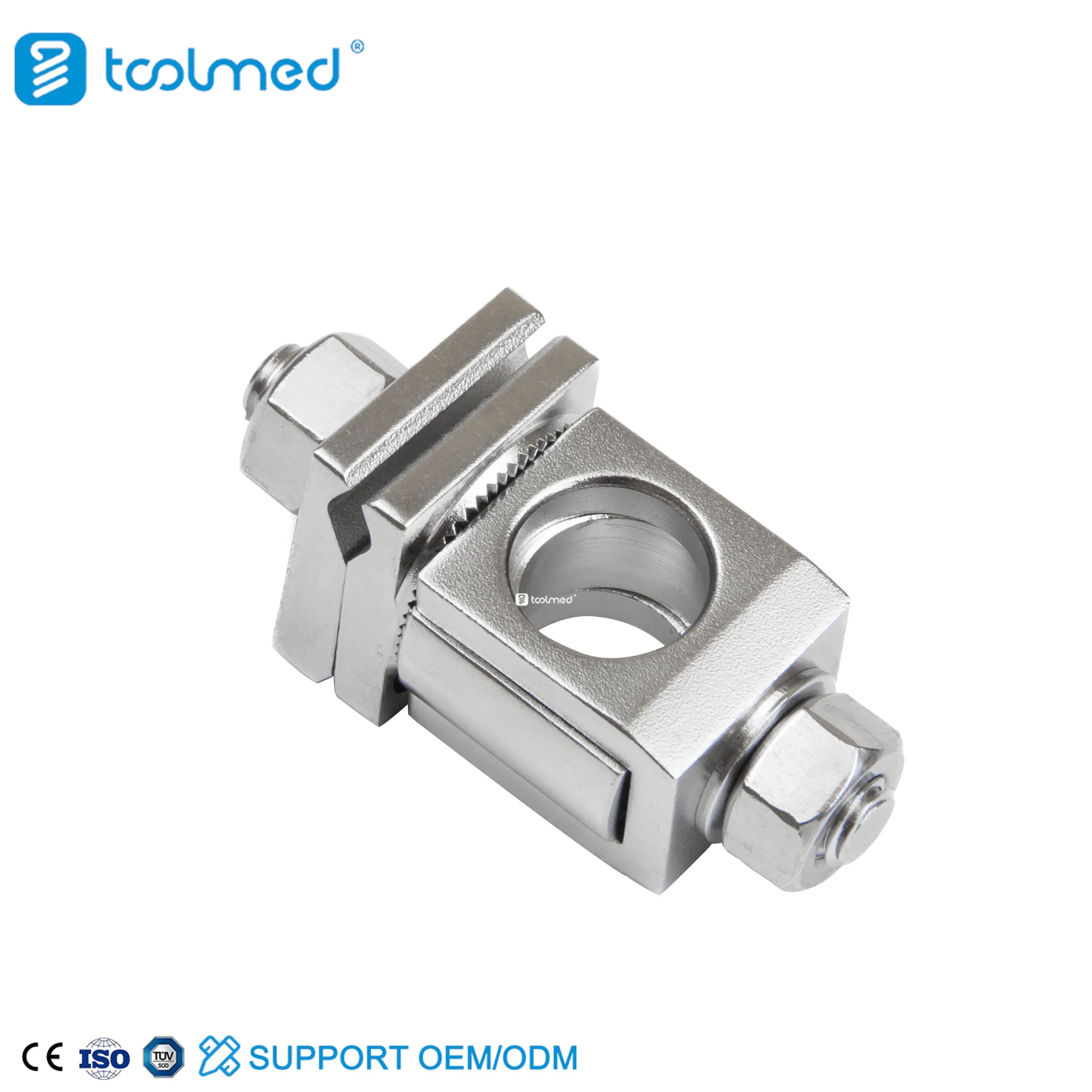

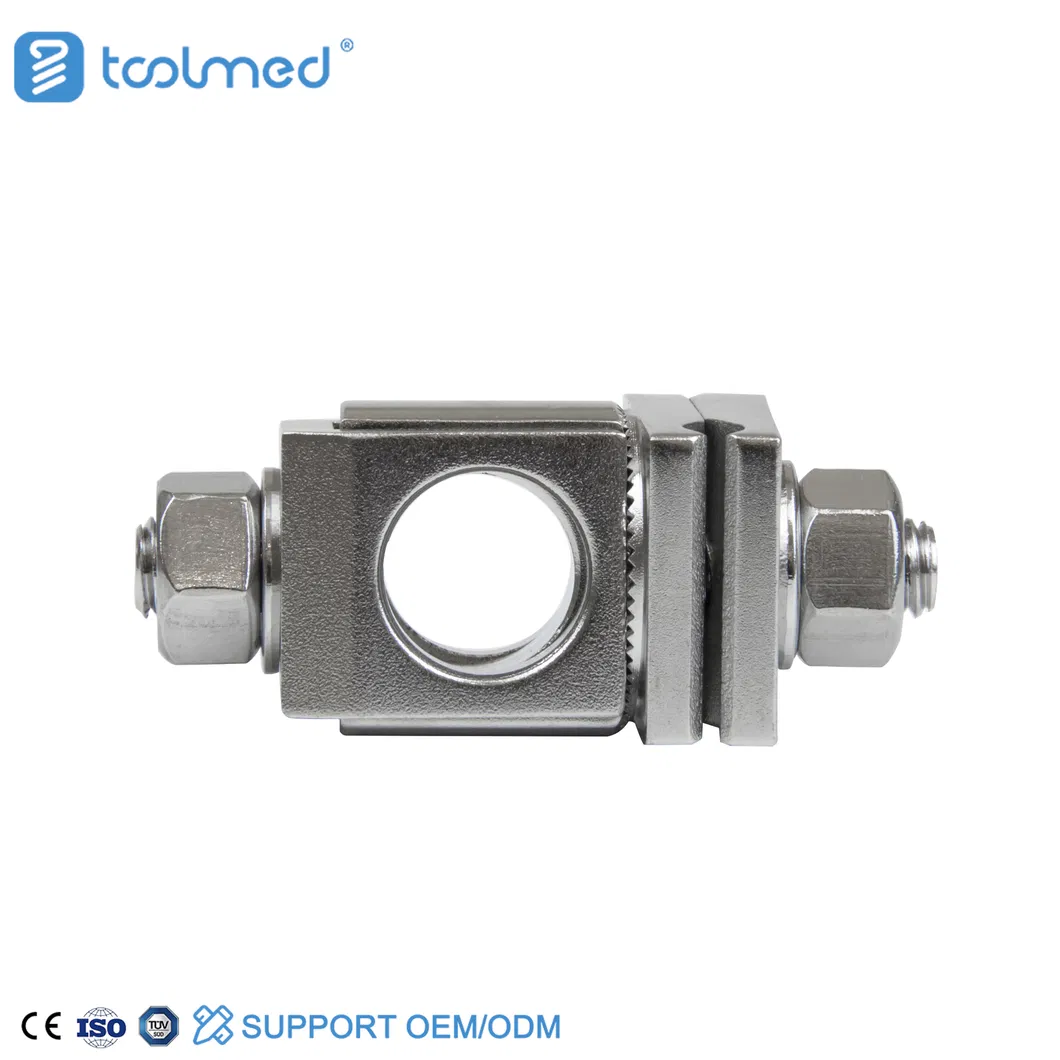

Pin Rod Coupling Connector 11mm to 5mm for Ilizarov / Circular External Fixator System

Basic Information

Model NO.

5400-0401

Material

Stainless Steel

Feature

Reusable

Certification

CE, ISO13485

Group

Adult

Warranty

1 Year

After-Sale Service

Online Technical Support

Transport Package

Plastic or Carton

Origin

China

HS Code

9018909999

Capacity

10000 Pieces/Month

Key Advantages

1

Enables Hybrid Frame Construction

Provides critical versatility by securely connecting larger 11mm load-bearing rods to smaller 5mm Schanz pins or wires, allowing for stable, customized hybrid external fixator configurations.

2

Ensures Rigid & Stable Connection

Delivers a high-strength, wobble-free interface between components, which is essential for maintaining fracture reduction and preventing micro-motion that could compromise bone healing.

3

Universal Compatibility

Designed to industry-standard dimensions (Ø11/5mm), serving as a universal spare part compatible with major Ilizarov and circular fixation systems.

Product Features

• Precision Machined Threads: Accurately tapped threads for the 11mm rod and a smooth bore with a secure locking bolt.
• Low-Profile Design: Engineered with a minimal footprint to reduce bulk, improving patient comfort and wound care.
• Medical-Grade Material: Manufactured from ASTM F138 stainless steel, ensuring long-term durability and biocompatibility.

Applications

• Circular Frames: Core component for building Ilizarov or Taylor Spatial Frames™.
• Hybrid Fixation: Essential for combining tubular external fixators (11mm) with fine-wire fixation (5mm).
• Revision Surgery: Used to add secondary stability or replace damaged couplings without dismantling the structure.

Technical Details & Production

Frequently Asked Questions

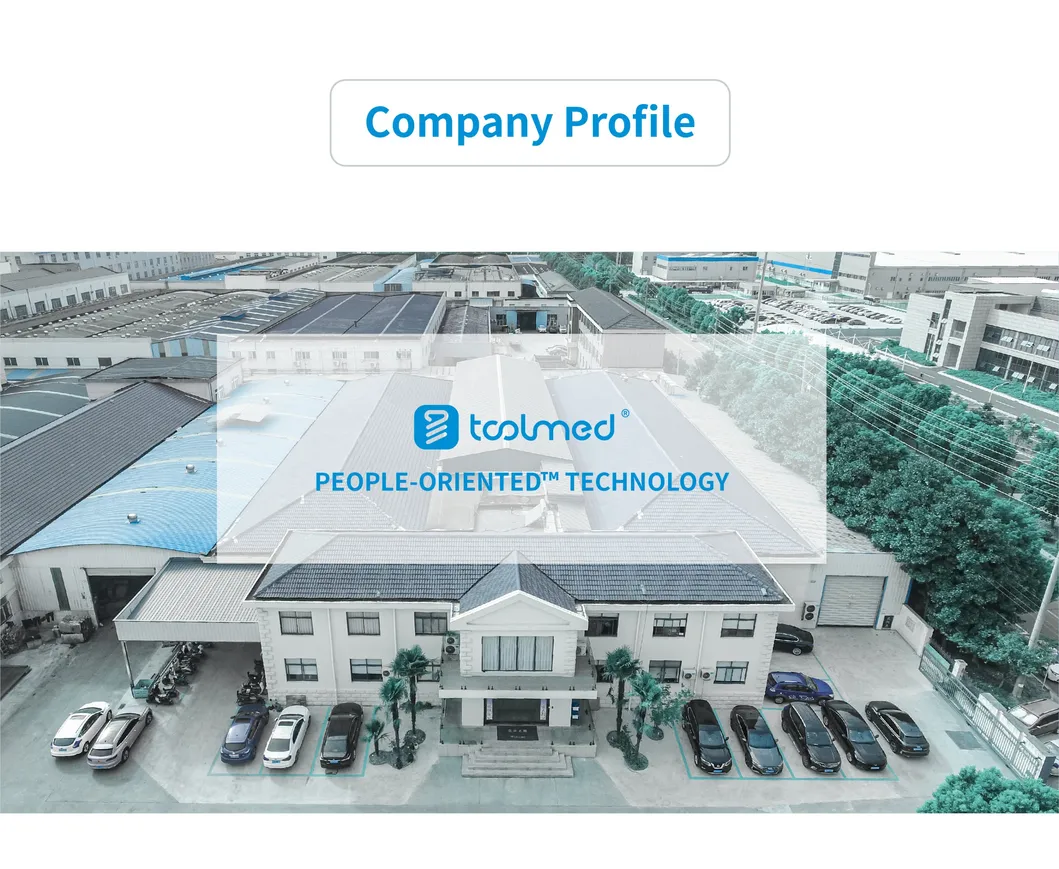

Q1: Are you a trading company or manufacturer? A: We are a professional medical manufacturer located in China, specializing in orthopedic implants and instruments.

Q2: What are your accepted payment methods? A: We accept T/T (Bank Transfer), Western Union, and Paypal for convenient transactions.

Q3: What is the typical delivery time for an order? A: We maintain a significant stock; orders can typically be shipped within 1 week if the items are available.

Q4: Which shipping methods do you use? A: All orders are shipped via reliable international couriers including DHL, UPS, FEDEX, and TNT.

Q5: Do you provide product samples? A: Yes, we offer free samples. Customers are only responsible for covering the freight/shipping costs.

Q6: What is the warranty period for your products? A: We provide a 5-year warranty on our orthopedic products to ensure long-term quality assurance.
