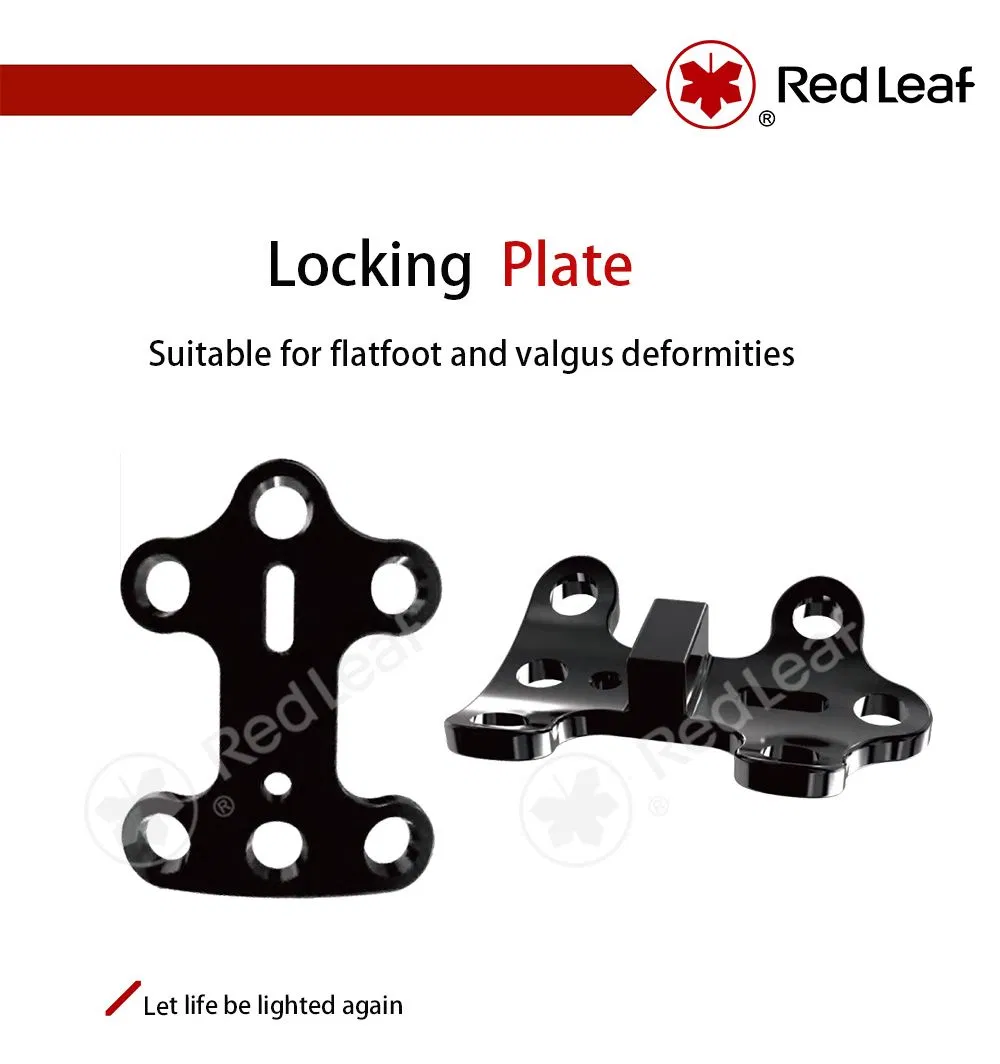

· Suitable for flatfoot and valgus deformities

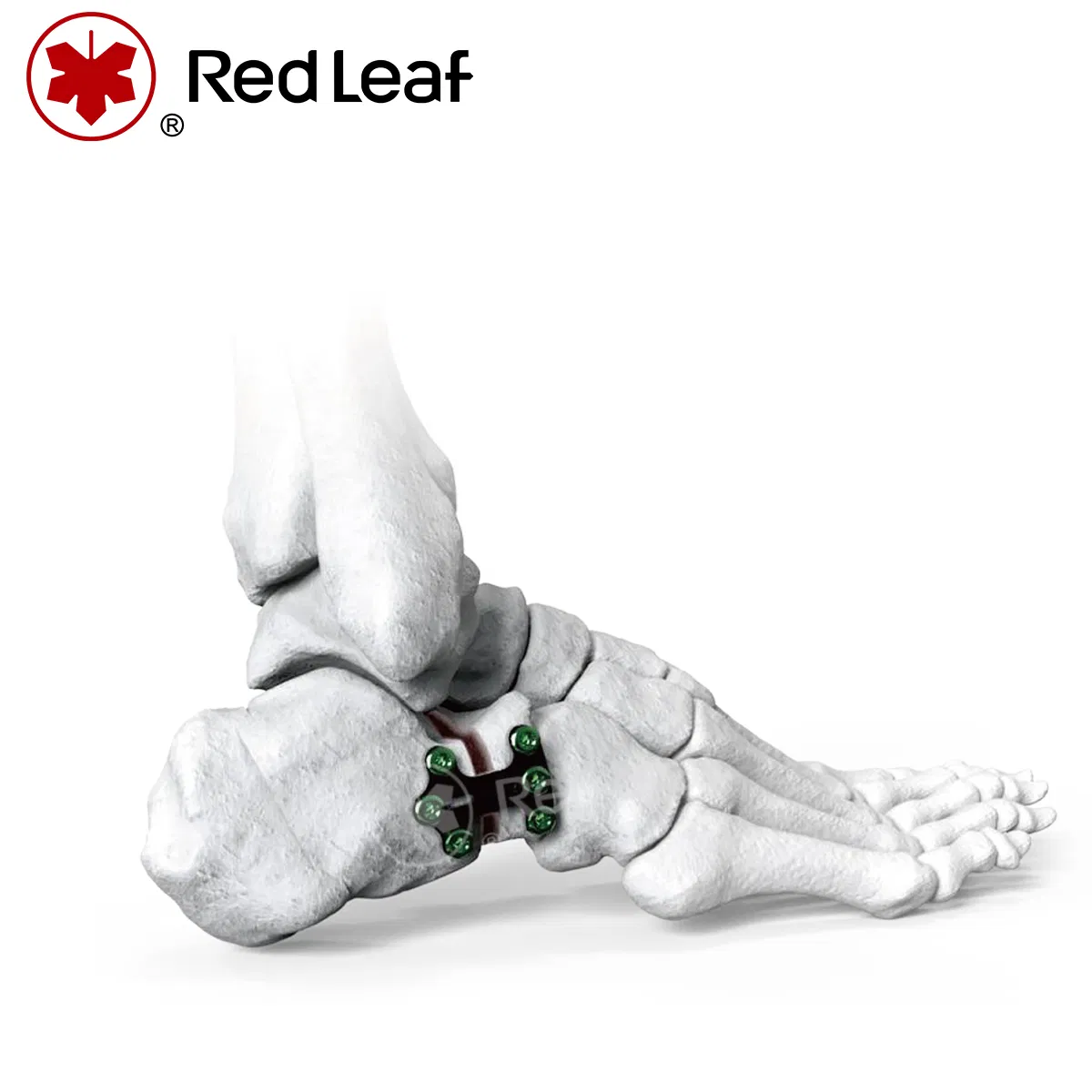

· Transverse osteotomy of calcaneal neck
· Distance between osteotomy surface and calcaneocuboid joint surface: 10-15mm
· Transverse osteotomy of the calcaneal neck (10-15mm from calcaneocuboid joint).
· Use swing saw carefully on the inner cortex to avoid soft tissue damage.
· Even spread with parallel openings to facilitate bone ingrowth and prevent non-union.
· Matching Screw: 3.5 Self-tapping locking screw
· Length Range: 6-40mm (2mm specifications)
· Kirschner Wire: 1.9mm
· Material: TC4 Titanium Alloy

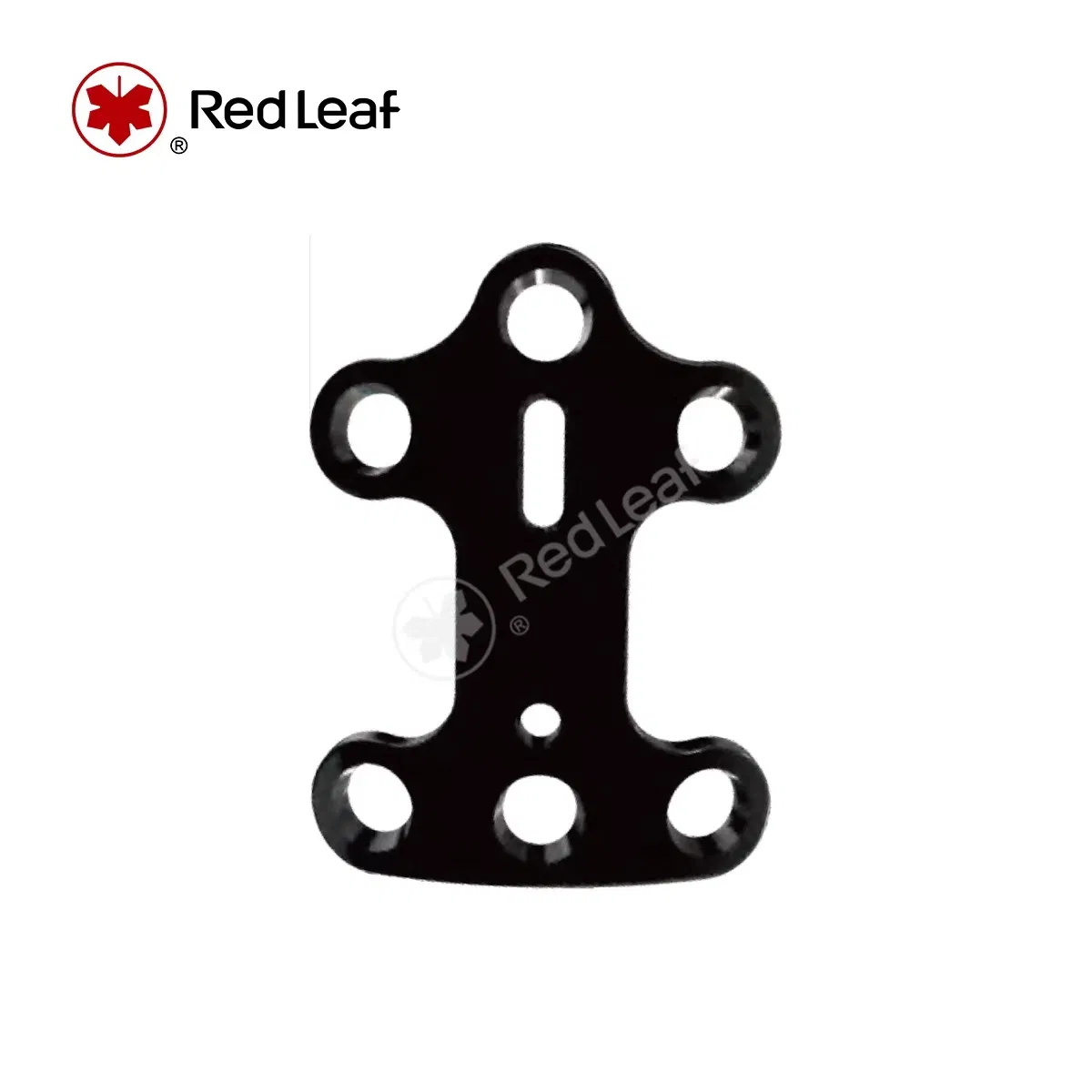

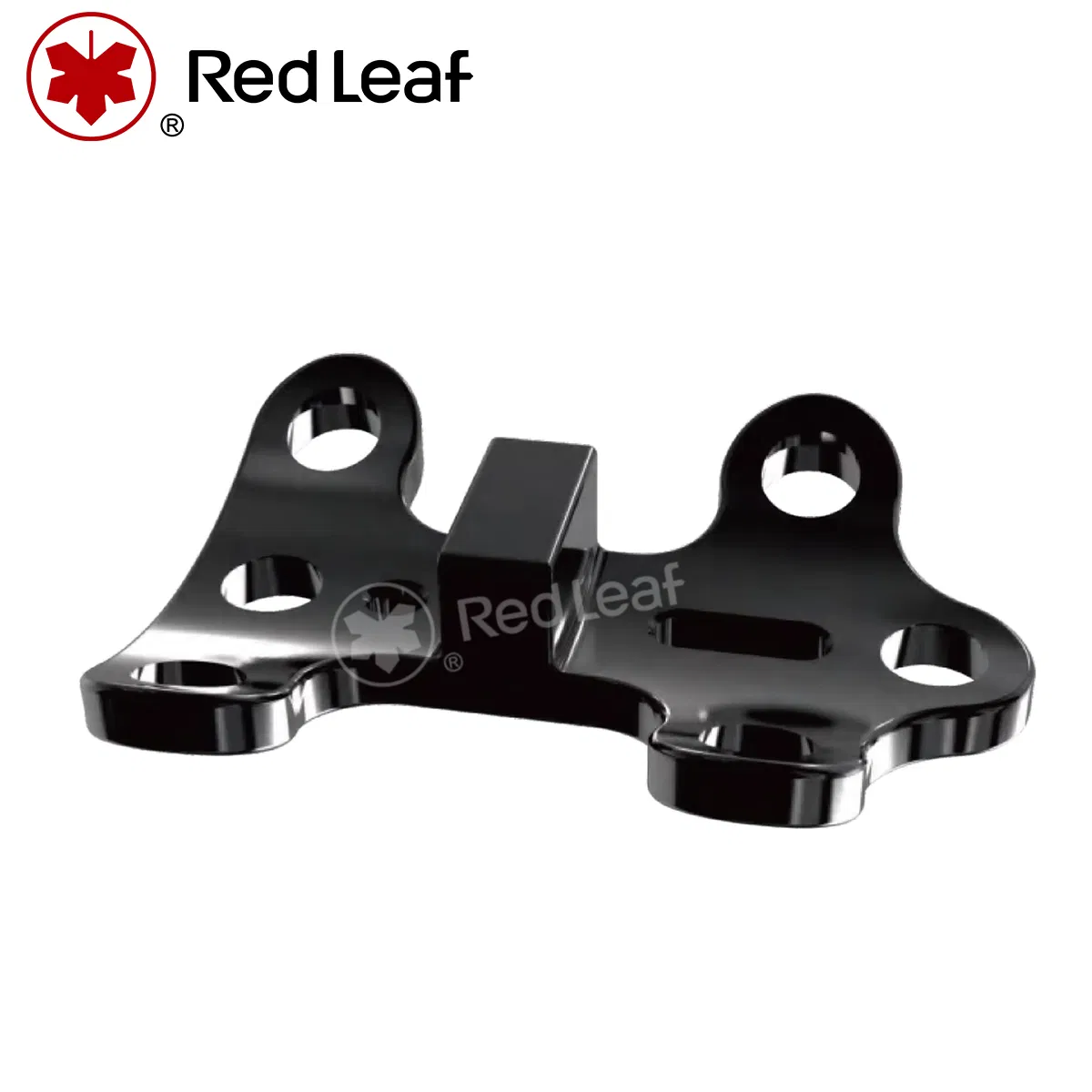

| Specifications | Length (mm) | Width (mm) | Thickness (mm) | Step Width (mm) | Cushion Height (mm) |
|---|---|---|---|---|---|
| Big | 36.0 | 23.0 | 2.0 | 6/8/10 | 6/8/10 |
| Middle | 30.0 | 23.0 | 2.0 | 4/6/8 | 4/6/8 |
| Small | 26.0 | 23.0 | 2.0 | 2/4/6 | 2/4/6 |
