Orthopedics Medical Supplies German Motor Low Speed Surgical Drill for Total Replacement

1 / 5

Orthopedics Medical Supplies German Motor Low Speed Surgical Drill for Total Replacement

Customization:	Available
Type:	Power Drill
Kind:	Orthopedics

Send Inquiry

Product Description

Basic Specifications

Model NO.

ND-3511

Certification

CE, ISO13485

Product Name

Surgical Power Drill

Operating Principle

Total Hip Replacement

Motor

Brushless Motor

Warranty

2 Years

Voltage

100V-240V

Torque

750g/Cm

Sterilizing Time

About 20 Mins

Package

Aluminum Box

HS Code

9018909000

Origin

Anhui, China

Product Description

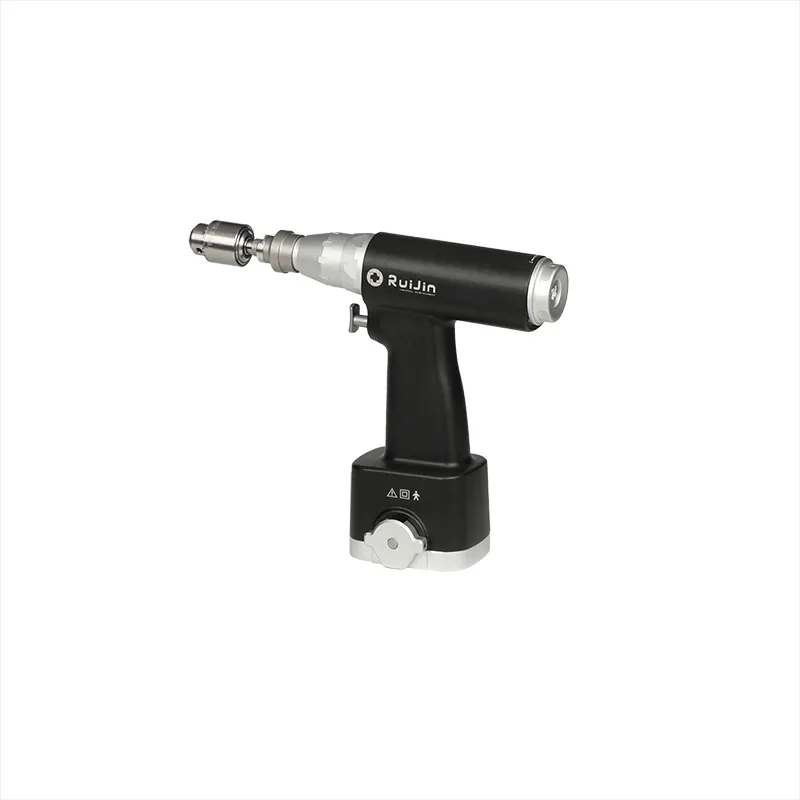

Orthopedics Medical Supplies German Motor Low Speed Surgical Drill for Total Replacement

This medical instrument is broadly applied in traumatic surgery, joint surgery, orthopedic surgery, and neurosurgery operations. It is ideal for K-wires, intermediary interlocking nail surgery, or arthroscopic surgery. The whole unit is autoclavable, featuring an imported motor to ensure low noise, high speed, and long service life. It can adapt to various flexible reamers and chucks easily during the surgical process.

Technical Data

Working Voltage	14.4V	Output Power	130W
Unit Rise in Temperature	≤ 25ºC	Input Voltage	AC 100V-220V
Output Voltage	14.4V, 900mA	Charger Input Power	30VA
Charging Time	3 hours	Speed	300r/min
Non-loaded Noise	63dB(A)	Radial Run-out	0.5mm
Torque	33000gcm	Sterilization Temp	≤ 135ºC

Technical Merits

Designed specifically for joint operations and total hip replacement.
Low speed with great torque, compatible with various acetabulum burnishing and medullary cavity expanding tools.
Main unit is fully autoclavable up to 135ºC high temperature and high pressure.
Portable design with carbonless motor for increased power and variable speed control.
Scientific balance technics reduce vibration and enhance handpiece control for surgeons.
High concentricity ensures precision during polishing in hip operations.

Product Display

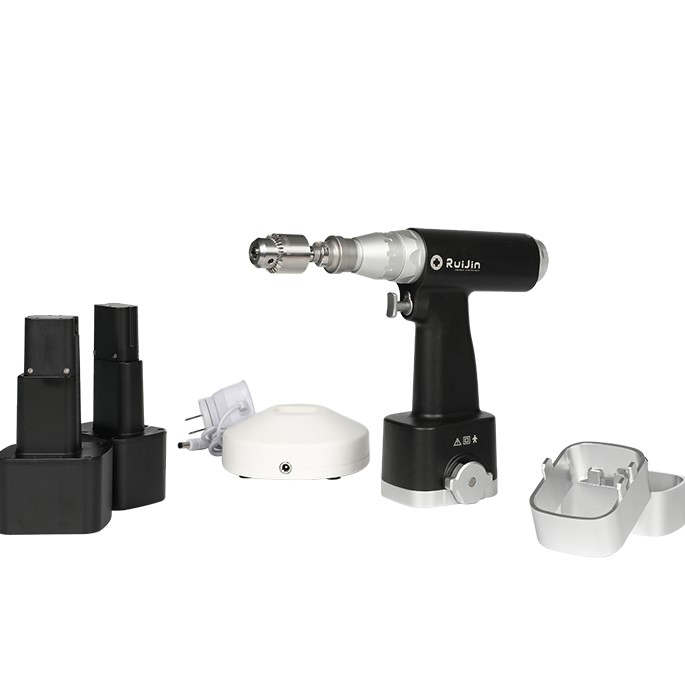

Standard Configuration: Handpiece, Charger, Two Batteries, Sterilizing Channel, Drill Chuck, Aluminum Alloy Box.

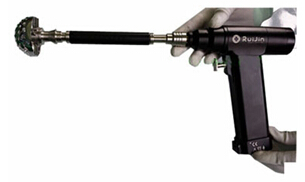

Hip joint drill with various adaptors

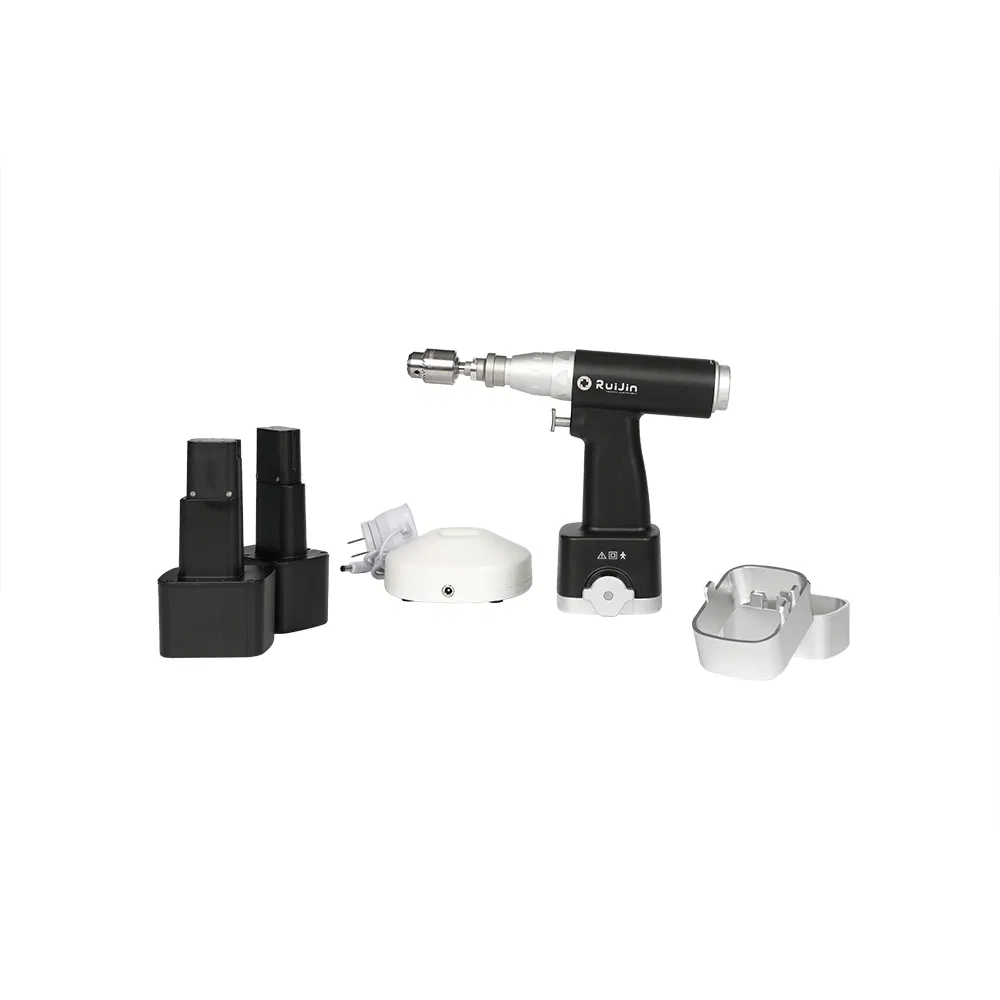

Includes 2pcs powerful batteries

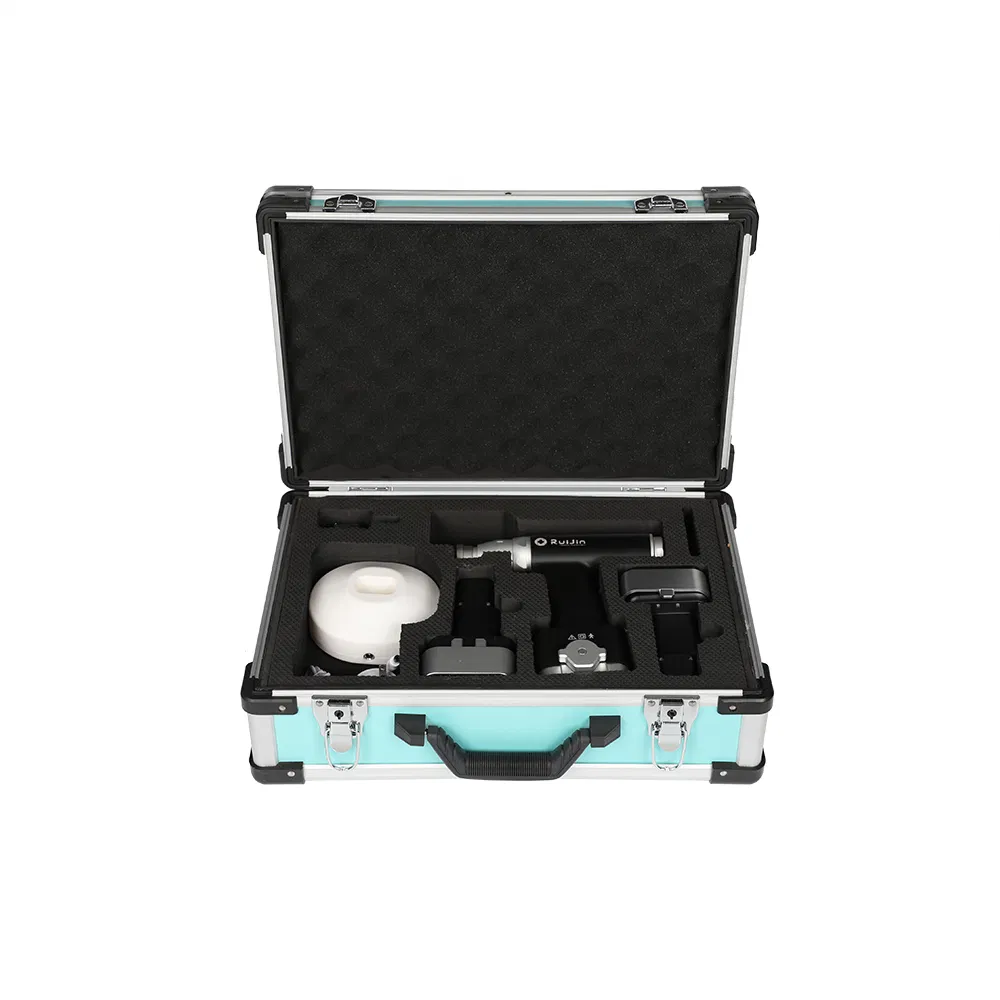

Completed set with aluminum case

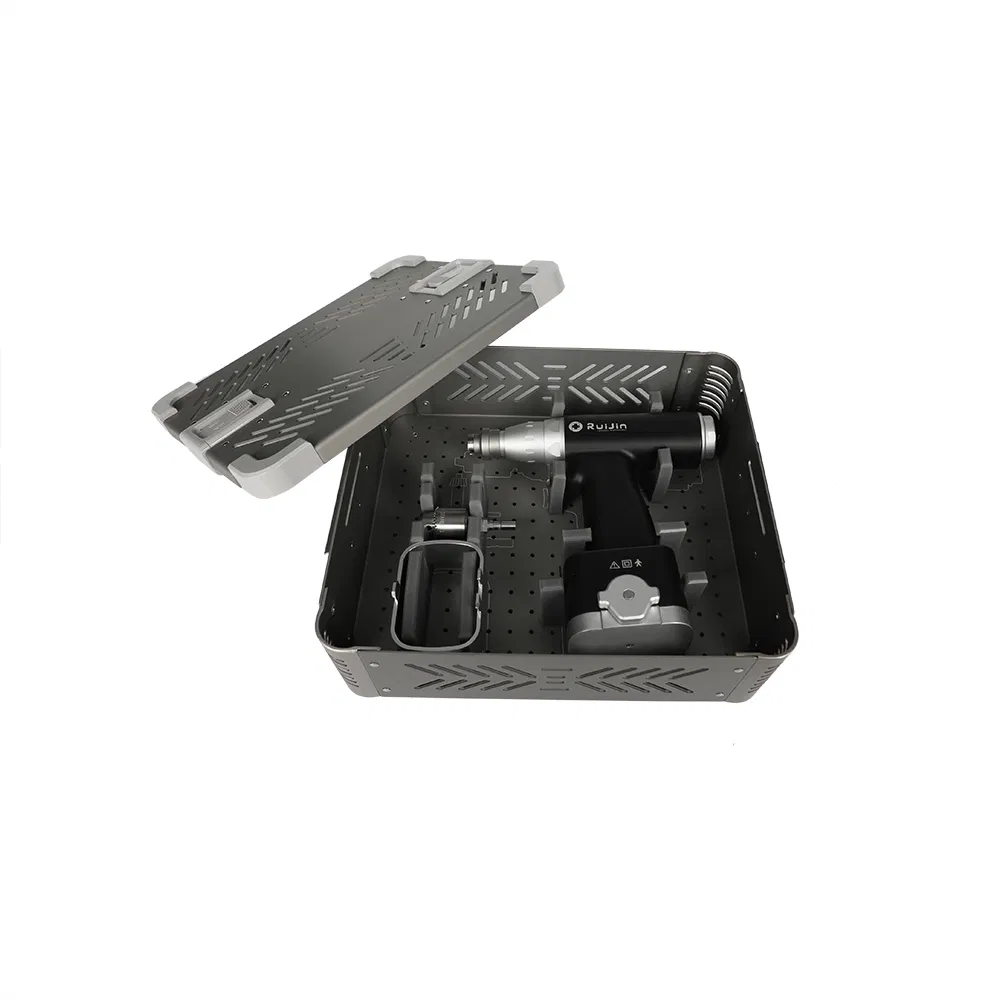

Special sterilization tray (Optional)

Quality Certification

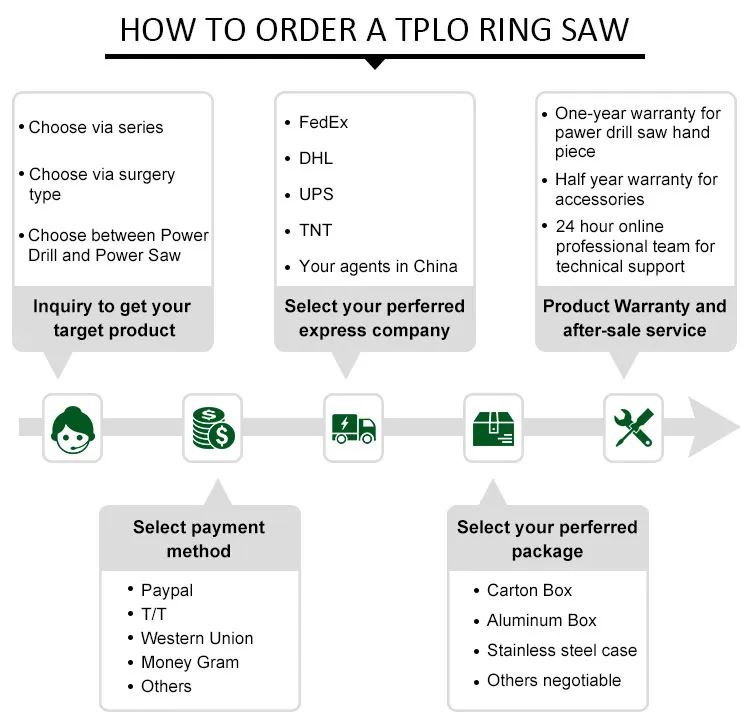

Ordering Process & Attention

1. Do not dismantle the device; please contact professional after-sales for service.
2. Compatible with electricity sources from 110V/60Hz to 220V/50Hz.
3. Remove the battery when not in use to avoid automatic discharge and shorten life.
4. The battery cannot be disinfected; ensure the battery compartment is dry after sterilization.
5. Maintain sterilization temperature below 135°C to protect the motor from damage.

1. Do not dismantle the device; please contact professional after-sales for service.

2. Compatible with electricity sources from 110V/60Hz to 220V/50Hz.

3. Remove the battery when not in use to avoid automatic discharge and shorten life.

4. The battery cannot be disinfected; ensure the battery compartment is dry after sterilization.

5. Maintain sterilization temperature below 135°C to protect the motor from damage.

Frequently Asked Questions

Q1: Can the entire surgical drill be sterilized?

A1: The main unit can be sterilized by high temperature and high pressure up to 135 ºC. However, the battery itself cannot be disinfected and must be removed prior to the process.

Q2: What type of motor is used in this drill?

A2: The device uses a high-quality German brushless motor, ensuring low noise, high stability, and a longer service life compared to traditional motors.

Q3: How many batteries are included in the standard set?

A3: The standard configuration includes two batteries to ensure continuous operation during surgical procedures.

Q4: What is the warranty period for this medical drill?

A4: The product comes with a 2-year warranty for professional peace of mind.

Q5: Is the speed of the drill adjustable?

A5: Yes, the device features variable speed control, allowing surgeons easy selection of power and speed during different stages of an operation.

Q6: What is the typical lead time for shipping?

A6: Orders are typically processed and shipped via door-to-door express courier within 3 days after payment is confirmed.
