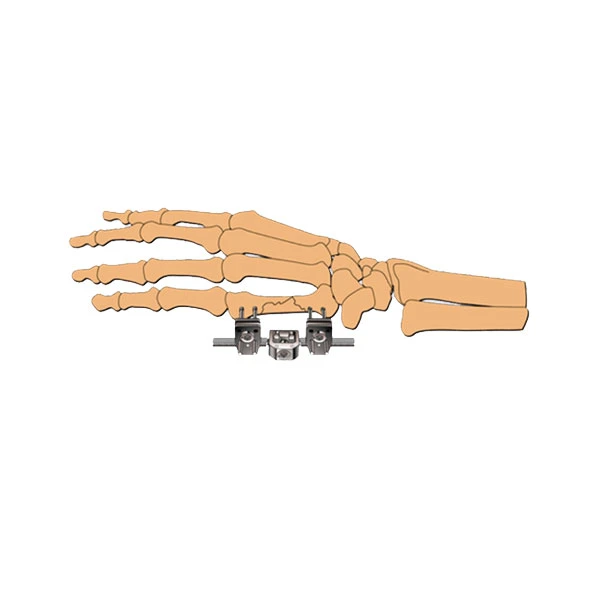

Orthopedic Surgical Mini-Horizontal Axis External Fixator

Customization:	Available
Type:	External Fixation
Application:	Orthopedic

Basic Specifications

Model NO.:

D500 D501 D502 D503

Material:

Steel / Aluminum Alloy

Feature:

Reusable

Certification:

CE, FDA, ISO13485

Group:

Adult

Name:

Orthopedic Mini Horizontal External Fixator

Color:

Black

Application:

Hospital Trauma Operation

HS Code:

90189090

Capacity:

20000 Sets Per Year

Product Overview

Primary Application: Used for patients with fractures of limbs in orthopedic trauma surgery.

Suitable Clinical Situations:

◈ Ordinary open fractures

◈ Contaminated open fractures

◈ Severe comminuted fractures

◈ Fractures with serious soft tissue damage

◈ Temporary fixation of unstable joint ligaments

Code	Specification	Notes
D501	Long 85mm	-
D502	Middle 75mm	-
D503	Short 65mm	-
Schanz Pin Parameters
Diameter: 2.0mm	Specification: Screw length / Thread length

Technical Details:

✔ Material: Aluminum Construction

✔ Surface Finish: Professional Black or Customized

✔ Quality Standard: CE & ISO Certified

Key Advantages

★ Minimal damage to the bone's blood supply.

★ Minimal interference with soft-tissue coverage.

★ Rapid application capability for emergency medical situations.

★ Superior stabilization for open and contaminated fractures.

★ Adjustable fracture reduction and stable fixation without additional surgery.

★ Effective solution for high-infection risk scenarios.

★ Supports bone transport and deformity correction procedures.

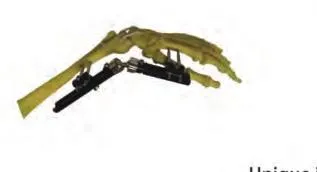

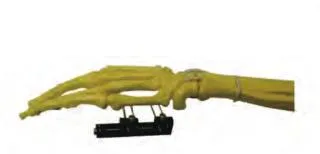

Product Display

Frequently Asked Questions

Q1: What are the primary indications for the Mini Horizontal External Fixator?

It is primarily indicated for open fractures, comminuted fractures, and cases involving severe soft tissue damage where internal fixation may not be suitable.

Q2: What materials are used in this orthopedic device?

The fixator is constructed using high-grade Aluminum Alloy and Steel, ensuring a balance between lightweight handling and structural stability.

Q3: Can the fixator be adjusted after the initial surgery?

Yes, one of the key advantages is that it allows for fracture reduction and stable fixation adjustments without the need for additional invasive surgery.

Q4: Is this medical device reusable?

Yes, the device is designed to be reusable, provided it undergoes proper sterilization and maintenance protocols according to hospital standards.

Q5: Which certifications does this product carry for quality assurance?

This product is fully certified with CE, FDA, and ISO13485, meeting international medical device safety and quality standards.

Q6: What sizes are available for the fixator?

We offer three standard lengths: Long (85mm), Middle (75mm), and Short (65mm) to accommodate different patient needs.
