This system is a brass mixing water unit designed for household applications, integrating a water pump and pressure gauge. It is suitable for cold/hot water mixing, constant-temperature water supply, and underfloor heating mixing systems. The system is constructed with high-precision brass casting, offering corrosion resistance, durability, and customization options for flow rate, pressure, and connection sizes based on user requirements.
| Parameter | Details |
|---|---|
| Medium | Water |
| Water inlet temperature | 0-95ºC |
| Output temperature | 35-55ºC |
| Use area | 200m2 |
| Temperature control accuracy | ±2ºC |
| Head lift | 6m |
| Center distance | 210mm |
| Maximum working pressure | 1Mpa |
| Max power | 100W |
| Product Name | Hot Selling Automatic control system of Brass Manifolds |
| Model | HB-M08208 |
| Size | 1" |
| Material | Brass body with surface nickel plated |
| Connection End | Threaded |
| Certificate | SGS, ISO9001, ISO14001, CE |
| Valve guarantee | 3 Years |

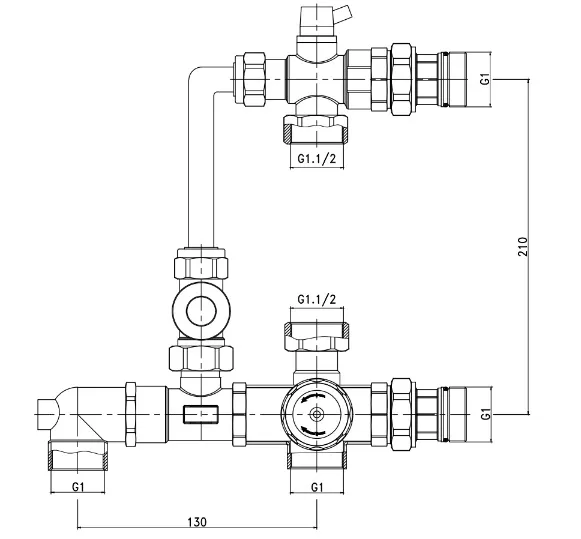

| DN | SIZE | L(mm) | H(mm) | D(mm) |
|---|---|---|---|---|
| 25 | 1'' | 60 | 210 | 1'' ,1-1/2'', 1-1/4 |

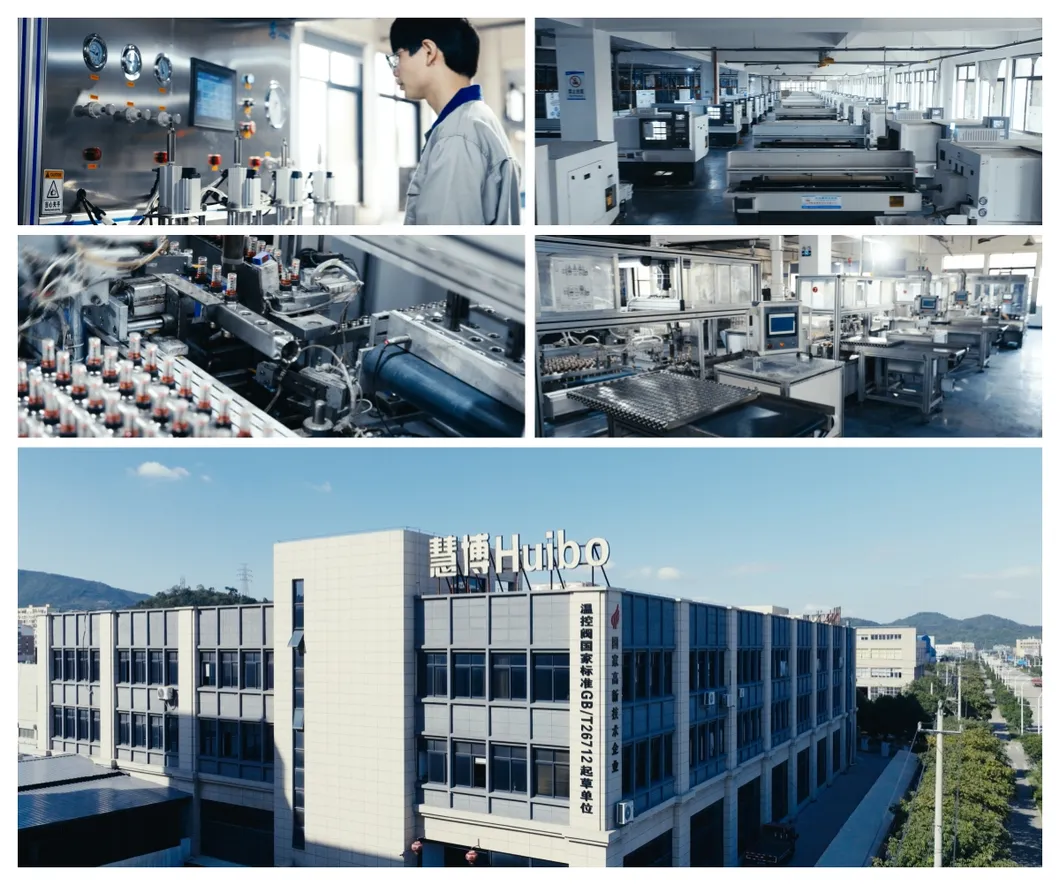

A leading manufacturer and supplier in the valve industry with more than 25 years of experience, specialized in HVAC system parts and brass valve fields. With a dedicated factory located in the brass valve manufacturing hub, the company integrates industry resources to provide strong competitive solutions. As a top manufacturer of high-quality HVAC parts, the product range covers brass manifolds, thermostatic radiator valves, manual radiator valves, motorized valves, and more than 2000 varieties across 40 series.
