Basic Information
Heating Type
Water Heating Systems
Surface
Sand Blast & Nickel Plated
Temperature
-10°C to 100°C
Key Words
Brass Manifold Valve
Production Capacity
8000 PCS/Day

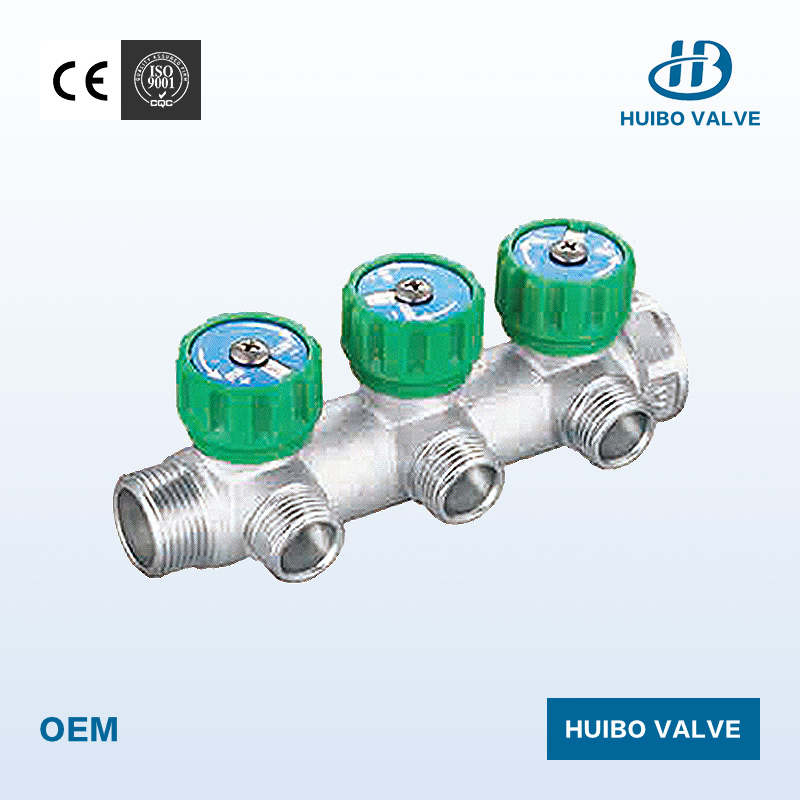

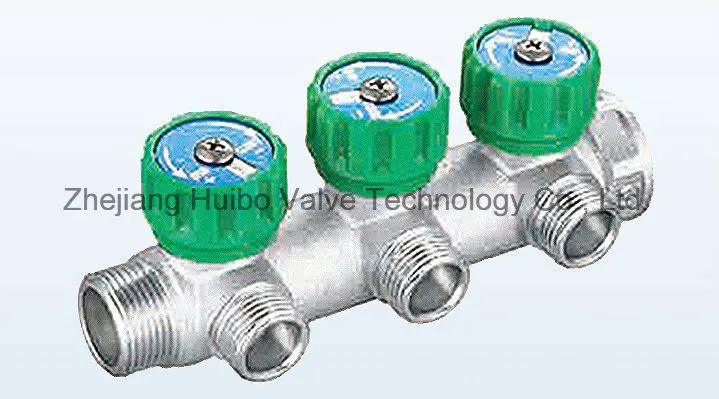

Product Description
Technical Reference
- Body: Forged brass body
- Surface: Sand blast and nickel plated
- Nominal pressure: Max 16 bar
- Temperature range: -10ºC to 100ºC
- Thread standard: ISO228
- Available size: ¾" x ½"
Dimensions & Specifications
| WAYS |
SIZE |
G |
A |
B |
C |
D |
F |
L |
| 2 | 3/4"x1/2 | 3/4" | 105 | 40.5 | 45 | 29.5 | 34.5 | 14 |
| 3 | 3/4"x1/2 | 3/4" | 150 | 40.5 | 45 | 29.5 | 34.5 | 14 |
| 4 | 3/4"x1/2 | 3/4" | 195 | 40.5 | 45 | 29.5 | 34.5 | 14 |
| 5 | 3/4"x1/2 | 3/4" | 240 | 40.5 | 45 | 29.5 | 34.5 | 14 |
| Product Name | Brass Manifold valve |
| Model | HB-M101002 |
| Working Pressure | 16 bar |
| Functions | Industrial, Kitchen, Home, Commercial, Garden and General |
| Valve Guarantee | 10 Years |

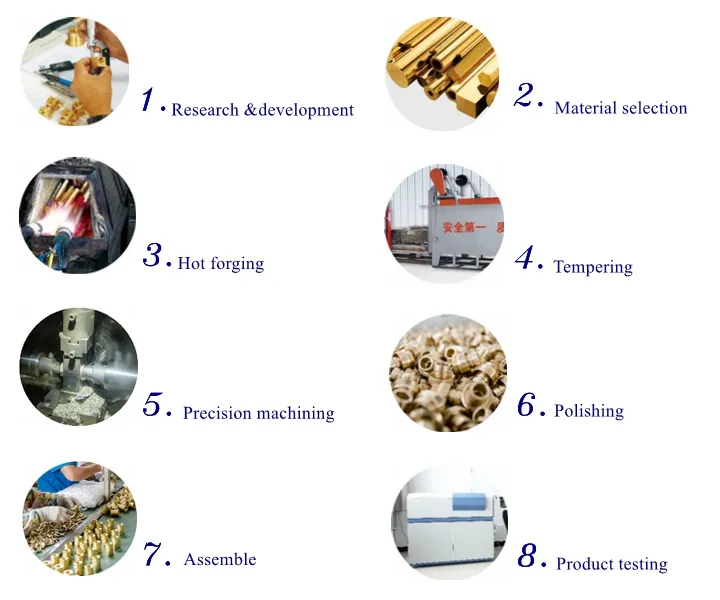

Technological Process

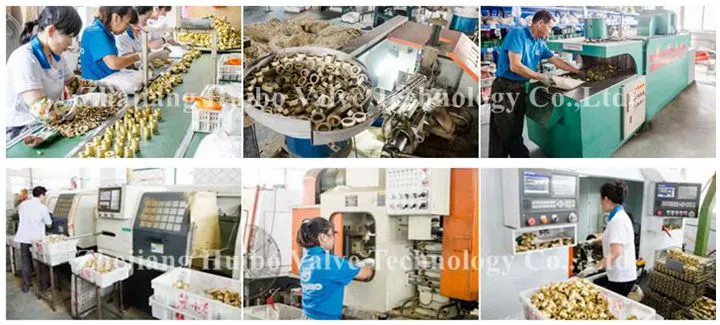

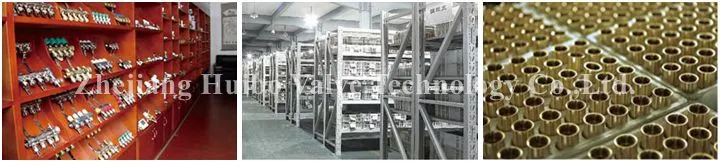

Production Facility
Certificates
Frequently Asked Questions
Can I have a sample before placing the order?
Yes, we would like to provide you samples for testing and checking before quantity purchasing.
What is your MOQ for orders?
Usually 3000 pcs for ordinary products, and 5000 pcs for products requiring a new mold.
How do you proceed with a product order?
Firstly, let us know your requirements. Secondly, we provide a quotation. Thirdly, sample confirmation. Finally, order placement and production arrangement.
What is the maximum pressure and temperature rating?
The brass manifold is designed for a maximum working pressure of 16 bar and a temperature range of -10°C to 100°C.
What materials are used in the construction?
The manifold features a forged brass body with a sand-blasted and nickel-plated surface for enhanced durability.
What is the product warranty period?
We provide a 10-year valve guarantee for our high-quality brass manifolds.
