Basic Specifications
Certification
CE, ISO13485
Operating Principle
Total Hip Replacement
Product Name
Surgical Power Drill
Sterilizing Time
About 20 Mins
Production Capacity
100,000 Pieces Per Year

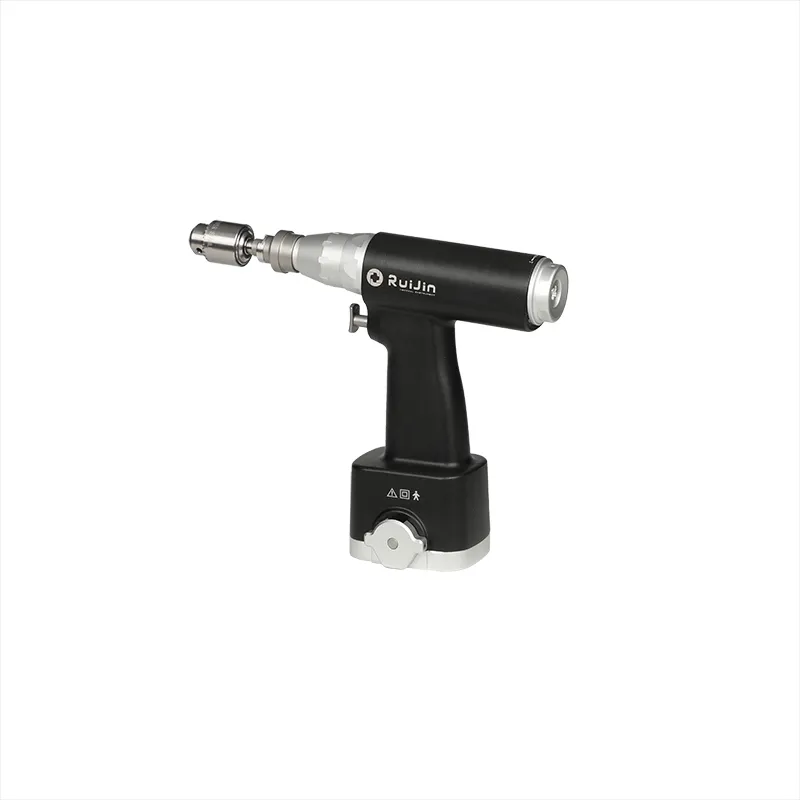

Product Overview
Medical drill tools equipment orthopedic low-speed endoprosthesis total Arthroplasty replacement
This medical instrument series is broadly applied in traumatic surgery, joint surgery, orthopedic surgery, and neurosurgery operations. It can be used with K-wires, intermediary interlocking nail surgery, or arthroscopic surgery. The whole unit is autoclavable, and the imported motor ensures low noise, high speed, high proper alignment, and long service life. It is compatible with various flexible reamers and chucks during the surgical process.
Technical Data
| Working Voltage | 14.4V |
| Output Power | 130W |
| Unit Rise in Temperature | ≤ 25ºC |
| Input Voltage | AC 220V, 50Hz |
| Output Voltage | 14.4V, 900mA |
| Charging Time | 3 Hours |
| Speed | 300r/min |
| Non-loaded Noise | 63dB(A) |
| Torque | 33,000gcm |
Product Technical Merits
- Designed specifically for joint operations.
- Low speed with great torque, compatible with acetabulum burnishing and medullary cavity expanding tools.
- Main unit can be sterilized by high temperature and high pressure up to 135ºC.
- Carbonless motor provides increased power and easy selection during operation.
- Scientific balance technology reduces vibration and enhances handpiece control.
- High concentricity ensures precision for polishing acetabulum in HIP operations.

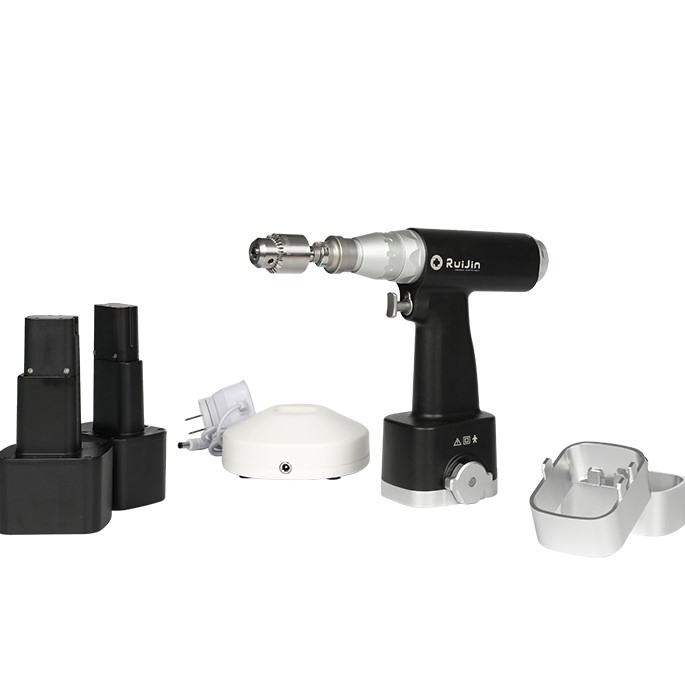

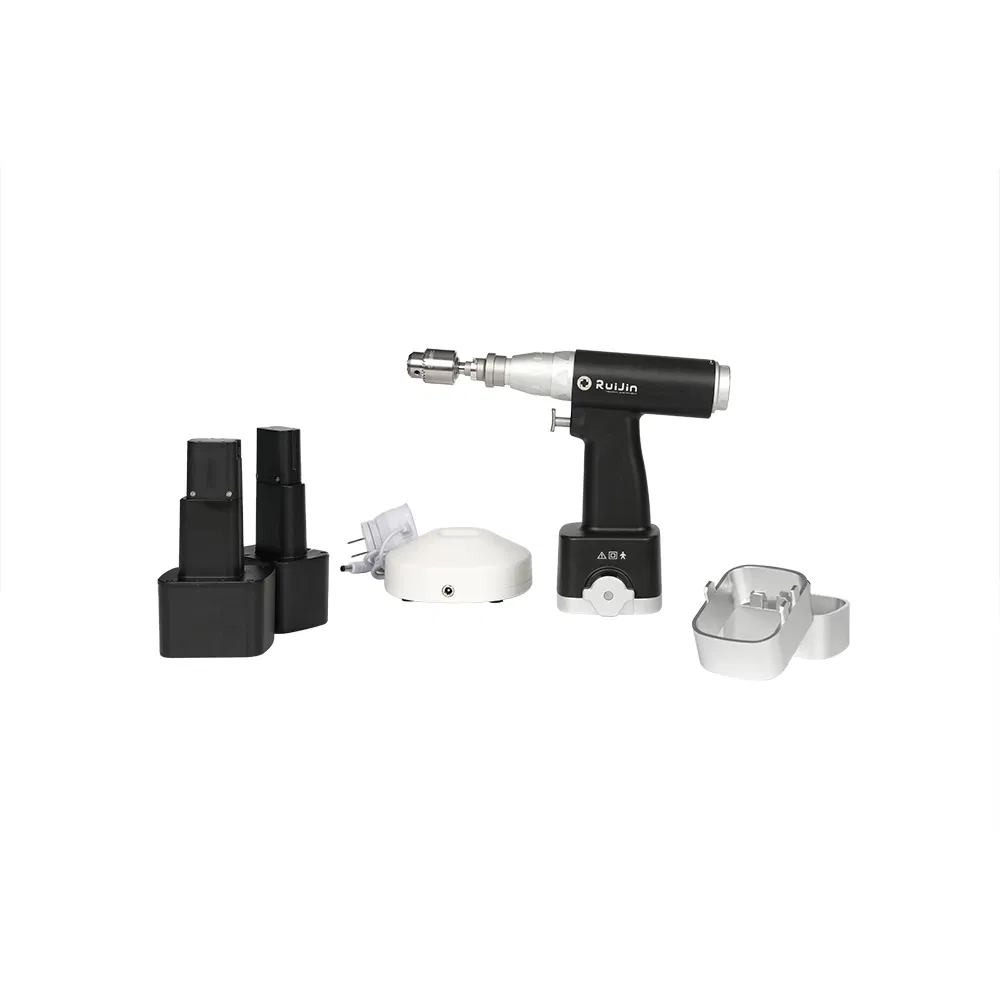

Standard Configuration
One handpiece
One charger
Two batteries
One sterilizing channel
One drill chuck

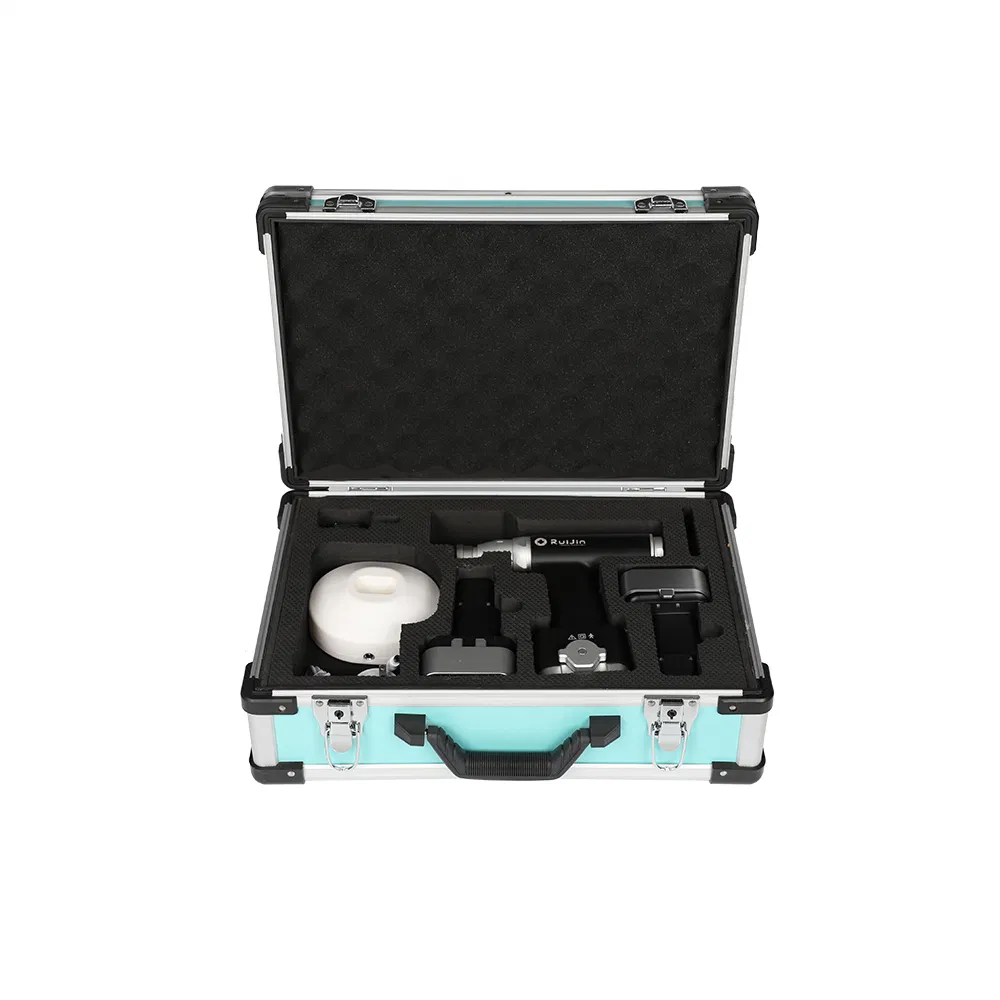

One aluminum alloy box
Product Display

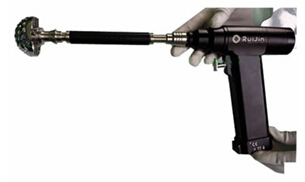

Hip joint drill with various optional adaptors: Stryker, AO, Hudson, Synthes, etc.

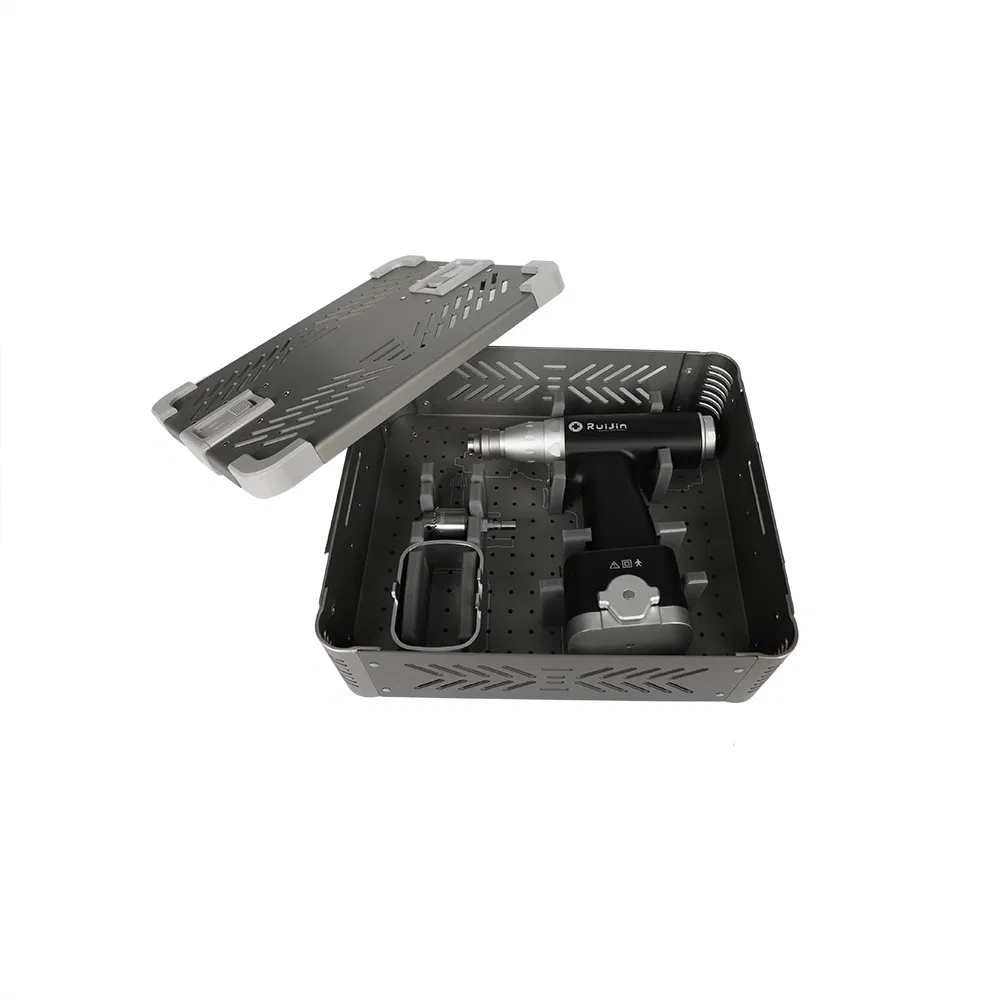

Specialized sterilization tray and high-precision components.

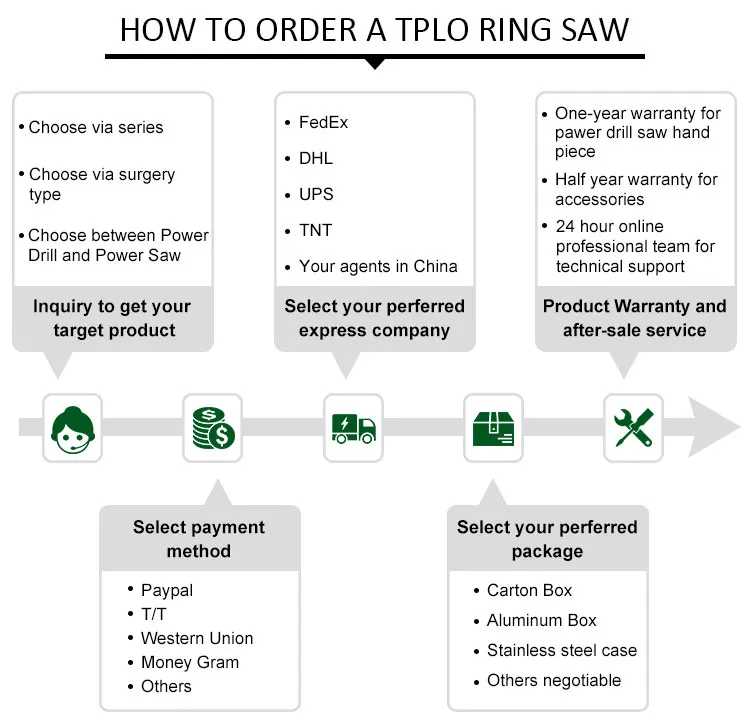

Ordering Process
Attention & Notes
- Sterilization temperature must be lower than 135ºC to prevent motor damage.
- The battery must be removed from the handpiece when not in use to avoid automatic discharge.
- The battery cannot be disinfected; ensure the battery compartment is dry after sterilization.
- Clean drill bits and saw blades with a purifier and keep them dry post-operation.
- Compatible with 110V/60Hz - 220V/50Hz power sources.
Frequently Asked Questions
What surgeries is this drill suitable for?
The ND-3511 is specifically designed for total hip arthroplasty, but it is also widely used in trauma, joint, orthopedic, and neurosurgery operations.
Can the entire surgical drill be sterilized?
The main unit can be sterilized using high temperature and high pressure up to 135ºC. However, the battery itself cannot be sterilized and must be handled separately.
What are the advantages of the brushless motor?
The brushless motor ensures low noise during surgery, provides high speed and torque, and offers a longer service life compared to traditional motors.
How many batteries are included in the standard set?
The standard configuration includes two high-performance batteries and one charger to ensure continuous operation during surgical procedures.
What is the charging time for the batteries?
The batteries require approximately 3 hours for a full charge, providing 14.4V of reliable working voltage.
Is there a warranty for this equipment?
Yes, the product comes with a 2-year warranty, reflecting our commitment to professional manufacturing and quality assurance.
