Maxillofacial Straight 6 Holes Locking Mini Plate for Surgical Implants Orthopedic Surgery
Maxillofacial Straight 6 Holes Locking Mini Plate for Surgical Implants Orthopedic Surgery
Maxillofacial Straight 6 Holes Locking Mini Plate for Surgical Implants Orthopedic Surgery
Maxillofacial Straight 6 Holes Locking Mini Plate for Surgical Implants Orthopedic Surgery
Maxillofacial Straight 6 Holes Locking Mini Plate for Surgical Implants Orthopedic Surgery
1 / 5
Maxillofacial Straight 6 Holes Locking Mini Plate for Surgical Implants Orthopedic Surgery
Maxillofacial Straight 6 Holes Locking Mini Plate for Surgical Implants Orthopedic Surgery
Maxillofacial Straight 6 Holes Locking Mini Plate for Surgical Implants Orthopedic Surgery
Maxillofacial Straight 6 Holes Locking Mini Plate for Surgical Implants Orthopedic Surgery
Maxillofacial Straight 6 Holes Locking Mini Plate for Surgical Implants Orthopedic Surgery

Maxillofacial Straight 6 Holes Locking Mini Plate for Surgical Implants Orthopedic Surgery

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Information

Model NO.
TY-OI801
Material
Titanium
Feature
Disposable
Certification
CE, ISO13485
Group
Adult
Properties
Implant Materials & Artificial Organs
Classification
Class III
Warranty
One Year
After-Sale Service
Online Technical Support
Package
Sterile/Non-Sterile Package
HS Code
9021100000
Production Capacity
50000 Sets/Year
★

Product Introduction & Features

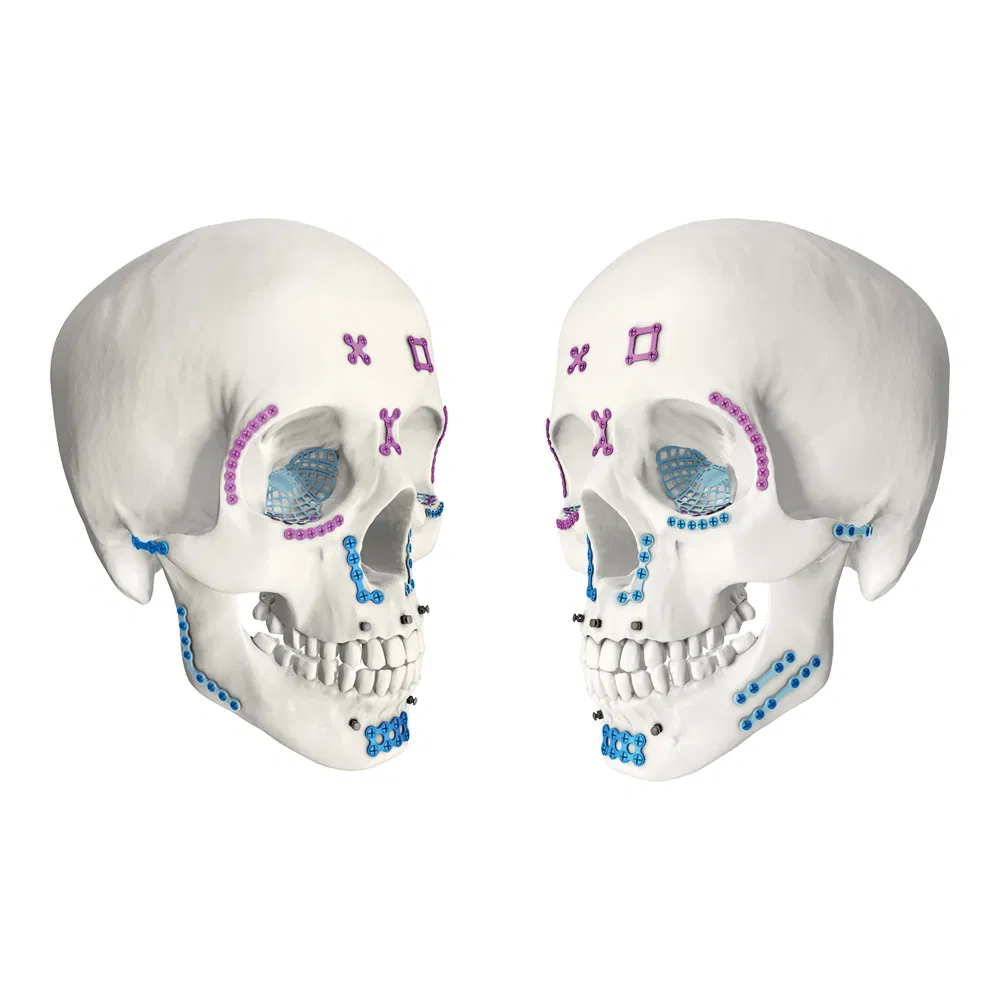

Maxillofacial Straight Locking Mini Plate
Maxillofacial Matching Screws
  • Locking maxillofacial micro and mini plate can be used reversibly.
  • Locking mechanism: squeeze locking technology.
  • Versatile Hole Design: One hole selects two kinds of screw (locking and non-locking), allowing for free collocation to meet diverse clinical demands.
  • Premium Raw Material: Adopt special customized German ZAPP pure titanium, ensuring excellent biocompatibility and uniform grain size.
  • Imaging Compatibility: Does not affect MRI or CT examinations.
  • Low Profile Design: Concave plate holes allow screws to combine closely, reducing soft tissue discomfort.
  • Soft Tissue Protection: Smooth bone plate edges minimize stimulation to surrounding tissues.
⚙

Matching Components

Matching Screws:

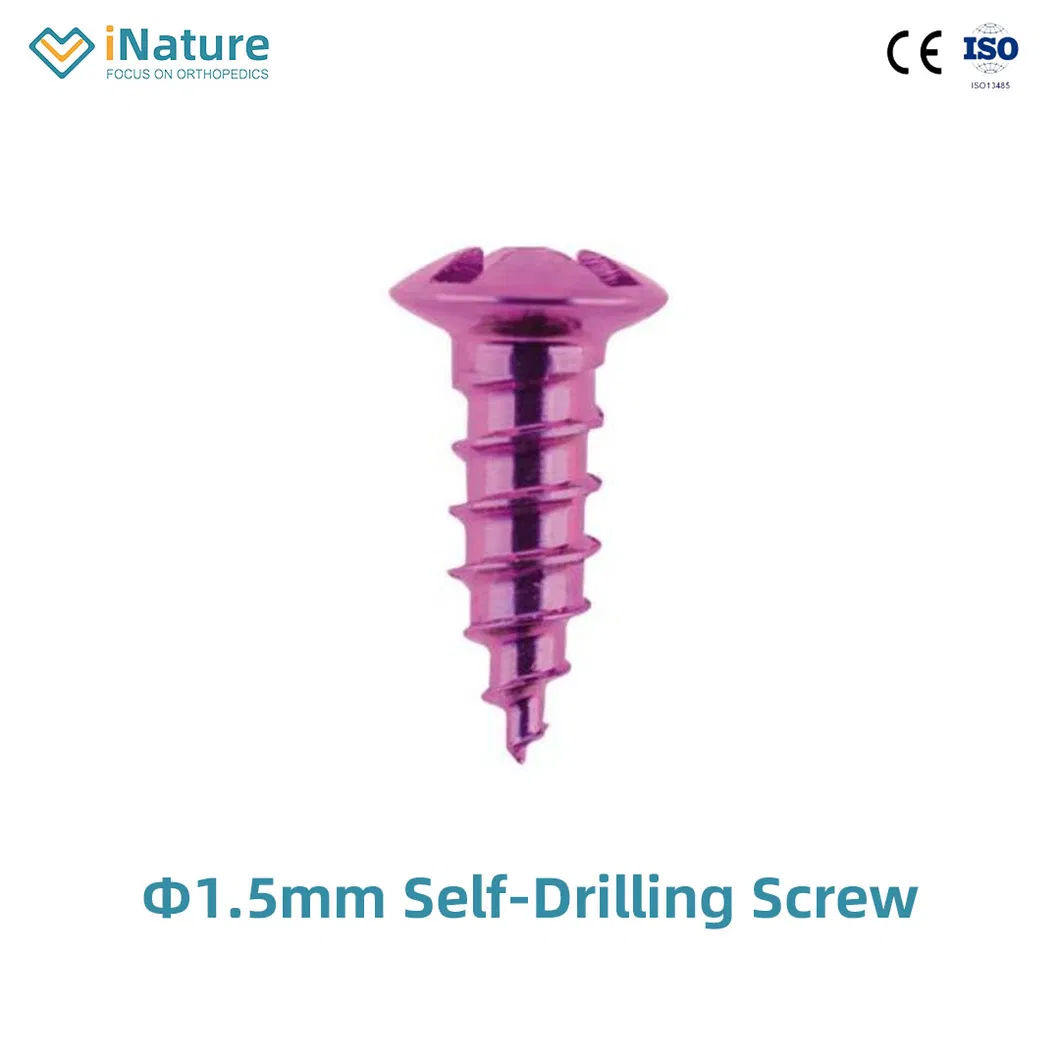

  • φ1.5mm self-drilling screw
  • φ1.5mm self-tapping screw
  • φ1.5mm locking screw

Matching Instruments:

  • Medical drill bit φ1.1*8.5*48mm
  • Cross head screw driver: SW0.5*2.8*95mm
  • Straight quick coupling handle
📋

Specifications

Model Specification
Maxillofacial Micro Locking X-Plate 4 holes, 0.6mm, 14mm
Maxillofacial Micro Locking Rectangular Plate 4 holes, 0.6mm, 14*14mm
Maxillofacial Micro Locking Straight bridge Plate 4 holes, 0.6mm, 20mm
Maxillofacial Micro Locking Straight Plate 6-14 holes, 0.6mm, 24-56mm
Maxillofacial Micro Locking Arc Plate 6-14 holes, 0.6mm, 24-49mm
Maxillofacial Micro Locking 110°L-plate 4-5 holes, 0.6mm, 16-20mm
Maxillofacial Micro Locking 90°L-plate 4 holes, 0.6mm, 16mm
Maxillofacial Micro Locking Y-plate 6-7 holes, 0.6mm, 17-28mm

*All prices are for reference only. Exact price will be based on the latest quotation.

Surgical Implant View 1
Surgical Implant View 2
Surgical Implant View 3
Comprehensive Product Specifications Chart
?

Frequently Asked Questions

What is the material of the maxillofacial plates?
The plates are manufactured using high-quality German ZAPP pure titanium, which provides excellent biocompatibility and strength for surgical implants.
Are these titanium plates MRI/CT compatible?
Yes, the pure titanium material is non-magnetic and does not interfere with MRI or CT examinations post-surgery.
Can I use both locking and non-locking screws with the same plate?
Yes, the unique hole design allows for the free collocation of both locking and non-locking screws in the same plate to suit specific clinical needs.
What screw diameter is compatible with these mini plates?
These plates are designed to be used with φ1.5mm self-drilling, self-tapping, or locking screws.
How are the products packaged?
We offer both sterile and non-sterile packaging options depending on your surgical requirements.
What is the advantage of the "squeeze locking" technology?
Squeeze locking technology provides a secure and stable mechanism for fixation, ensuring the plate and screw remain tightly integrated under physiological loads.
