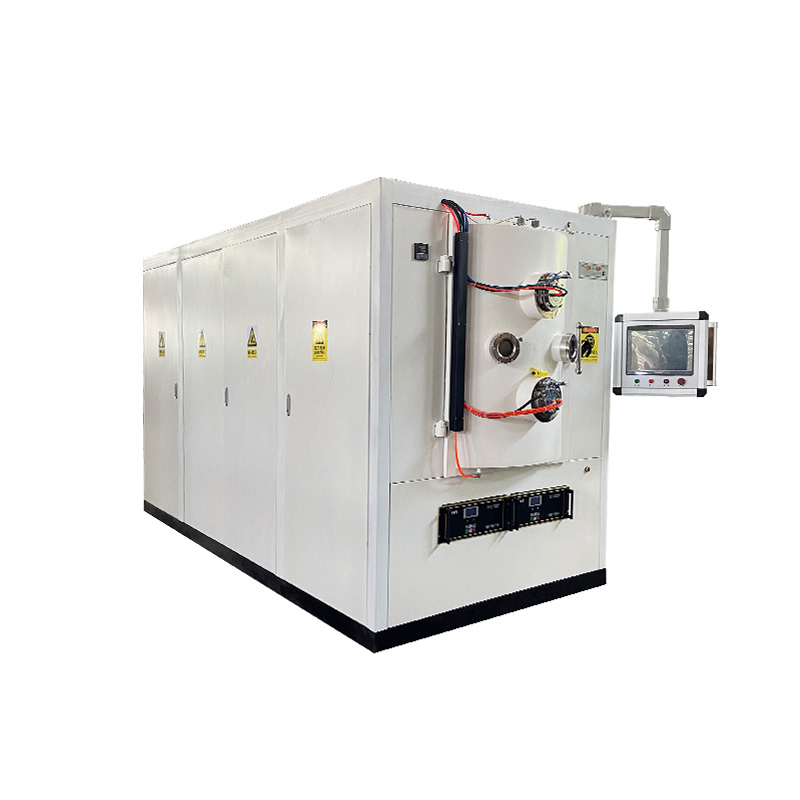

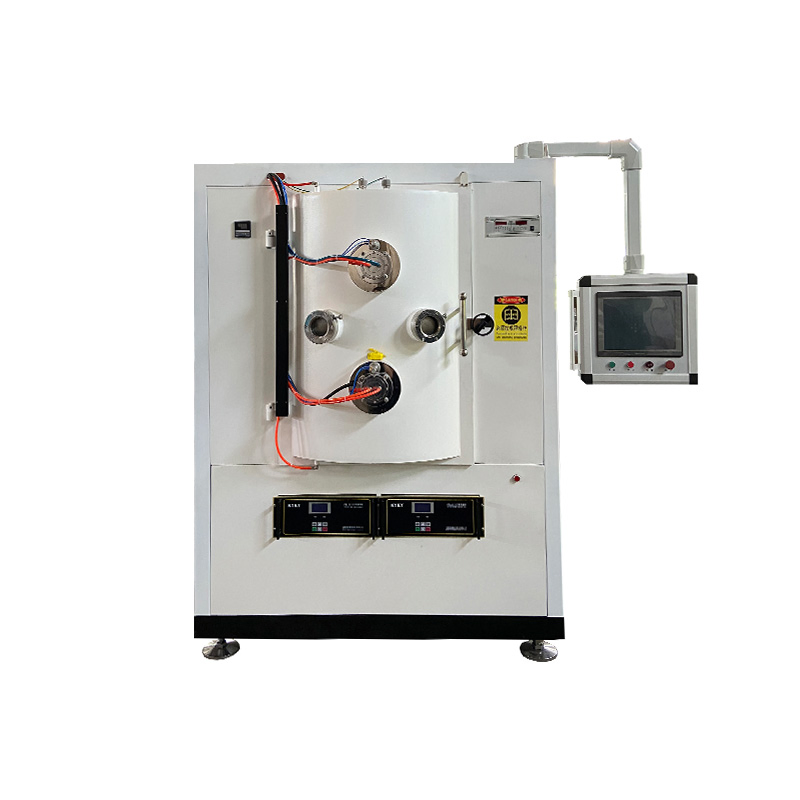

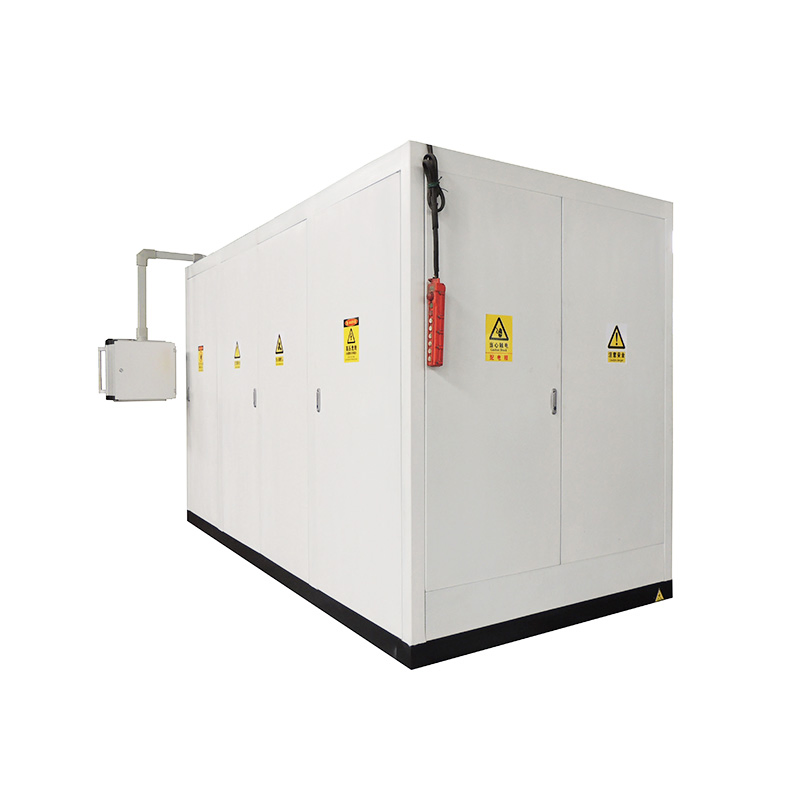

Plasma Coating Machine Titanium Nitride Coating Equipment PVD Multi-Arc Ion Plating System is a high-tech environmental friendly product for metal, glass and surface coating. It significantly improves workpiece hardness, wear resistance, and corrosion resistance.
The ARC series, based on advanced arc deposition technology, is the most suitable coating system for producing PVD hard coatings on metal tools, molds, and dies.
| Parameter | Details |
|---|---|
| Model | ARC series |
| Vacuum Chamber | SUS304, φ600mm-1200×600-1200mm (H) |
| Substrate Dome Size | Customized to requirements |
| Rotation Speed | 10 rpm to 50 rpm (Variable) |
| Arc Evaporation Source | 2 to 16 sets |
| Vacuum System | Roughing Pump + Diffusion/Turbo Pump |
| Ultimate Pressure | 5.0×10⁻⁴ Pa or lower |
| Pump Down Rate | 25 minutes (to 5.0×10⁻³ Pa) |
| Substrate Heater | Up to 550°C (Max) |
| Layout Dimensions | Approx. 5000mm (W) × 6500mm (D) × 3500mm (H) |
| Power Requirements | 3-phase, 380V, 50/60Hz, 100-180kVA |
| Cooling Water Flow | 140 L/min or greater |
| Gross Weight | Approx. 8500kg |

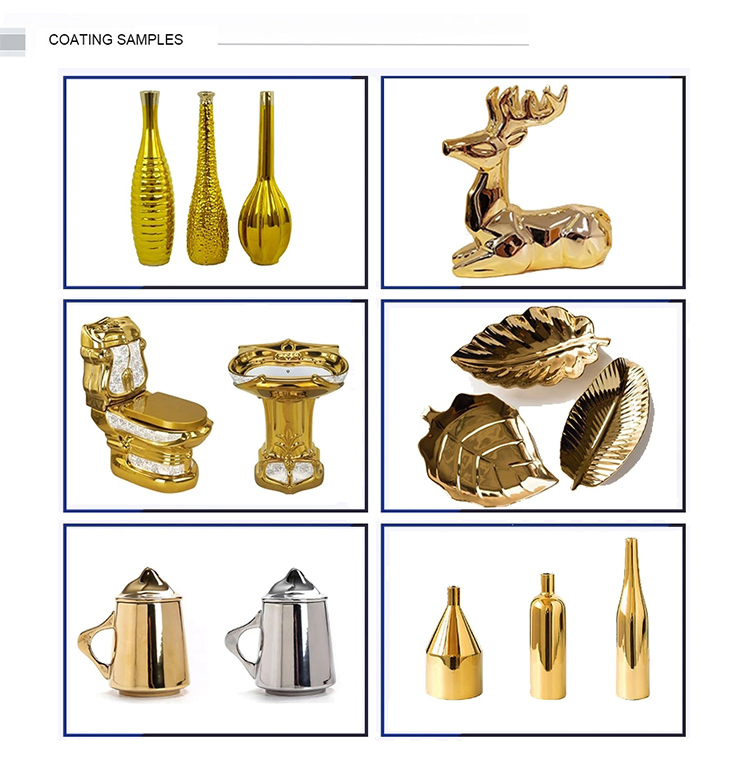

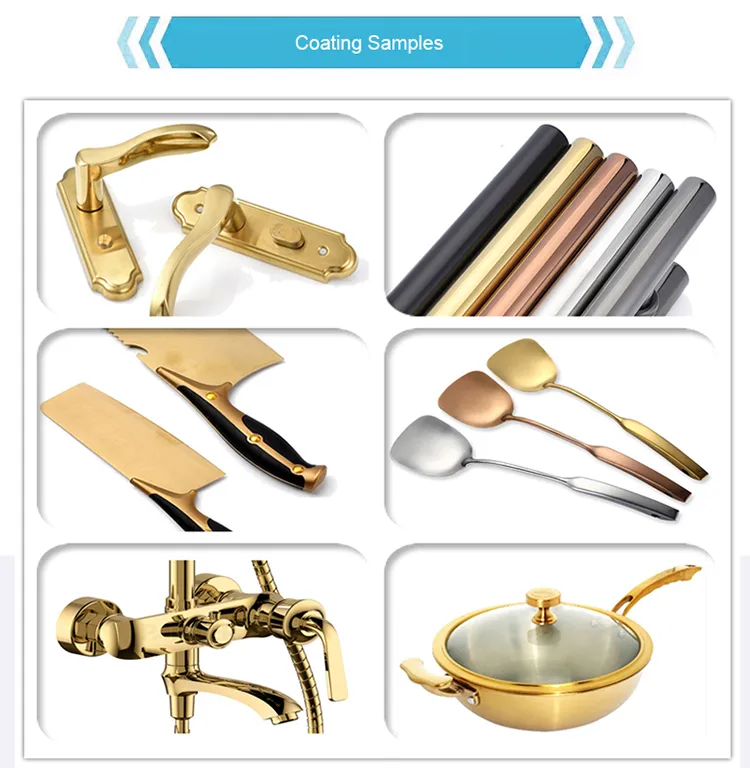

This system is widely used across multiple industries for surface treatment and functional hard coatings:
To determine the best suitable PVD coating configuration, consider the following technical factors:
