Model NO.

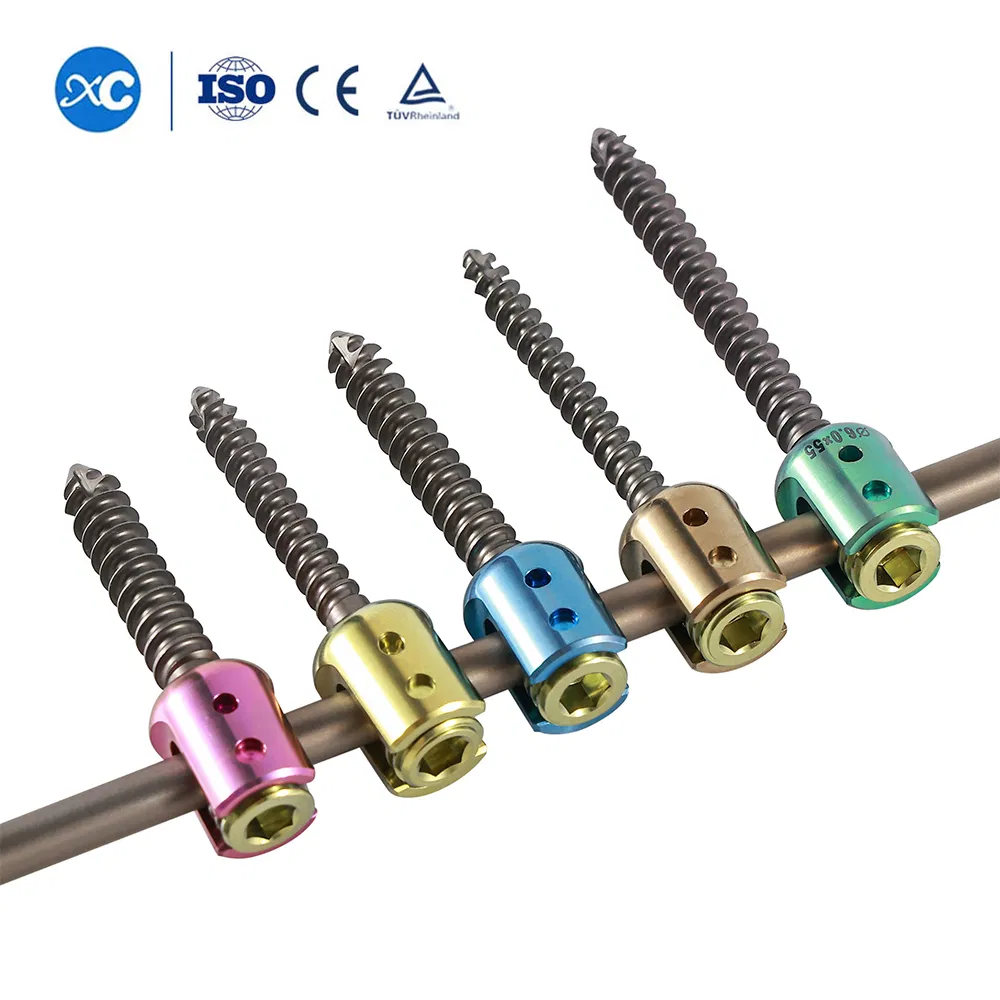

6.0 Spinal Pedicle Screw System
Quality Guarantee
One Year
Material
Medical Grade Titanium Alloy
Functional Purpose
Implant Materials & Artificial Organs
Comprehensive Screw Offering 4.0mm-7.5mm
| Screw Types |
Monoaxial Pedicle Screw |
Monoaxial Reduction Screw |
Polyaxial Pedical Screw |
Polyaxial Reduction Screw |
Iliac Pedicle Screw |
| Φ4.5 - Φ7.0mm |
Φ5.0 - Φ7.0mm |
Φ4.5 - Φ7.0mm |
Φ5.0 - Φ6.5mm |
Φ7.5 - Φ8.0mm |
| Lengths: 25-55mm |
Lengths: 30-50mm |
Lengths: 20-55mm |
Lengths: 30-40mm |
Lengths: 65-80mm |
| Available in various diameters and lengths to accommodate specific anatomical requirements. |
| Rod Components |
Titanium Rod Φ6.0 (100-400mm) |
Crosslink (60-80mm) |
Gradient Titanium Rod |
✔ Reliable Fixation:
Multiple curve correction and derotation options with cortical/cancellous threads.
✔ High Performance:

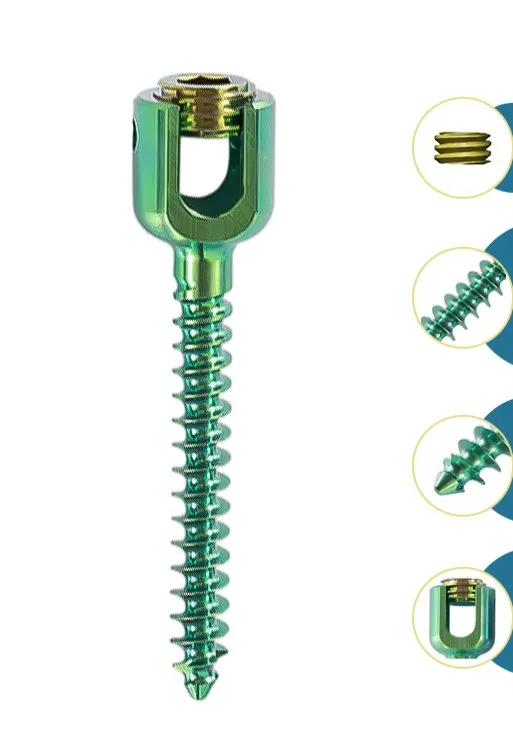

Self-Tapping, Dual-Lead, Optimized Threadform for Fast Delivery and Superior Pull Out Resistance.
✔ Load Handling:
Strong head-body handles heavy loads in kyphotic and scoliotic curves.

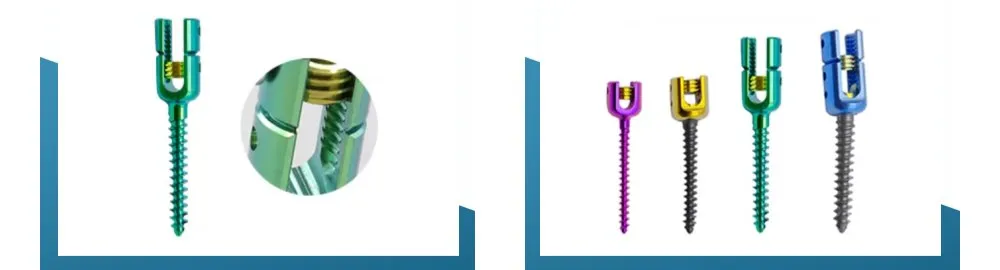

Extended tabs with notches on both sides facilitate tab removal and provide smooth break-off surface.

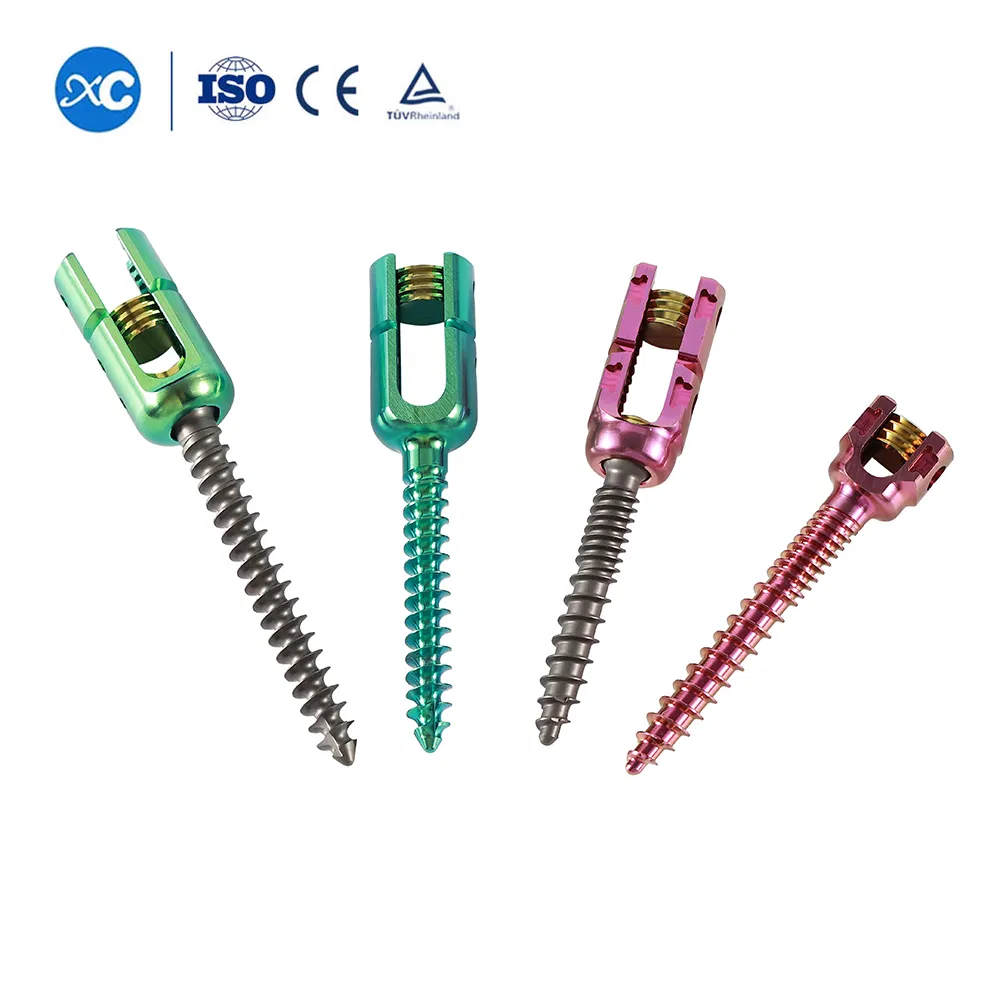

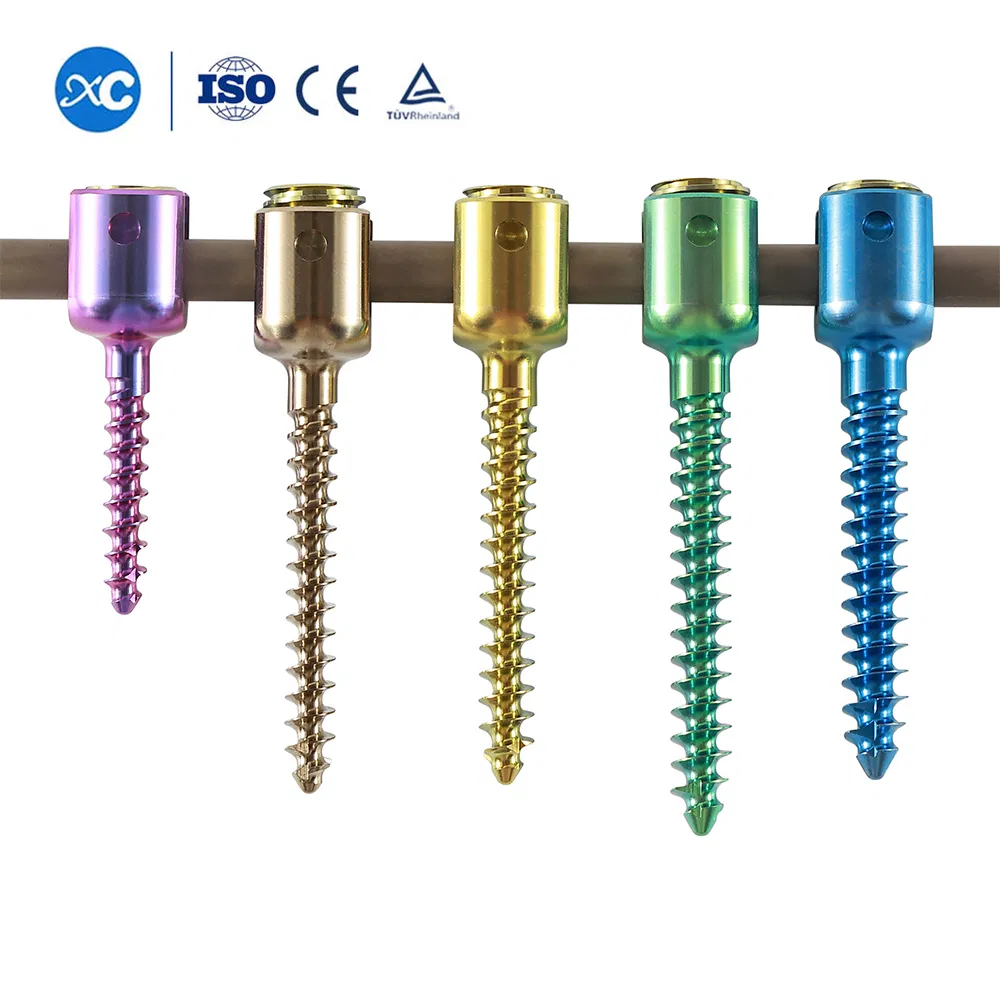

Different screw sizes with different colors for easy identification during operations.

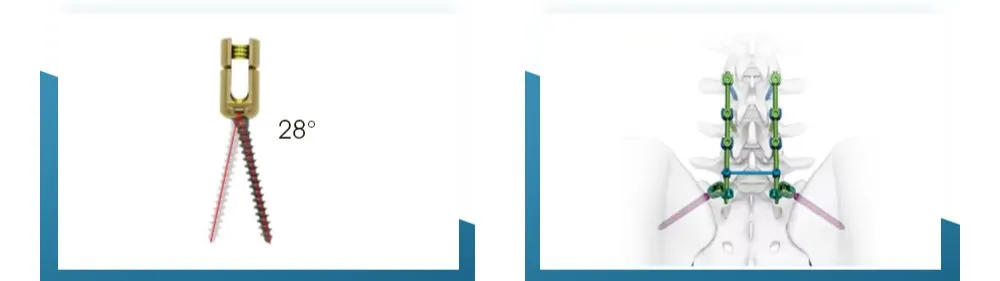

The maximum angle of the polyaxial pedicle screw is 28 degrees to facilitate rod placement.
Provides Iliac Screws in large diameters for sacroiliac reduction and internal fixation.

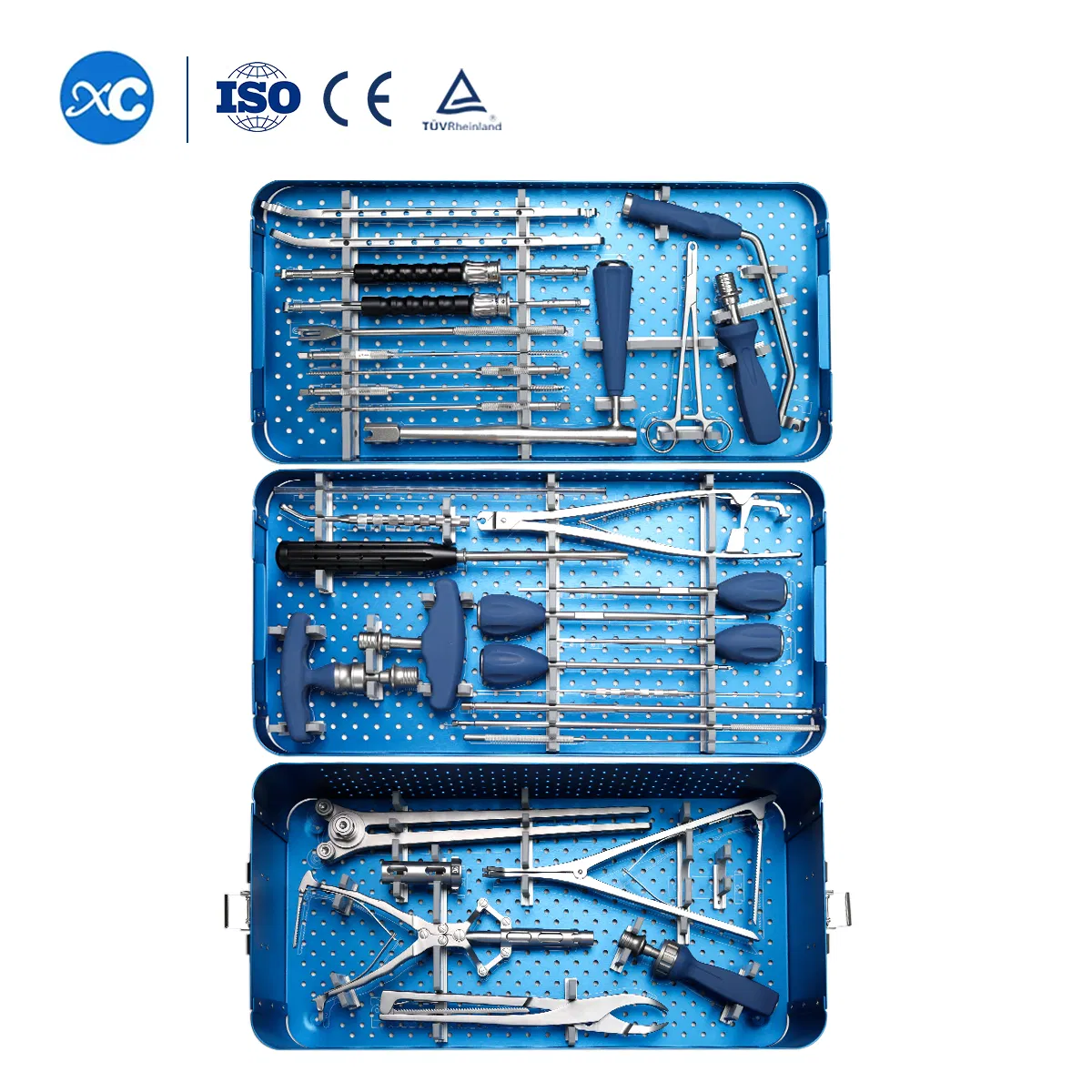

Accessory products: 6.0mm Spinal Pedicle Screw System Instrument Set
Frequently Asked Questions
What materials are used in the 6.0 Spinal Pedicle Screw System?
The system is primarily manufactured from medical-grade Titanium Alloy, which offers excellent biocompatibility, high strength, and MRI compatibility.
What is the advantage of the color-coded screws?
Color coding allows surgeons and nursing staff to quickly and accurately identify different screw diameters during surgery, reducing operation time and potential errors.
What is the range of motion for the polyaxial screws?
The polyaxial pedicle screws provide a maximum angle of 28 degrees, allowing for greater flexibility during rod placement and alignment in complex spinal anatomy.
Are the screws self-tapping?
Yes, the screws feature a self-tapping, dual-lead design with an optimized threadform to ensure fast insertion and superior pull-out resistance.
Does the system include iliac screw options?
Yes, the 6.0 system includes large-diameter iliac screws specifically designed for sacroiliac reduction and internal fixation.
What quality certifications does this orthopedic system hold?
The system is manufactured under strict quality controls and holds ISO13485 and ISO9001 certifications to ensure safety and performance.
