Continuous Feed Blasting System for Steel Plating.
Continuous Feed Blasting System for Steel Plating.
Continuous Feed Blasting System for Steel Plating.
Continuous Feed Blasting System for Steel Plating.
Continuous Feed Blasting System for Steel Plating.
1 / 5
Continuous Feed Blasting System for Steel Plating.
Continuous Feed Blasting System for Steel Plating.
Continuous Feed Blasting System for Steel Plating.
Continuous Feed Blasting System for Steel Plating.
Continuous Feed Blasting System for Steel Plating.

Continuous Feed Blasting System for Steel Plating.

Customization: Available
After-sales Service: 1 Year Warranty and Consult Forever
Warranty: 12 Months From Date of Commissioning Completion.
Send Inquiry

Product Description

Basic Information
Model NO.Q69 Shot Blast Machine
ApplicationSteel Plate Pre-Treatment
FuelElectric
TypeCrawler Abrator
CleanlinessHigh Cleanliness
AutomationAutomatic
CertificationCE, RoHS
Cleaning StandardSA 2.5
Weight5tons - 30tons
Cleaning TypeClean-in-Place (CIP)
Core ComponentsPLC, Engine, Bearing, Gearbox, Motor
Electric PartsSiemens, Omron, Chint...
Product Overview

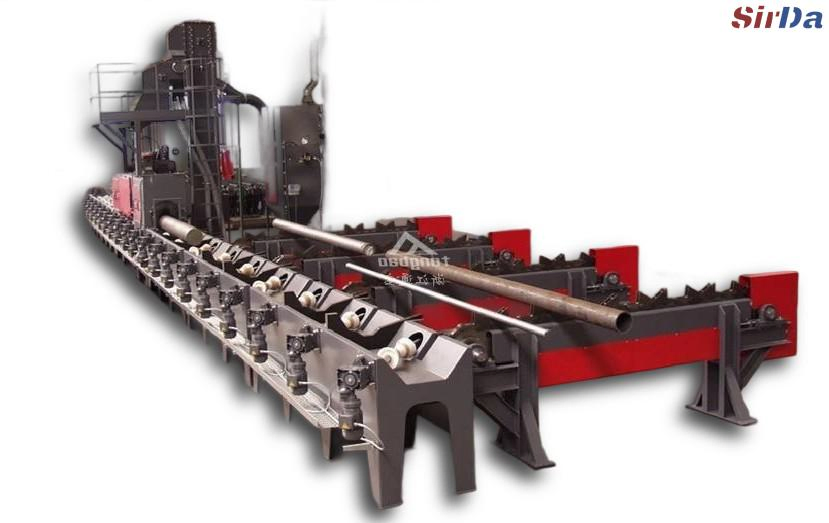

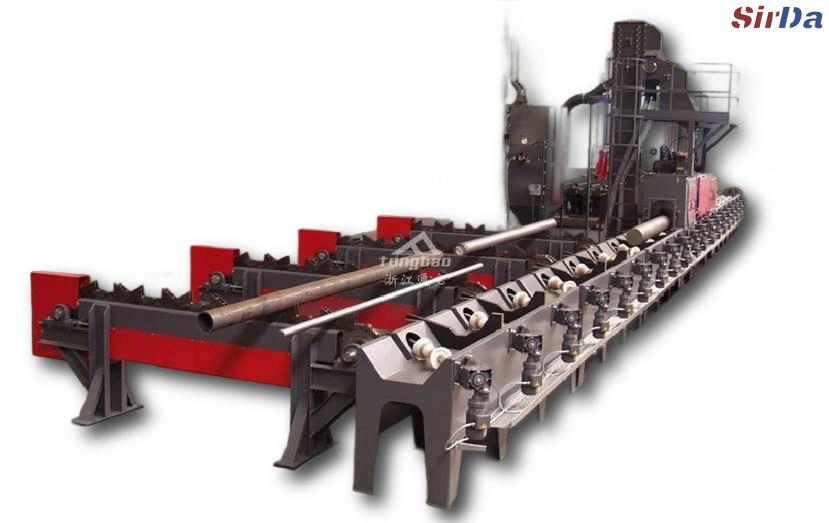

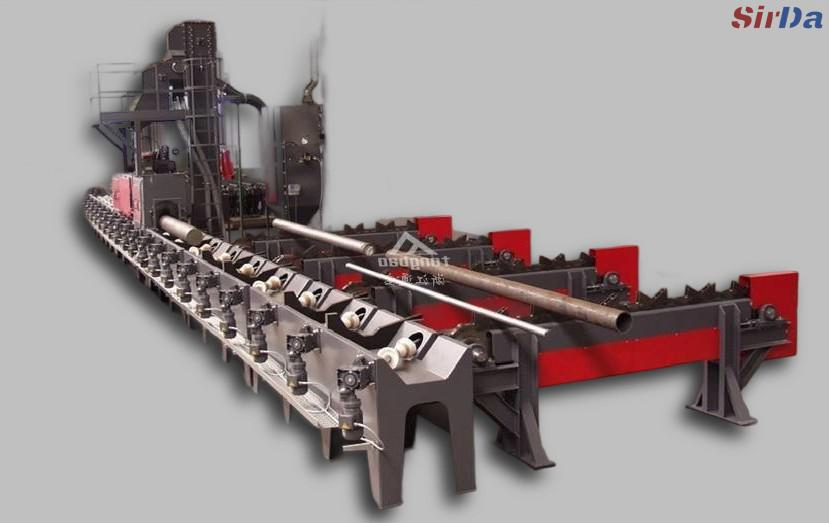

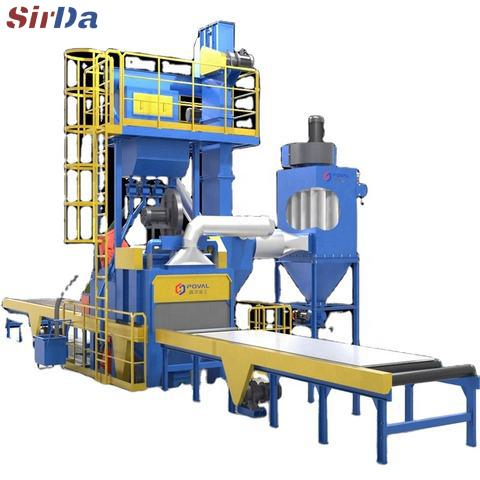

Q69 Series Roller Conveyor Type Shot Blasting Machine

The Q69 series roller conveyor type shot blasting machine is engineered to clean the external surfaces of steel pipes, round bars, drilling rods, and more. It effectively removes rust, oxide layers, and paint films while intensifying the surface durability.

Key Applications:

Removing scale and rust from metal profiles and sheet metal components.
Surface treatment of H-beams, steel plates, profiles, angle steel, and pipes.
Cleaning complex welded structures including top/bottom plates and welded ribs.
Ideal for shipbuilding, automotive, bridges, and heavy machinery industries.
Technical Specifications

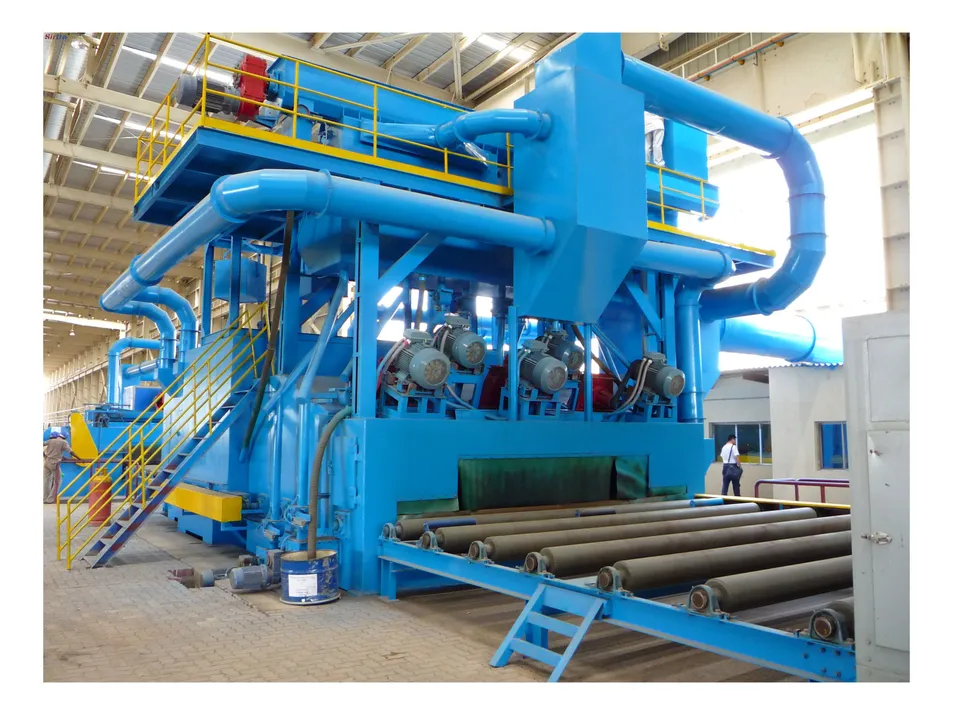

Shot Blast Cabinet

Shot Blast Cabinet System

Blast Chamber Interior

Blast Chamber & Protection

Roller Conveyor System: Includes feed, intermediate, and discharge rollers. It features a load capacity of 2 tons/meter and adjustable speeds ranging from 0.5 to 4 meters/minute. Rollers within the cabinet are protected by special alloy sleeves for a service life exceeding 4,000 hours.

Blast Chamber Composition: Modular design with main and auxiliary chambers. Walls are lined with SPMn13 and 65Mn protective materials for high durability and easy replacement.

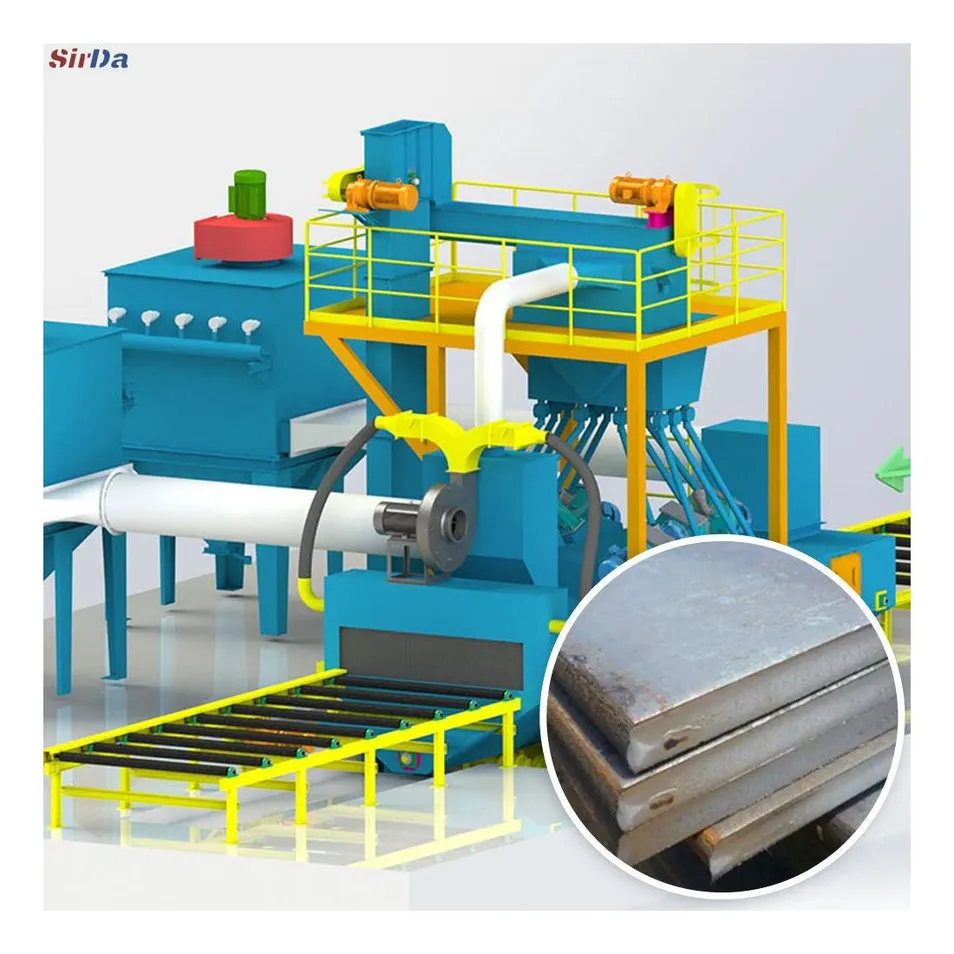

Abrasive Removal Unit

Abrasive Removal Unit

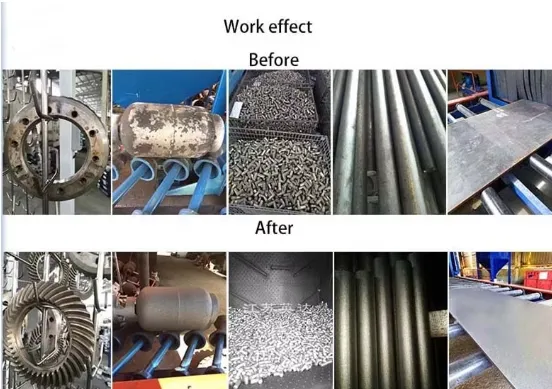

Customization Options

Customizable Configurations

Dust Removal Efficiency: Features a cartridge dust collector system that reduces emission standards to 80 grams per cubic meter with a powerful airflow of 26,000 m³/h.

Product Parameters & Certification

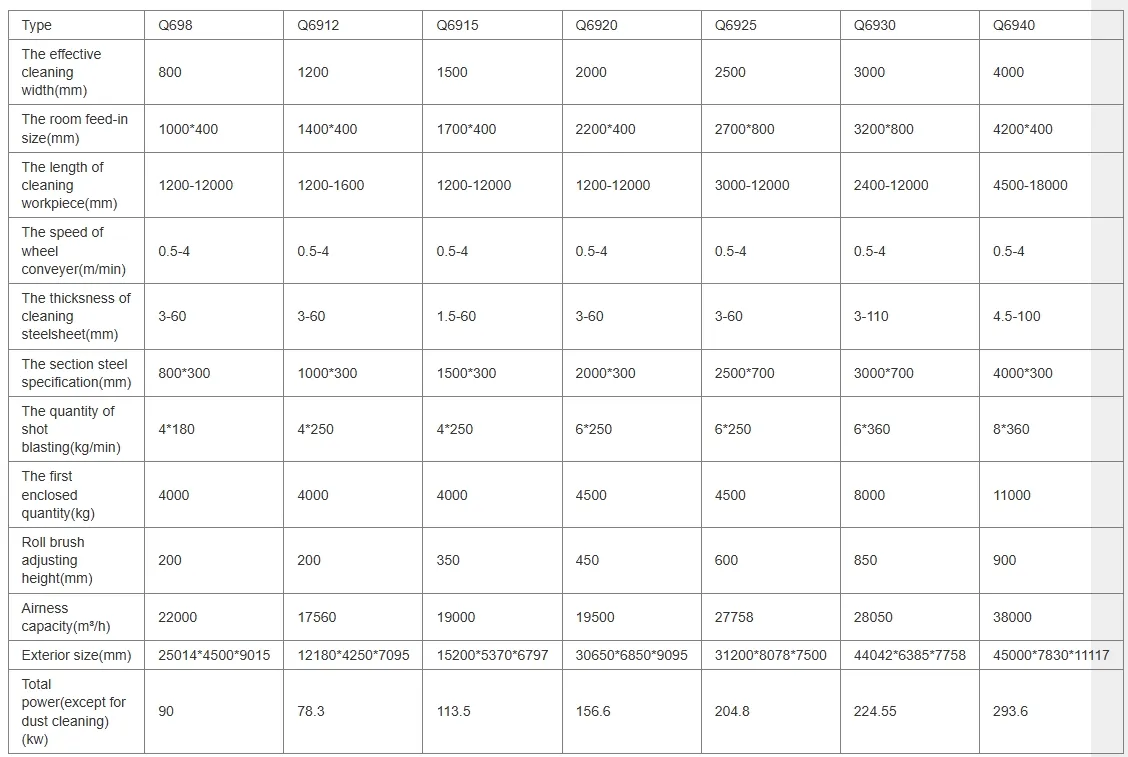

Product Parameters
Certifications 1
Certifications 2
Packaging & Logistics

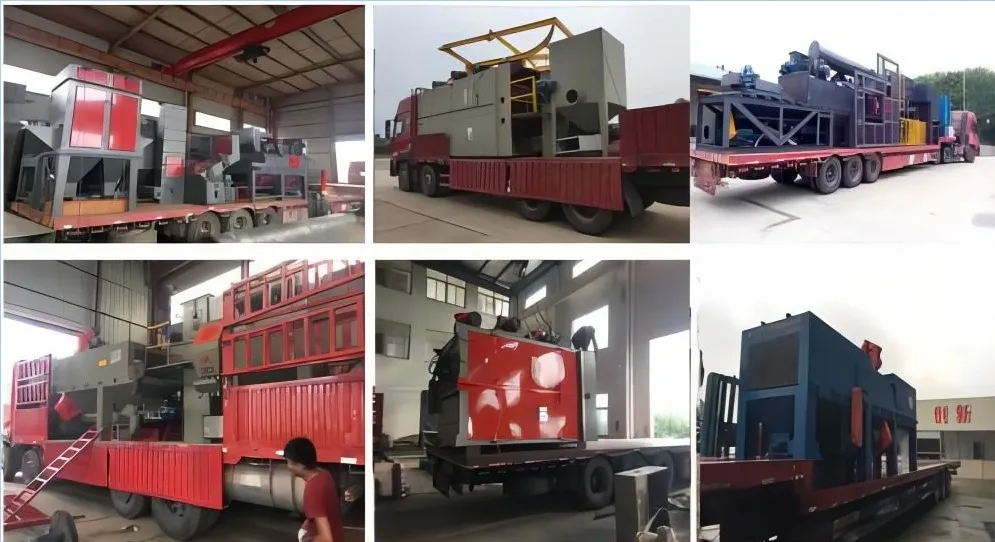

Packaging and Shipping

Packaging Details: 40'HQ container

Departure Port: ShangHai

Lead Time: Approximately 30 days

Frequently Asked Questions
Q1: How long does it take to produce this shot blasting machine? Standard machines may be in stock and available for immediate delivery. Specially designed customized machines typically require 30 to 50 days from engineering design to completion.
Q2: How do you ensure the quality of the machinery? We prioritize quality control throughout the entire process. Every machine is fully assembled and undergoes rigorous testing before it is approved for shipment.
Q3: What is the warranty period for the equipment? We provide a one-year quality guarantee. To ensure longevity and performance, we utilize components from internationally recognized brands.
Q4: Do you provide overseas installation and training? Yes, we offer overseas service where technicians are sent to assist with installation, commissioning, and staff training. The duration varies from 5 days for small machines to up to two months for large systems.
Q5: What documentation is provided with the machine? We supply a comprehensive set of English documents, including foundation drawings, operation manuals, electrical wiring diagrams, and maintenance books.
Q6: Can the machine handle different sizes of steel workpieces? Yes, the system is highly customizable. We can design equipment based on your specific steel dimensions, and the framework can be adjusted manually or automatically for different workpieces.
